English - 7

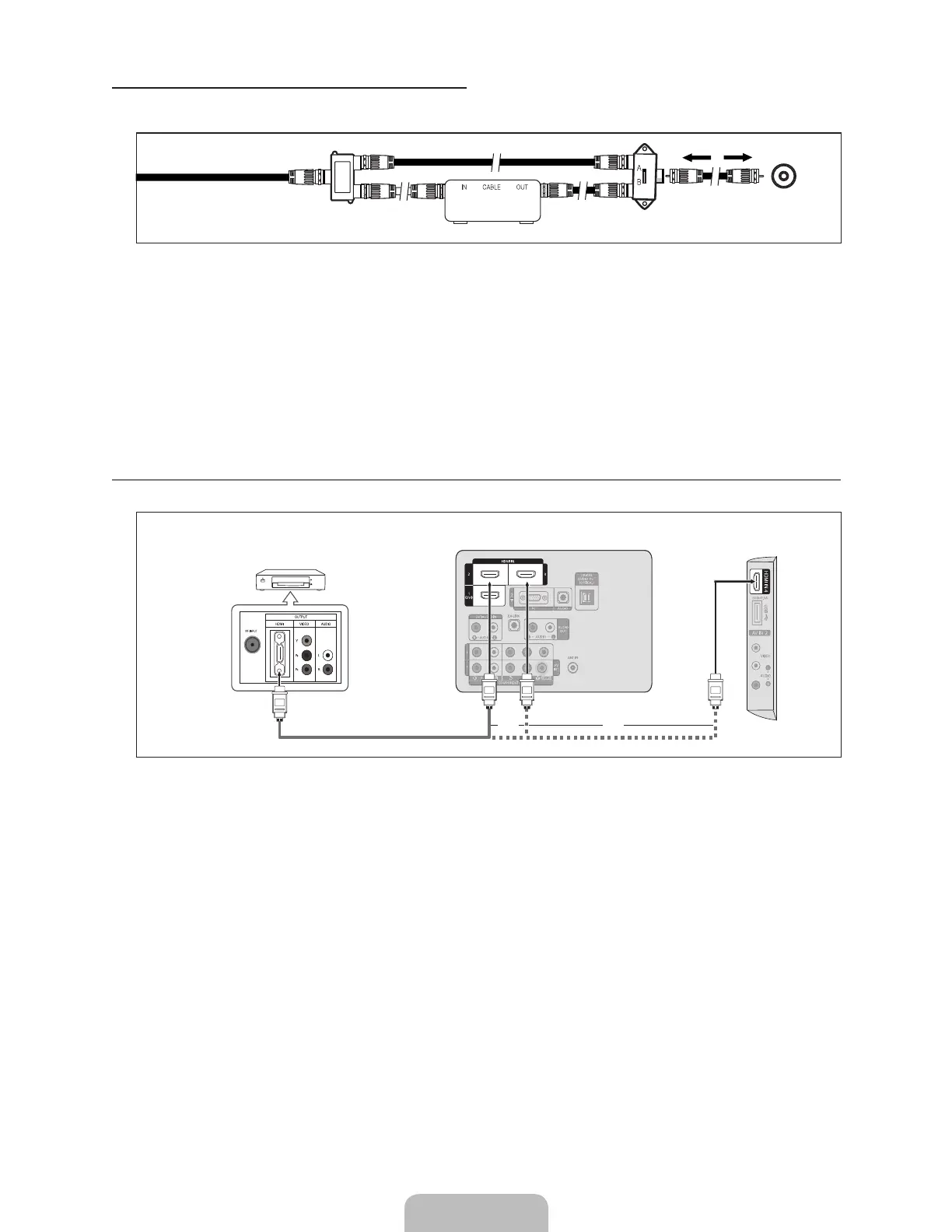

Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-
way splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.)
1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.
This terminal might be labeled ‘ANT IN’, ‘VHF IN’ or simply, ‘IN’.
2. Connect this cable to a two-way splitter.
3. Connect an RF cable between the OUTPUT terminal on the splitter and the IN terminal on the cable box.
4. Connect an RF cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch.
5.
Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.
6. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV.
After you have made this connection, set the
A/B switch to the ‘A’ position for normal viewing. Set the A/B switch to the ‘B’
position to view scrambled channels. (When you set the A/B switch to ‘B’, you will need to tune your TV to the cable box’s
output channel, which is usually channel 3 or 4.)
Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via HDMI
This connection can only be made if there is an HDMI Output connector on the external device.
1. Connect an HDMI Cable between the HDMI IN 1 (DVI), 2, 3 or 4 jack on the TV and the HDMI jack on the DVD / Blu-ray
Player or Cable Box / Satellite receiver (Set-Top Box).
What is HDMI?
HDMI(High-Denition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals
using a single cable.
The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital
Copy Protection) coding feature installed.
Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a different back panel conguration.
The TV may not output sound and pictures may be displayed with abnormal color when DVD / Blu-ray player / Cable Box /
Satellite receiver (Set-Top Box) supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI
cable and there is no sound, connect the HDMI cable to the HDMI IN 1 (DVI) jack and the audio cables to the DVI AUDIO
IN [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD / Blu-ray player /
Cable Box / Satellite receiver (Set-T
op Box) to conrm the HDMI version, then request an upgrade.
HDMI cables that are not 1.3 may cause annoying icker or no screen display.
N
¦
N


N
N
N
TV Rear Panel
DVD / Blu-ray player / Cable Box /
Satellite receiver (Set-Top Box)
TV Side Panel
TV Rear Panel
oror
1 HDMI Cable (Not supplied)
Splitter
Cable Box
Incoming cable
TV Rear
ANT IN
RF (A/B) Switch

Samsung LN40B550 Specifications

General

Audio system	SRS TruSurround HD
RMS rated power	20 W
Number of speakers	2
Package weight	22518 g
Game mode	Yes
Composite video out	1
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Package weight (imperial)	49.6 lbs
Response time	6 ms
Display diagonal	39.9 \
Display brightness	- cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	60 Hz
Contrast ratio (dynamic)	70000:1
Product color	Black
Picture-in-Picture	No

Weight and Dimensions

Depth (with stand)	254 mm
Width (with stand)	983 mm
Height (with stand)	676 mm
Weight (with stand)	18024 g
Depth (without stand)	79 mm
Height (without stand)	627 mm
Weight (without stand)	14891 g
