14 S&C Instruction Sheet 695-510
Operation
Closing the Doors and the Hinged Roof
STEP 1. Lift the door-holder mechanism up to allow left-
side door to swing closed. See Figure 18. Make sure
the nger latch engages the pin. See Figure 12(b) on
page 12.
STEP 2. Lift the door-holder mechanism up to allow right-
side door or the center door to swing closed. See
Figure 18. Close the door completely. Make sure the
latch handle drops down fully to engage the door-
latching mechanism.
STEP 3. On the right side of the switchgear enclosure, while
pushing up on the hinged roof, release the latch on
the “hold-open” mechanism. See Figure 19. Allow
the hinged roof to sag against the “hold-open”
mechanism. At the other end of the enclosure, push
up on the hinged roof just enough to allow that
“hold-open” mechanism latch to be released. Lower
the hinged roof into the Closed position.
STEP 4. Insert a pentahead socket wrench or tool (or a hex-
head socket wrench or tool if catalog number sufx
“-H1” is specied) into the hinged roof latching
mechanism. Rotate the wrench or tool 360° clock-
wise to fully latch the hinged roof. See Figure 20.
STEP 5. Insert the padlock shackle through the hole in the
padlock recess and lock the padlock.

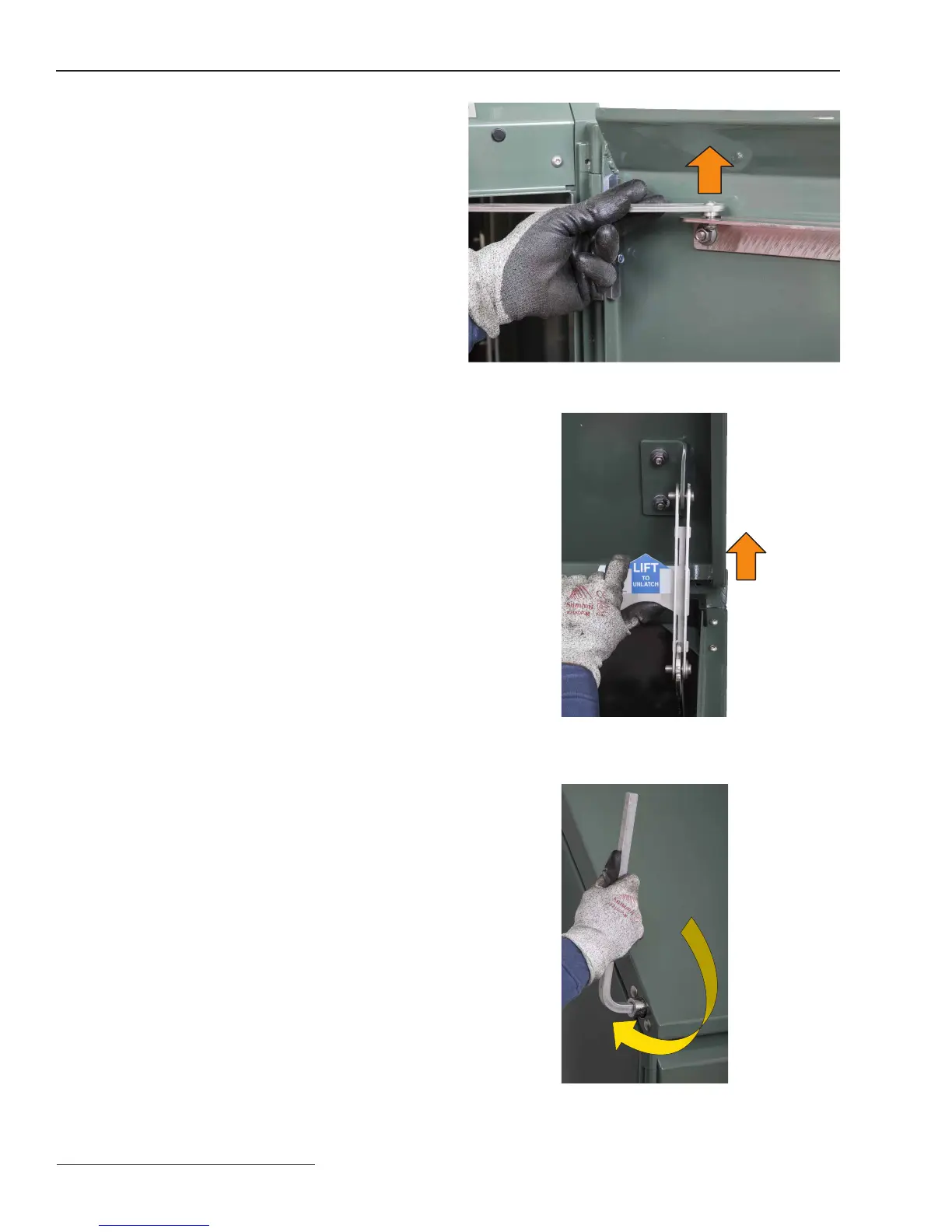

Figure 18. Lift the door-holder mechanism up to allow the
door to swing closed.
Figure 20. To fully latch the hinged roof, rotate pentahead
socket wrench or tool 360° clockwise.
Figure 19. While pushing up on the hinged roof, release the
latch on the “hold-open” mechanism.
