S&C Instruction Sheet 695-510 17
Operation
Locking in Open or Closed Position

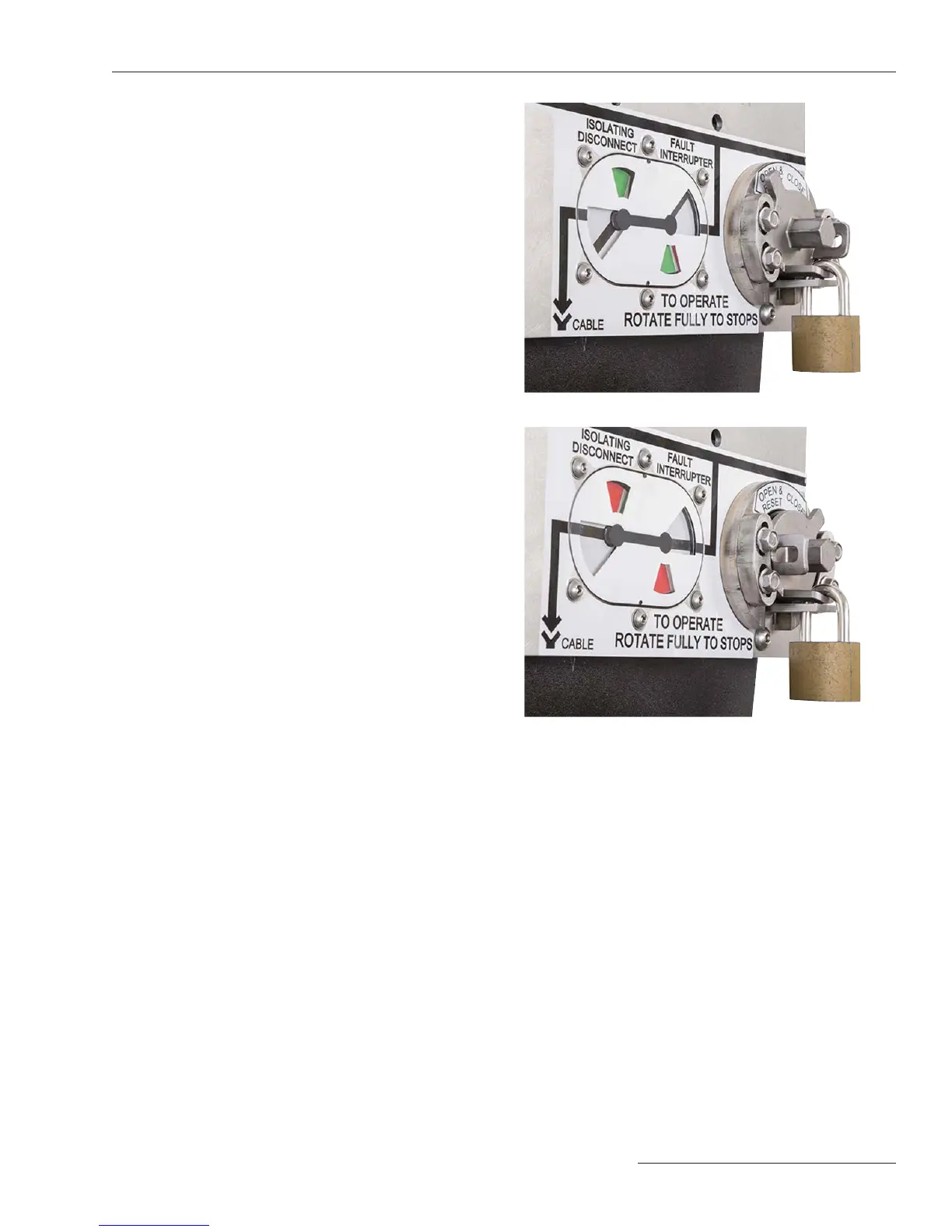

(a) Locked open
(b) Locked closed
Figure 28. The loadinterrupter switches
or fault interrupters may be padlocked in
either position.
To prevent operation of a load-interrupter switch or fault inter-
rupter, insert a padlock through the operating mechanism and
the center hole in the locking collar. See Figure 28.
