Sanyo PLC-XL51A Service Manual

- 41 -
L13
L13
L08
L09
L16
L15
L06
L07
L05
L12
Print Marker (Parts No. )
this side.
Print Marker (Parts No. )
this side.
Black Marker this side.
Black Marker this side.
L14
L04
Film sheet this side.
Print marker this top side.
Rugged surface
No. Parts Name
L04 INTEGRATOR LENS (OUT)
L05 CONDENSER LENS (OUT) NC
L06 CONDENSER LENS (G)
L07 CONDENSER LENS (B)
L08 CONDENSER LENS (R)
L09 RELAY LENS (IN)
L12 MIRROR (B)
L13 MIRROR (R)
L14 PRISM (PBS)
L15 DICHROIC MIRROR (B)
L16 DICHROIC MIRROR (G)
凸 marker this side.
INTEGRATOE LENS (OUT)

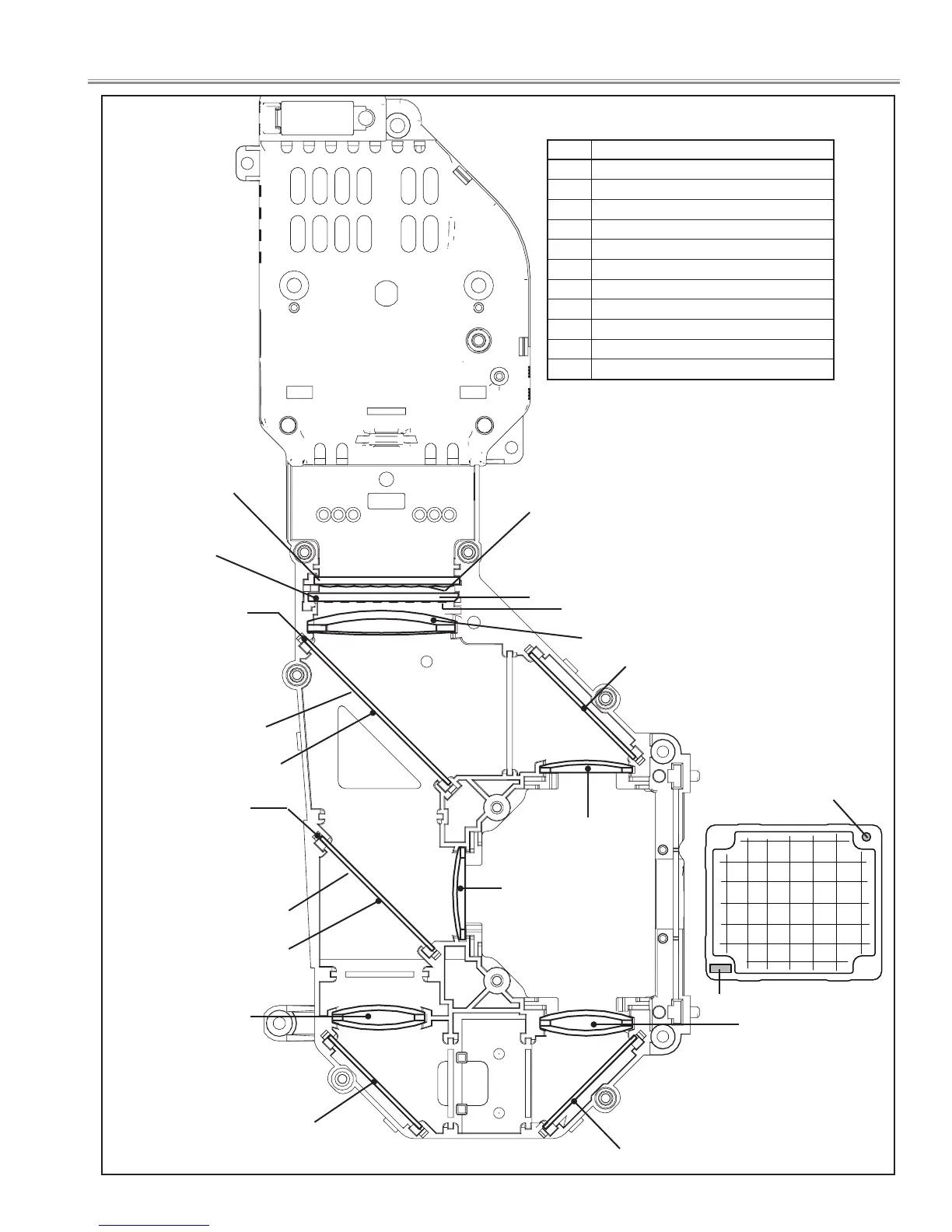

■Optical Parts Location and Direction
Print marker this side.
