- 89 -
● Assemblied Board
● Out of Circuit Board
A690
LAMP COVER SW BOARD
A602
LINE FILTER BOARD
A1001
MAIN BOARD
A2001
AV BOARD
A2901
R/C BOARD
A6801
KEY SW BOARD
A901
BALLAST UNIT
A4831
TEMP BOARD
FN904
(Exhaust)
FN903
(Exhaust)
LP900
Lamp Ass'y
FN901
(Intake)
FN902
(Intake)
FN905
(Intake)
SW902
(Thermal Switch)
SP901
(Speaker)

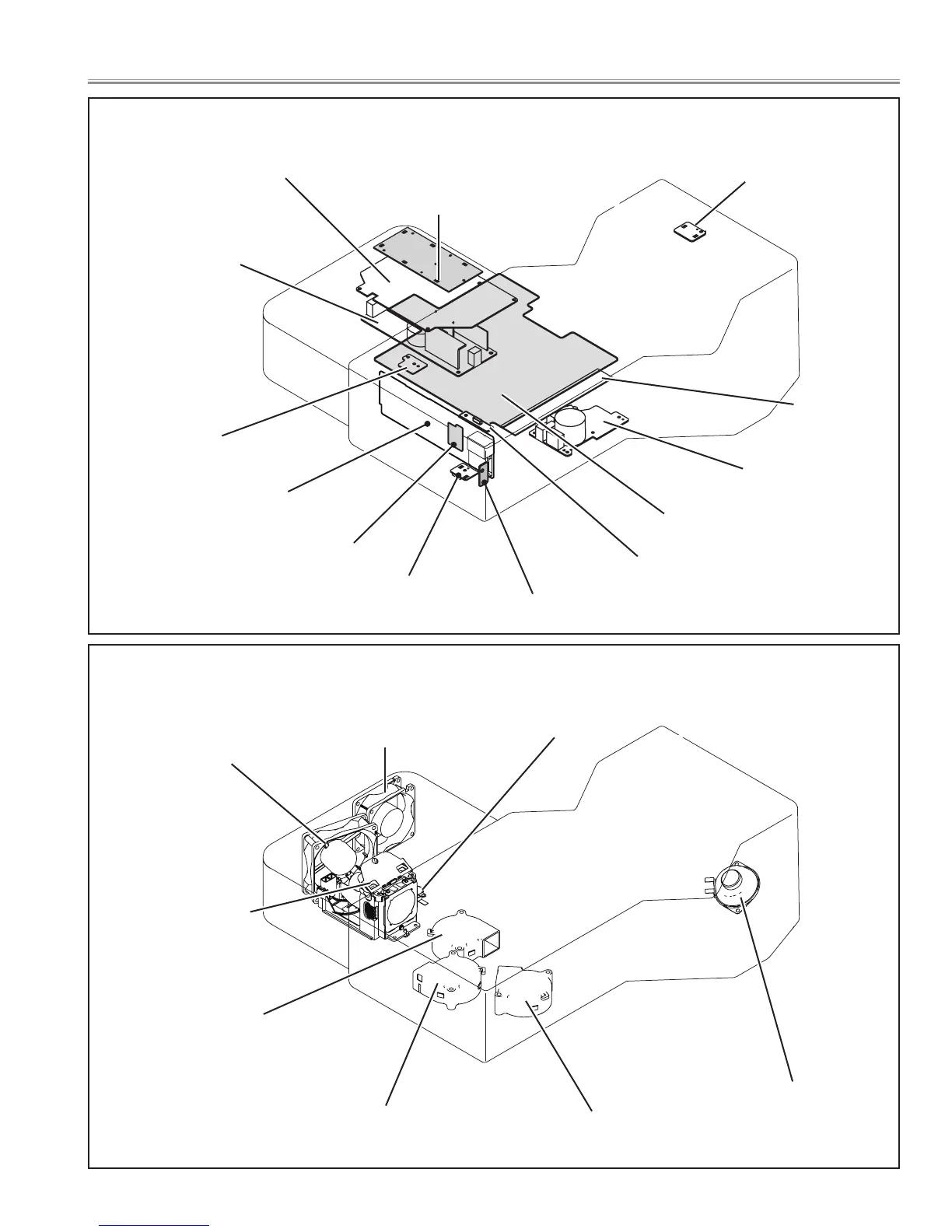

Elecrical Parts Location
A601
POWER BOARD
A2200
ANTENNA BOARD
A2000
NETWORK BOARD
A2100
MODULE BOARD
A200
LED BOARD
