Part Names and Functions
①
②
③
⑤
⑦
⑧
⑨

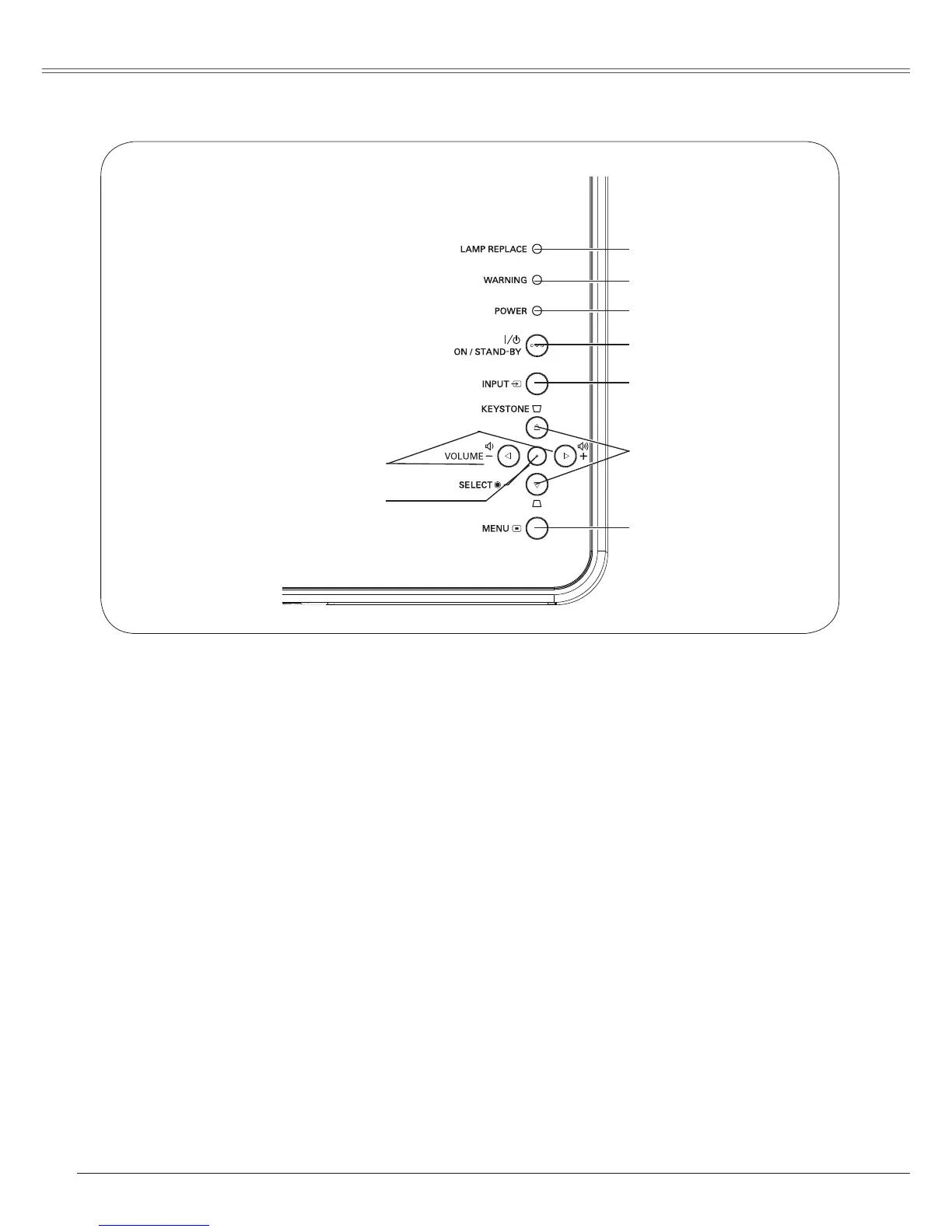

Top Control
④
⑥
⑦ LAMP REPLACE indicator
Turn yellow when the life of the projection
lamp draws to an end. (p.54, 61)
⑥ WARNING indicator
Emit a red light when the projector detects
an abnormal condition. This also blinks
red when the internal temperature of the
projector exceeds the operating range.
(p.51, 61)
② KEYSTONE ▲▼ buttons
Correct the keystone distortion. (p.22, 41)
④ POWER ON/STAND-BY button
Turn the projector on or off. (p.18, 19)
⑤ POWER indicator
– Lights red when the projector is in stand-
by mode.
– Lights green during operations.
– Blinks green in the Power management
mode.
– Blinks red during cooling down.
③ INPUT button
Select input source. (p.25, 34, 35)
⑨ SELECT button
– Execute the selected item. (p.20)
– Expand or compress the image in Digital
zoom mode. (p.33)
① MENU button
Open or close the On-Screen Menu. (p.20)
⑧ VOLUME +/- buttons
Adjust the volume level. (p.23）
POINT (▲▼◄►) buttons
② and ⑧ can be used as the point (▲▼◄►)
buttons.
– Select an item or adjust the value in the
On-Screen Menu. (p.20)
– Pan the image in Digital zoom + mode.
(p.33)
