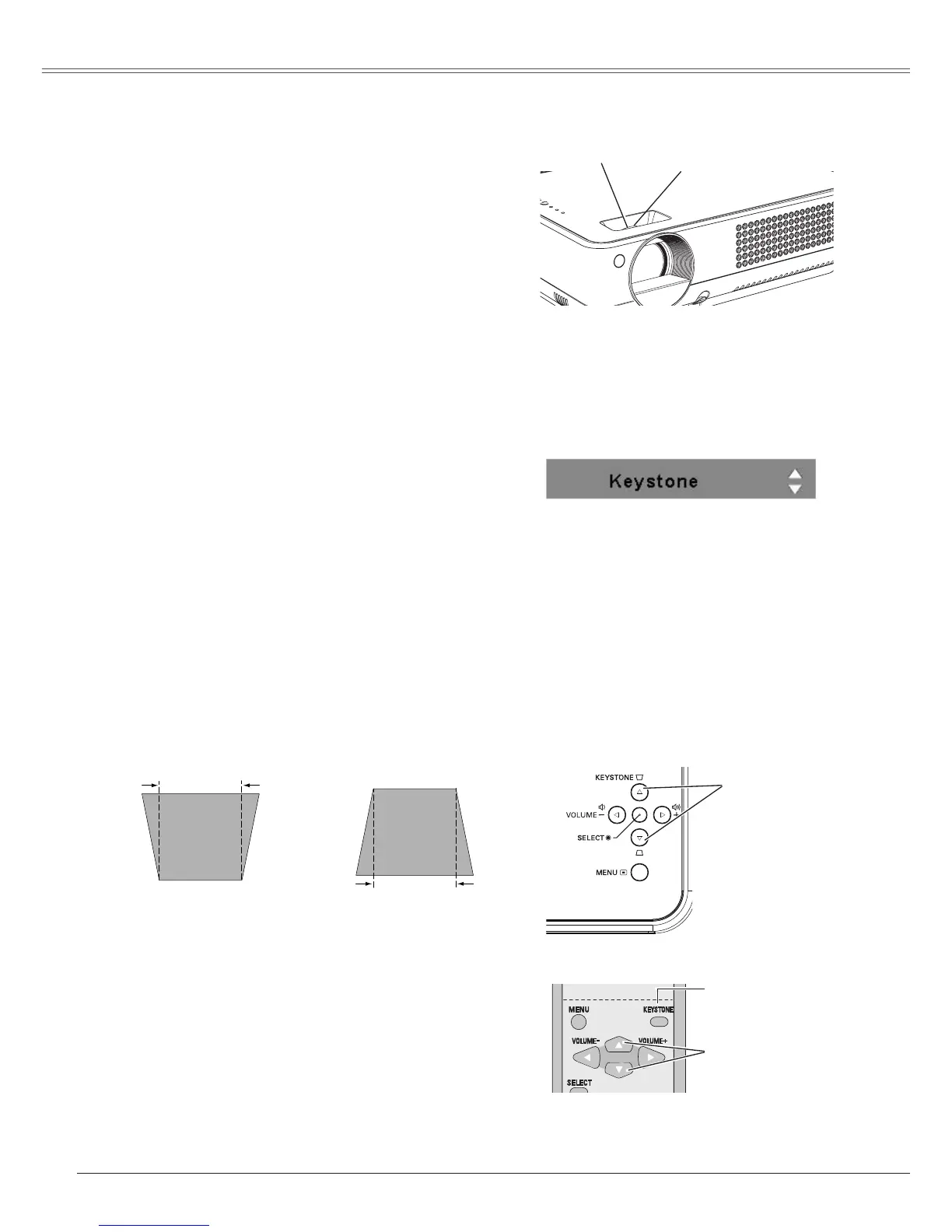

Basic Operation
22
Rotate the Zoom Ring to zoom in and out.
Rotate the Focus Ring to adjust the projected picture
focus.
Zoom and Focus Adjustment
Focus Ring
(Front side)
Zoom Ring
(Rear side)
POINT▲▼ buttons
KEYSTONE button
KEYSTONE ▲▼
buttons
• The arrows are white when there is no
correction.
•
The direction of the arrow being corrected
turns red.
•
The arrows disappear at the maximum
correction.
•
If you press the KEYSTONE button on
the remote control once more while the
keystone dialog box is being displayed, the
keystone adjustment is canceled.
•
The adjustable range is limited depending
on the input signal.
If a projected picture has keystone distortion, correct
the image with Keystone adjustment.
It is not available when On-Screen menu is displayed.
Press the KEYSTONE
▲▼ buttons on the top control
or the KEYSTONE
button on the remote control. The
keystone dialog box appears.
Correct keystone distortion by pressing the
KEYSTONE
▲▼ buttons on the top control or the
Point
▲▼ buttons on the remote control. Keystone
adjustment can be memorized. (p.41)
Reduce the upper width
with KEYSTONE ▲
button
or Point ▲ button.
Reduce the lower width
with KEYSTONE ▼
button
or Point ▼ button.
Keystone Correction
Remote Control
Top Control
To Next Page
