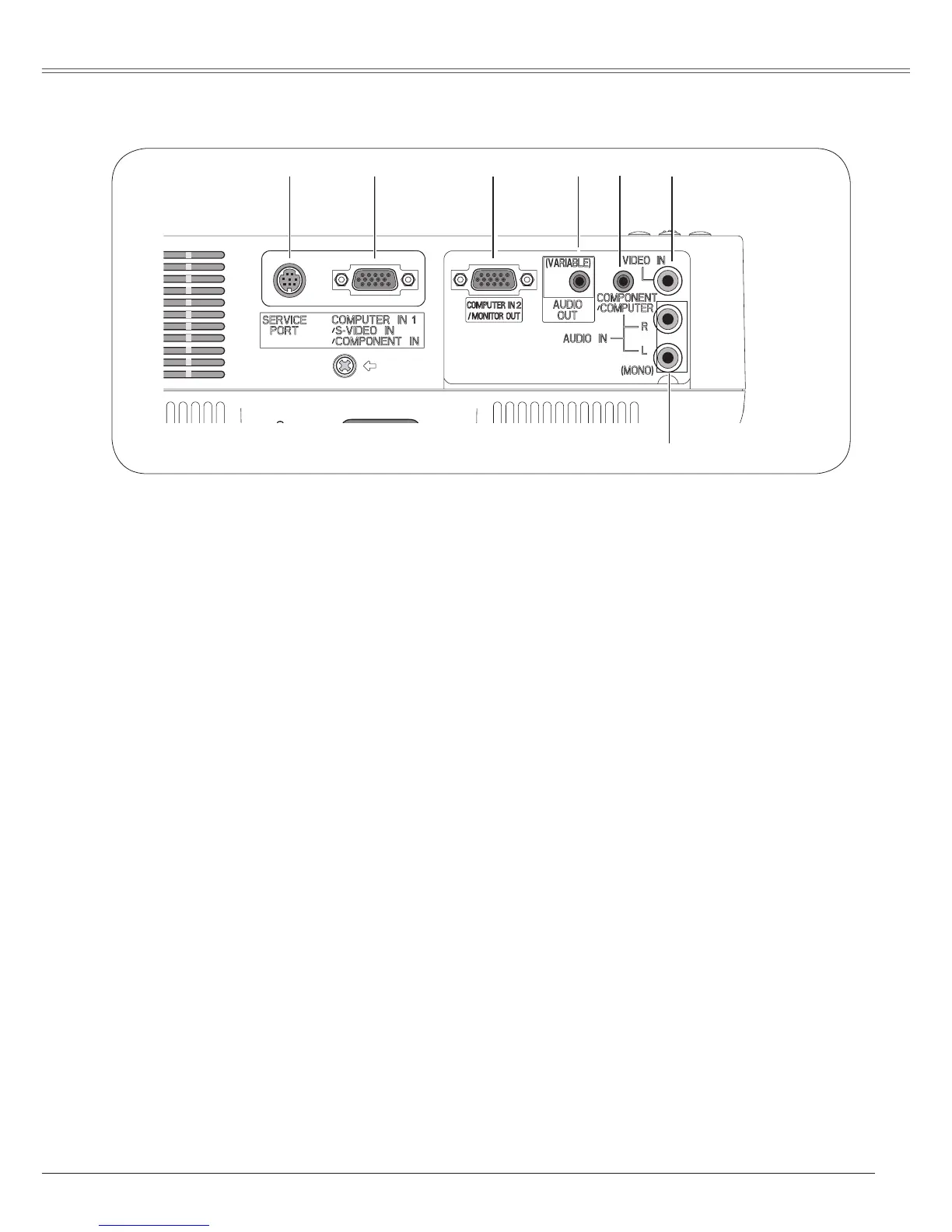

Rear Terminal
① SERVICE PORT
This jack is used to service the projector.
② COMPUTER IN 1 / S-VIDEO IN
/COMPONENT IN
Connect output signal from a computer,
RGB scart 21-pin video output, S-VIDEO
output, or component video output to this
terminal. (p.15-17)
W
hen the cable is of the longer variety, it
is advisable to use this terminal and not
COMPUTER IN 2 / MONITOR OUT.
④ AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this
jack. (p.15 - 17)
This
terminal outputs sound from AUDIO IN
terminal (⑤ or ⑦).
⑥ VIDEO IN
Connect the composite video output from
video equipment to VIDEO jack. (p.16)
⑦ AUDIO IN
Connect the audio output from video
equipment connected to
② or ⑥ to this
jack. (When the audio output is monaural,
connect it to L (MONO) jack.) (p.16)
⑤ COMPONENT / COMPUTER AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to
② to this jack. (p.15, 17)
③ COMPUTER IN 2 / MONITOR OUT
This terminal is switchable and can be
used for input from a computer and video
equipment (component, S-video or RGB
scart 2
1-pin ) or output to the other monitor.
(p.15)
Set the terminal up as either Computer
input or Monitor output properly. (Use
for Monitor out, this terminal output only
incoming signal from COMPUTER IN 1/
S-VIDEO IN/COMPONENT IN terminal.)
(p.15, 45)
