8

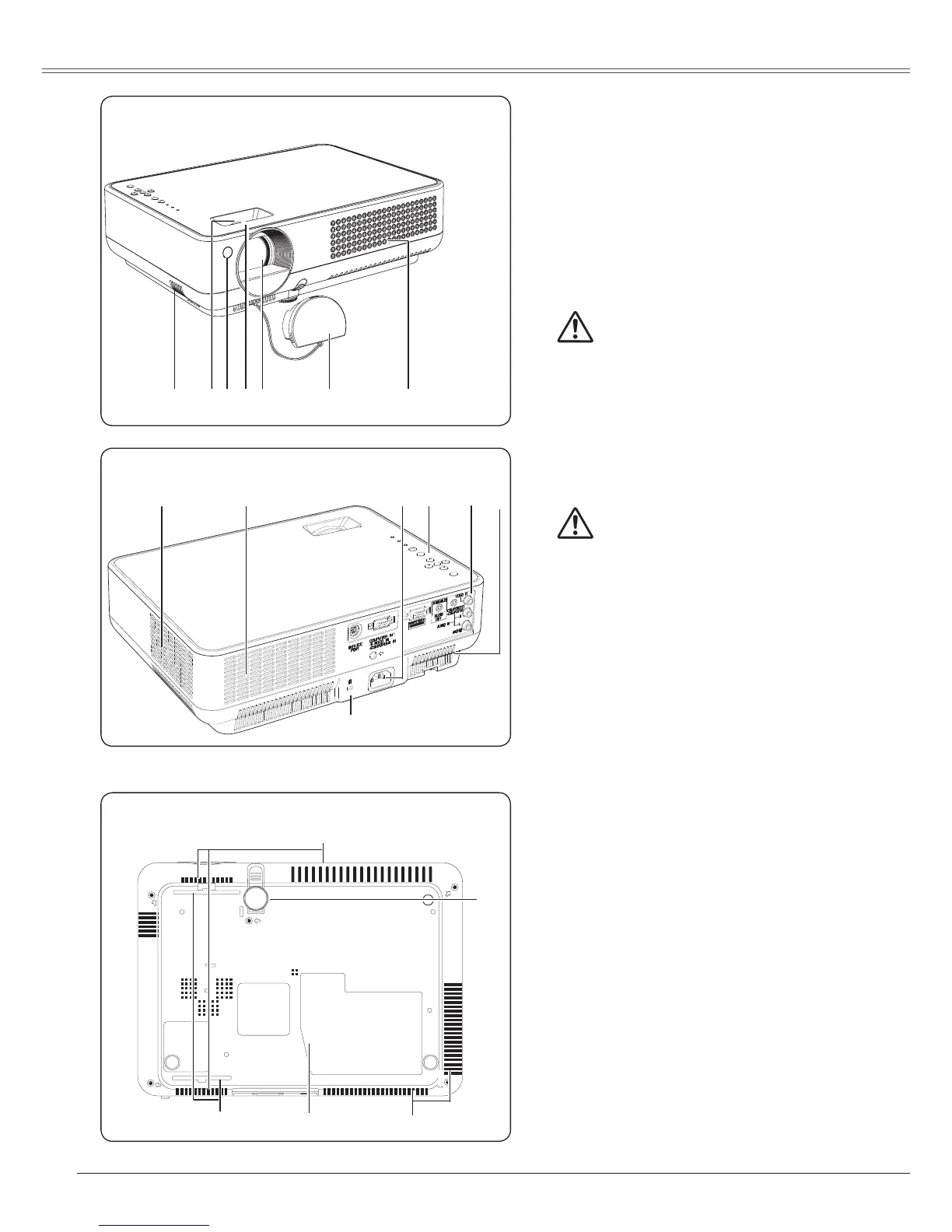

Part Names and Functions
① Speaker
② Zoom Ring (rear side)
③ Infrared Remote Receiver
④ Focus Ring (front side)
⑤ Projection Lens
⑥ Lens Cap
⑦ Air Intake Vent
⑧ Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent.
Do not put heat-sensitive objects near this
side.
⑨ Power Cord Connector
⑩ Top Control and Indicators
⑪ Terminals and Connectors
⑫ Air Intake Vents (back and
bottom)
⑬ Adjustable Foot
⑭ Lamp Cover
⑮ Air Filters
Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light
beam may damage lens cap and result in
fire hazard.
Back
⑧
⑧
⑩ ⑪
①
⑤
⑦
⑨
Front
③
④
Bottom
⑮
⑧
②
⑦
⑫
⑬
⑭
⑥
