Installation
 Note:
• The brightness in the room has a great influence on picture quality. It is recommended to limit
ambient lighting in order to obtain the best image.
•
The values shown below are approximate and may vary from the actual sizes.

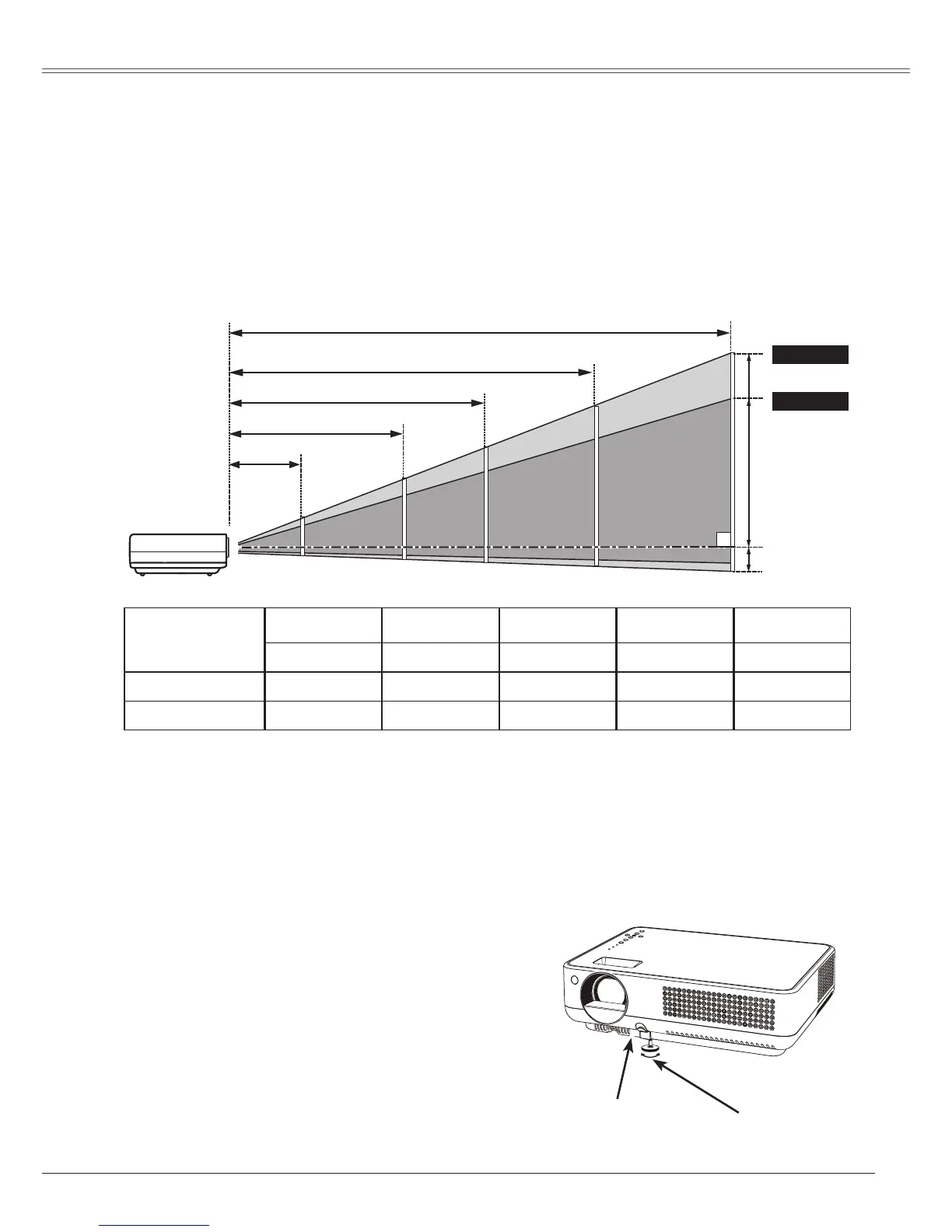

Positioning the Projector
For projector positioning, see the figures below. The projector should be set horizontally to the flat
screen.
Projection angle can be adjusted up to 10.0 degrees
with the adjustable foot.
Press the Foot Lock Latch upward to release the
adjustable foot. At the desirable angle, release the
latch to lock the adjustable foot. Rotate the adjustable
foot from side to side for fine adjust.
To correct Keystone distortion, press the KEYSTONE
button on the remote control or select Keystone from
the menu. (p.22, 41)
Adjustable Foot
A
B
43.3' (13.2m)
23.9' (7.3m)
18.0' (5.5m)
11.8' (3.6m)
A : B = 6 : 1
(Inch Diagonal)
4.6' (1.4m)
(Center)
Min. Zoom
Max. Zoom
40"
100"
150"
200"
300"
83"
126"
166"
250"
Screen Size
(W x H) mm
4 : 3 aspect ratio
40"
813 x 610
100"
2032 x 1524
150"
3048 x 2286
200"
4064 x 3048
300"
6096 x 4572
Zoom (max)
4.6' (1.4m)
11.8' (3.6m) 18.0' (5.5m) 23.9' (7.3m) 36.1' (11.0m)
Zoom (min)
14.4' (4.4m)
21.7' (6.6m)
28.9' (8.8m)
43.3' (13.2m)
5.6' (1.7 m)
Adjustable Foot
Foot Lock Latch
(Press upward)
