Installation
16
Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-Video Cable
• S-Video-VGA Cable
•
Audio Cables (RCA X 2, Mini Plug: stereo)
( Not all the cables are supplied with this projector.)
Note:
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 64 for ordering optional
cables.
Unplug the power cords of both the projector and external equipment from the AC outlet
before connecting cables.

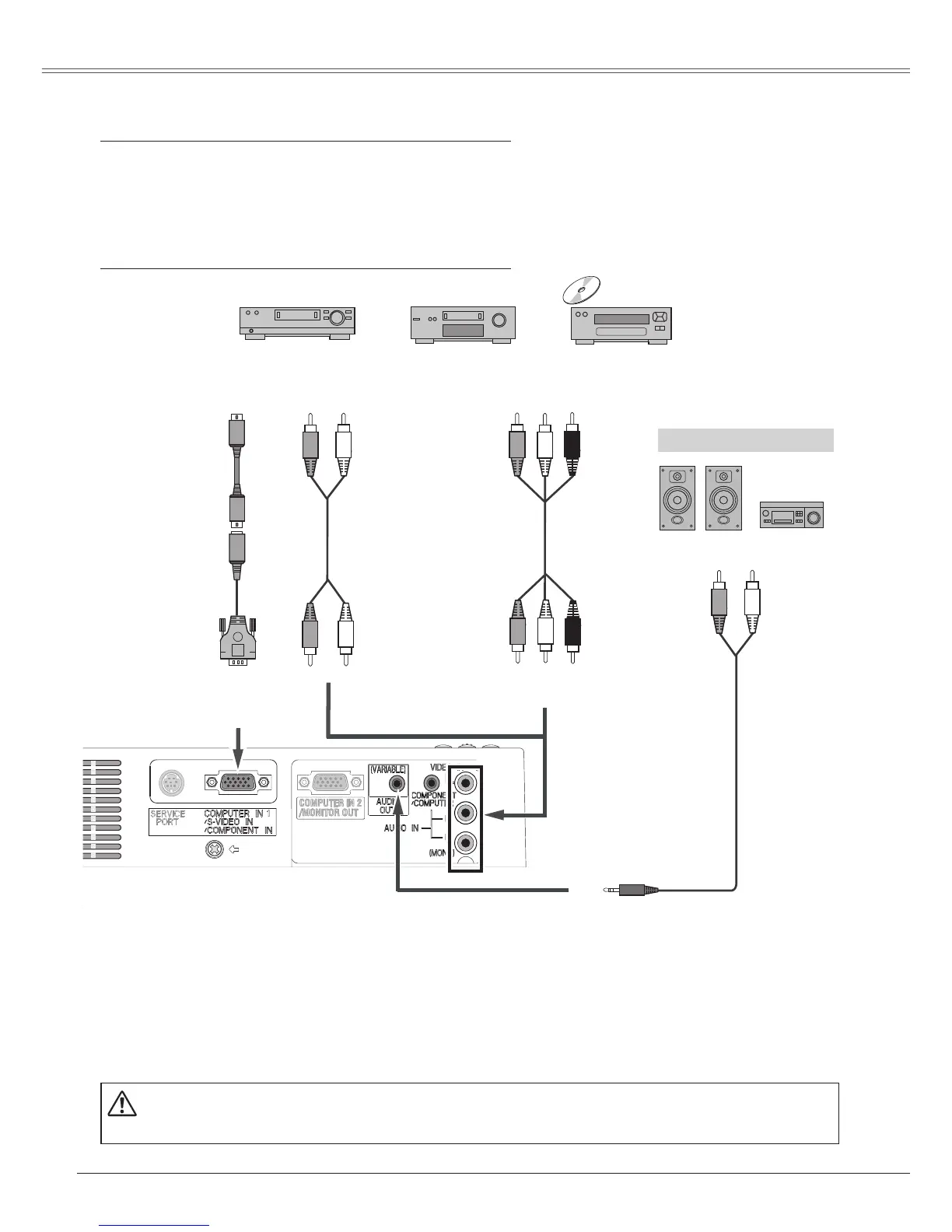

External Audio Equipment
VIDEO IN
COMPUTER IN 1
/S-VIDEO IN
/COMPONENT IN
S-Video-VGA cable
Video and
Audio cable
Composite Video and Audio Output
S-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L)
(R) (L)
(Video)
(Video)
S-Video cable
Audio cable
(R) (L)
(R) (L)
Audio cable
