Handlebar
Removal
Tool Required: 3 mm hex wrench
1. Make sure the Segway PT is powered off and
unplugged.
2. Using a 3 mm hex wrench, remove the three
fasteners that secure the Handlebar Clamp to the
LeanSteer Frame. See Figure 1–3.
3. Remove the Handlebar and Handlebar Clamp from
the LeanSteer Frame.
Installation
Tools Required: 3 mm hex wrench
Torque wrench
1. Make sure the Segway PT is powered off and
unplugged.
2. Align the Handlebar in place against the LeanSteer
Frame using the alignment guides. See Figure 1–4.
3. Position the Handlebar Clamp against the
Handlebar.
4. Insert the three fasteners through the Handlebar
Clamp and into the LeanSteer Frame.
5. Using a 3 mm hex wrench, alternate between
the three fasteners, evenly tightening in small
increments.
6. Check to ensure that the gap between the Handlebar
Clamp and the LeanSteer Frame is even and is
equidistant between top and bottom. Torque to
2.0 N-m (18 in-lbf).
7. Perform post-service tests (page A–1).
Handlebar
Handlebar Clamp
20306-00001
2.0 N-m (18 in-lbf)

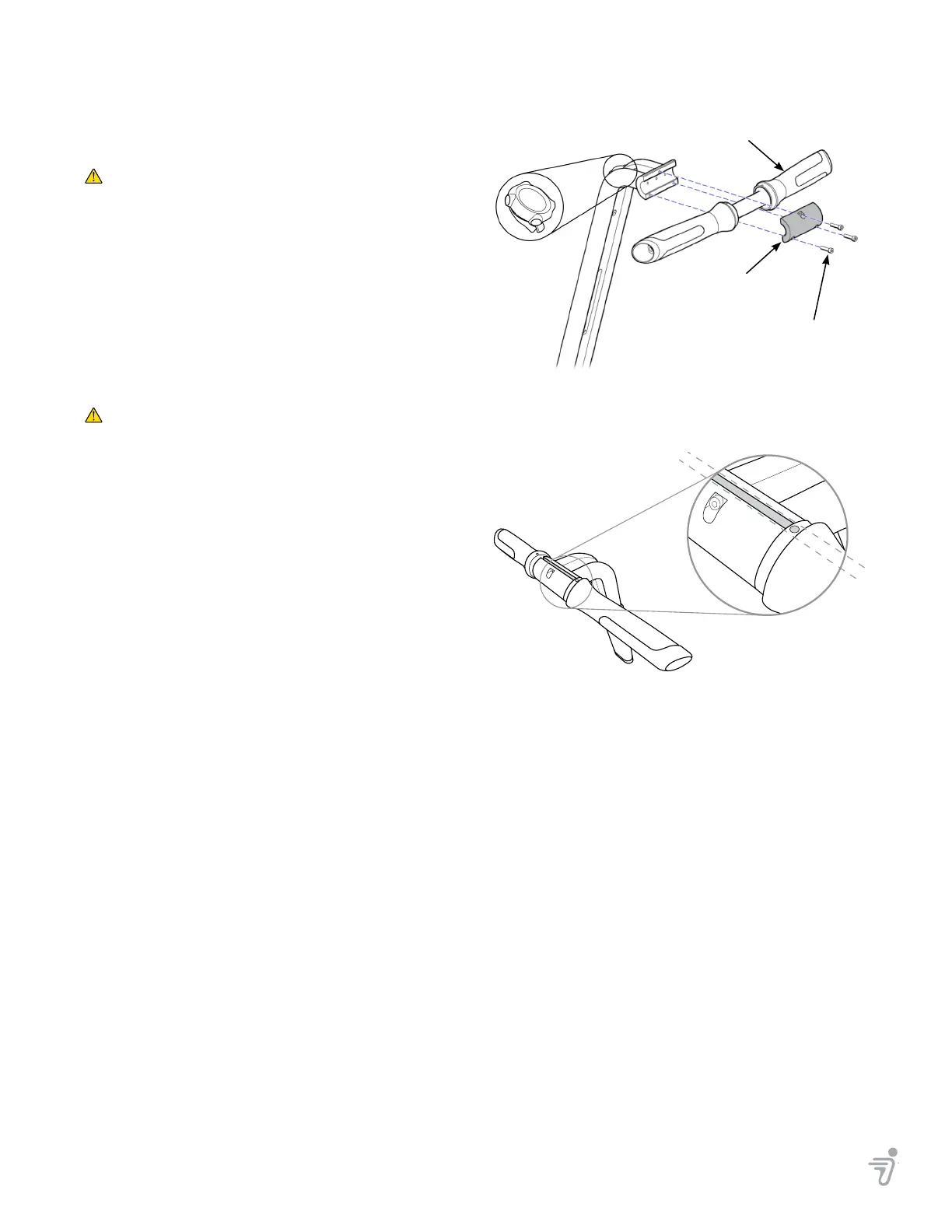

Figure 1–3: Installing and Removing the Handlebar
Figure 1–4: Aligning the Handlebar
LeanSteer
