Segway x2 SE Service Manual

Segway Personal Transporter SE Service Manual
6–3
Powerbase Trim
Console Cover
Removal
Tools Required: 4 mm hex wrench
T-20 6-lobe wrench
1. Make sure the PT is powered off and unplugged.
2. Using a 4 mm hex wrench, remove the two fasteners
from the Front Console Cover and slide the Front
Console Cover off. See Figure 6–2.
3. Using a T-20 6-lobe wrench, remove the four
fasteners on the Center Console Cover and lift the
Center Console Cover off. See Figure 6–3.
CAUTION!
Make sure the IEC connector (charge port) remains
clean and dry.
Installation
Tools Required: T-20 6-lobe wrench
4 mm hex wrench
Torque wrench
1. Make sure the PT is powered off and unplugged.
2. Place the Center Console Cover on the console.
3. Using a T-20 6-lobe wrench, install the four
fasteners. Torque to 1.5 N-m (13 in-lbf).
See Figure 6–3.
4. Slide the Front Console Cover over the legs of the
Center Console Cover.
5. Using a 4 mm hex wrench, install the two fasteners.
Torque to 1.5 N-m (13 in-lbf). See Figure 6–2.
6. Perform post-service tests (page A–1).

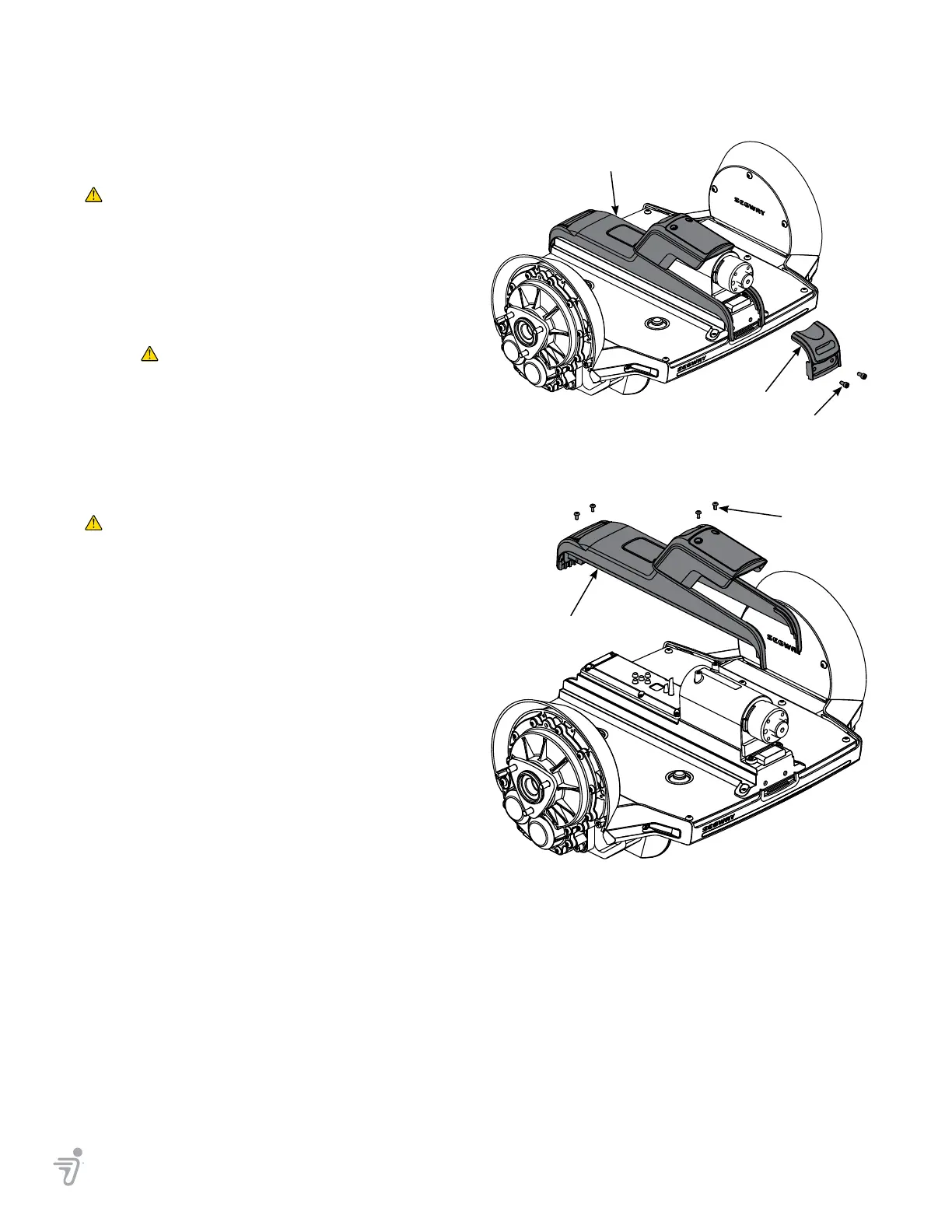

Figure 6–2: Front Console Cover
Figure 6–3: Center Console Cover
Center Console Cover
Center Console Cover
20307-00002
1.5 N-m (13 in-lbf)
Front Console Cover
20554-00001
1.5 N-m (13 in-lbf)
