36
Dimension: 140mm x 215mm
L To watch video material playback.
• Press the Remote’s
INPUT
to select the VIDEO INPUT mode for the video equipment you wish to
play.
• The external VIDEO INPUT mode will change as follows each time the
INPUT
is pressed.

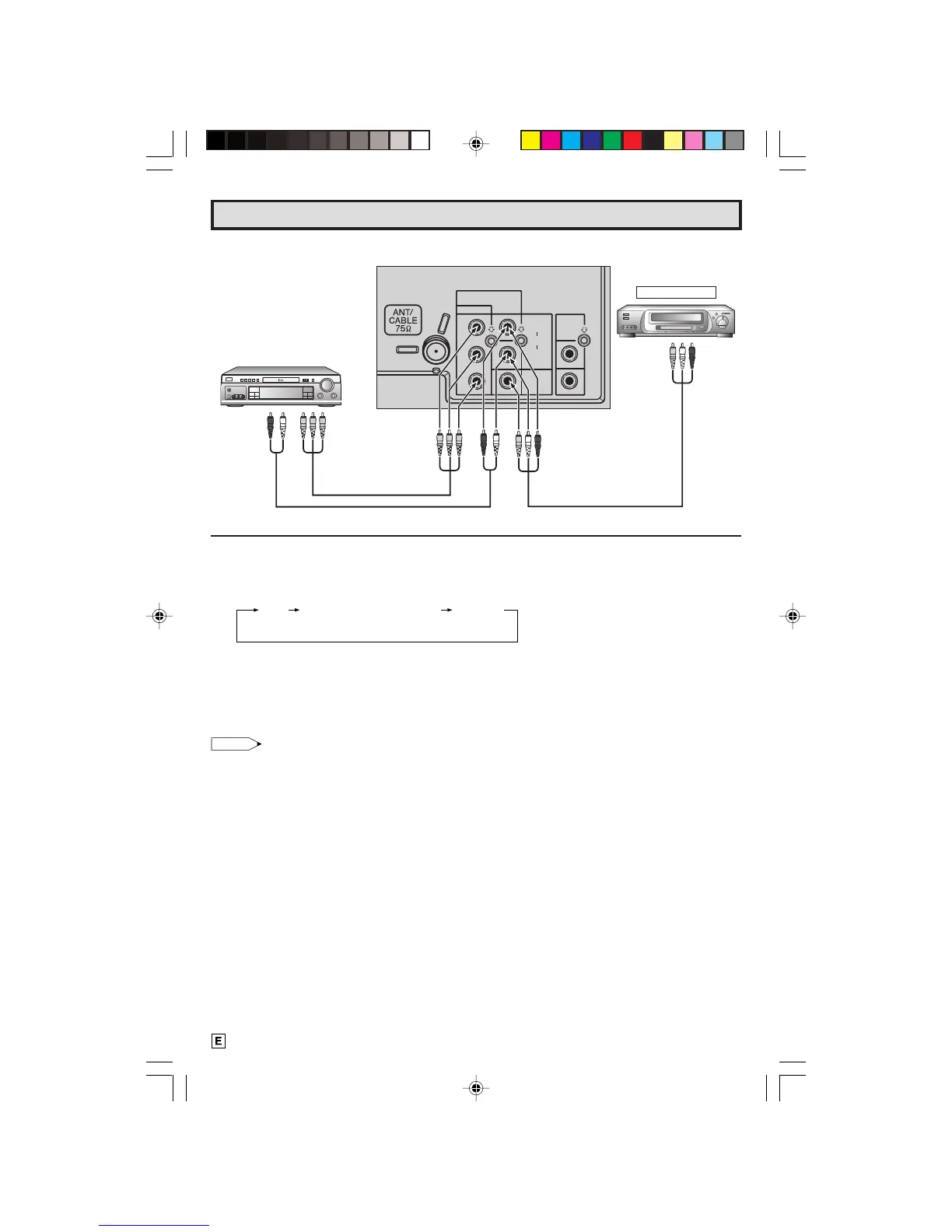

• When the AV cables are being connected to the VIDEO INPUT 1 and COMPONENT Y terminals
simultaneously, the COMPONENT terminal has priority over the VIDEO terminal.
• INPUT mode can be selected by pressing either the
CH (
8
)
on the TV remote control when the TV is
set to the highest channel stored in memory, or by pressing the
CH (
9
)
when it is set to the lowest
channel.
Note:
• When connecting video or audio equipment to the television, be sure that the power is turned off in
order to prevent damage to either the television or the equipment being connected.
• For detailed information on the connection and use of auxiliary equipment, refer to the instruction
manuals of the equipment being used.
• The connection cords can be obtained from your local video store.
AIR
or
CABLE
INPUT 1 (or COMPONENT)
(IN 1)
Rear
INPUT 2
(IN 2)
Front
P
R
P
B
Y
IN 1
LINE
OUT
R
L
AUDIO
VIDEO
R
L
COMPONENT
Video Equipment
To COMPONENT
VIDEO OUTPUT
Terminals
To AUDIO
OUTPUT
(L/R)
Video Equipment with
Component Video
(Component Color)
Output Terminals
(Y, P
B
and P
R
)
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
To VIDEO OUTPUT
(Rear connection terminals of TV)
Using the Video and Audio Input Terminals (Continued)
21FL94_35-41_EN 11/3/04, 6:11 pm36
To Next Page
