Sharp 20F650 User Manual

37
Dimension: 140mm x 215mm

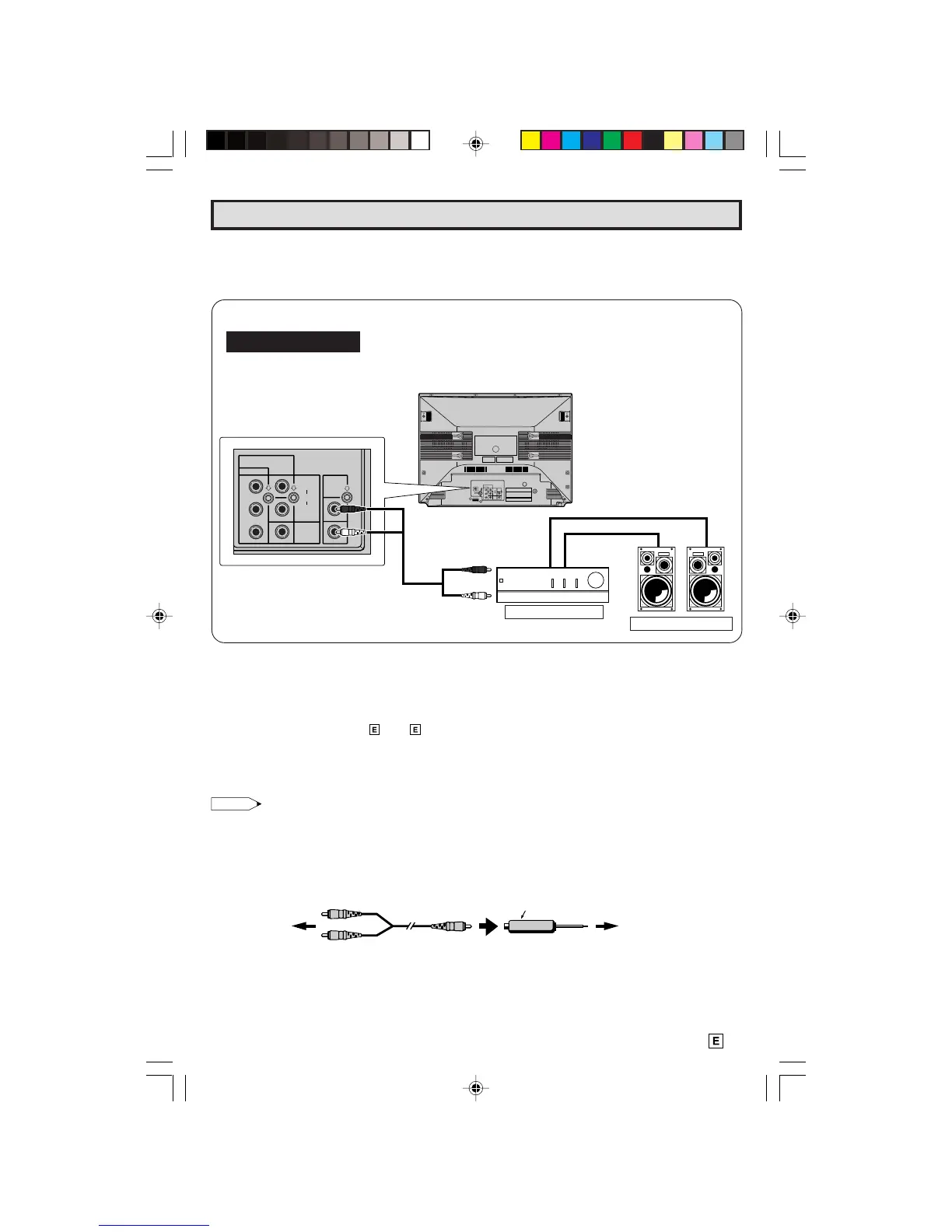

Using the Audio Output Terminals
Stereo Amplifier
Speaker System
P R
P B
Y
IN 1
LINE
OUT
R
L
AUDIO
VIDEO
R
L
COMPONENT
P R
P B
Y
IN 1
LINE
OUT
R
L
AUDIO
VIDEO
R
L
COMPONENT
Plug adaptor
Pin jack/Mini plug
To the equipment
being connected
Pin plug x 2 Pin Plug
To the TV
To the audio
input terminals
(1) Before connecting the cables, turn on the TV and adjust the VOLUME control on the TV to a moderate
listening level.
(2) Turn off the TV and connect the audio cables to the AUDIO LINE OUTPUT terminals on the TV.
(3) Turn the TV set and stereo amplifier on.
(4) If you desire, you can turn off the sound to the TV’s internal speakers by acessing the TV’s AUDIO
SELECT mode. See page 20 ~ 21.
(5) Adjust the VOLUME control on the stereo amplifier for a moderate listening level.
(6) Control of the audio can be adjusted using the audio controls (STEREO/MONO/SAP, VOLUME,
MUTE and FAO), from either the remote control, or directly from the TV set.
Note:
• For detailed information on the connection and use of auxiliary equipment, refer to the operation
manuals of the equipment being used.
• When connecting monaural equipment to the AUDIO INPUT or OUTPUT of this set, use an audio
connection cord and plug adaptor as shown below.
• For optimal sound quality, we recommend you to keep the TV’s audio output level high.
L These terminals are used for connecting an external audio amplifier. The STEREO/MONO/
SAP, VOLUME, MUTE and FAO functions can all be controlled via the television’s remote
control or directly on the TV itself. These terminals relay the audio signal of all programs
being displayed on the TV screen.
(AUDIO OUTPUT terminals are located on the rear of the cabinet.)
CONNECTIONS
(Rear connection
terminals of TV)
21FL94_35-41_EN 11/3/04, 6:11 pm37
