Service Manual
CHAPTER 5. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS
.
3 3

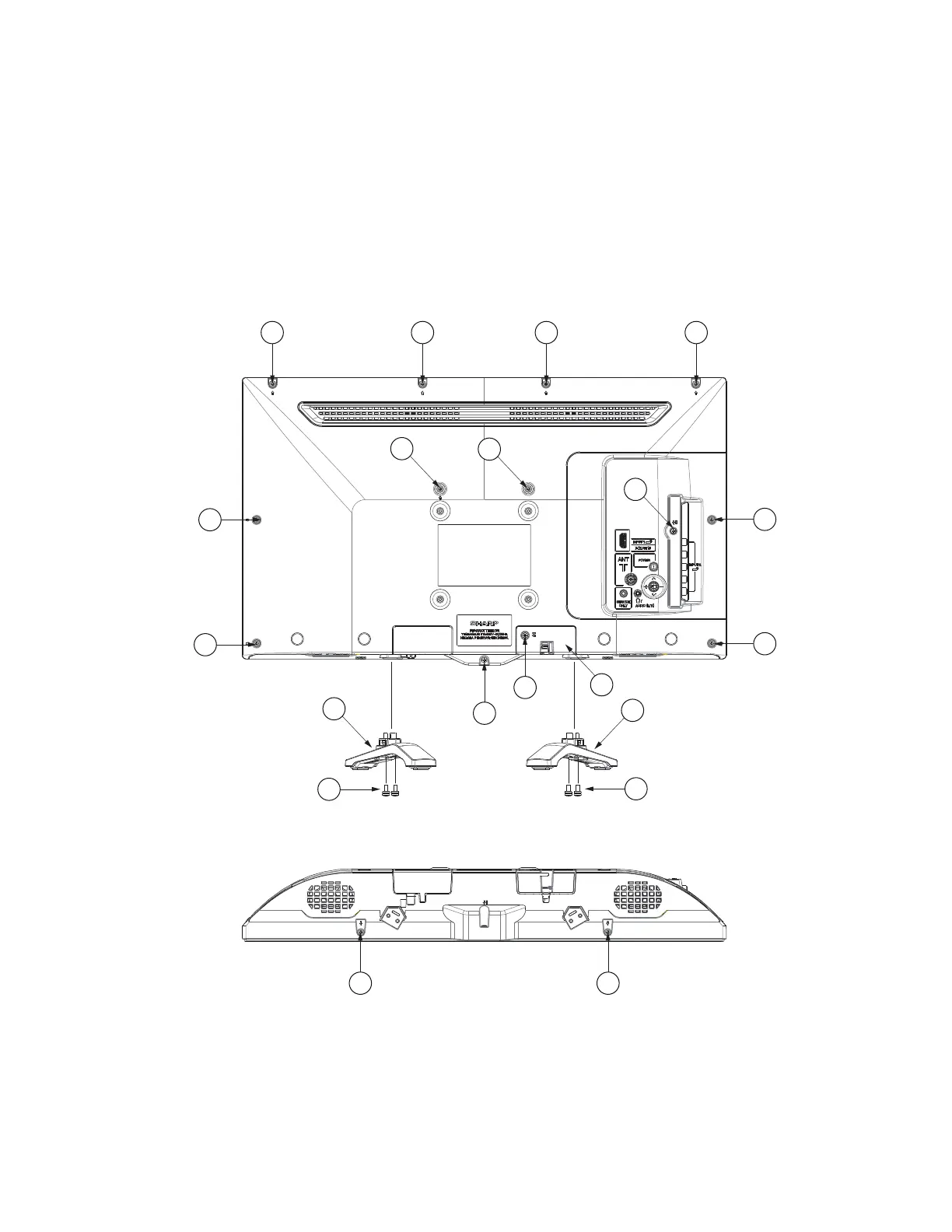

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 4 lock screws (1), detach the Stand Unit R (2) and Stand Unit L (2).
2. Remove the 2 screws (3), 1 screw (4), and detach AC Cord Cover (5)
3. Remove the 2 screws (6), 10 screws (7), and detach Rear Cabinet Ass’y
