Sharp LC-24LE170I User Manual

1 4
13
14
5
23
20
12
8
7
15
11
21
20
18
10
10
16
2
19
16
17
21
17
3 6
9
22
16
16
8
7
1. KS CAB A 11. MAIN BOARD 21. VESA ANGLE
2. PANEL HIRAKI 12. WIRE HOLDER 22. CAB B
3. KS P FRAME 13. RC COVER 23. AC CORD COVER
4. DIFFUSION SHEET 14. IR BOARD
5. DIFFUSION PLATE 15. TERMINAL COVER
6. REFLECTION SHEET 16. SPEAKER HOLDER
7. LED BAR 17. SPEAKER
8. B.L SCREW ANGLE 18. POWER BUTTON
9. B.L CHASSIS 19. JOY BUTTON
10. HOLDER 20. VESA ANGLE
Service Manual

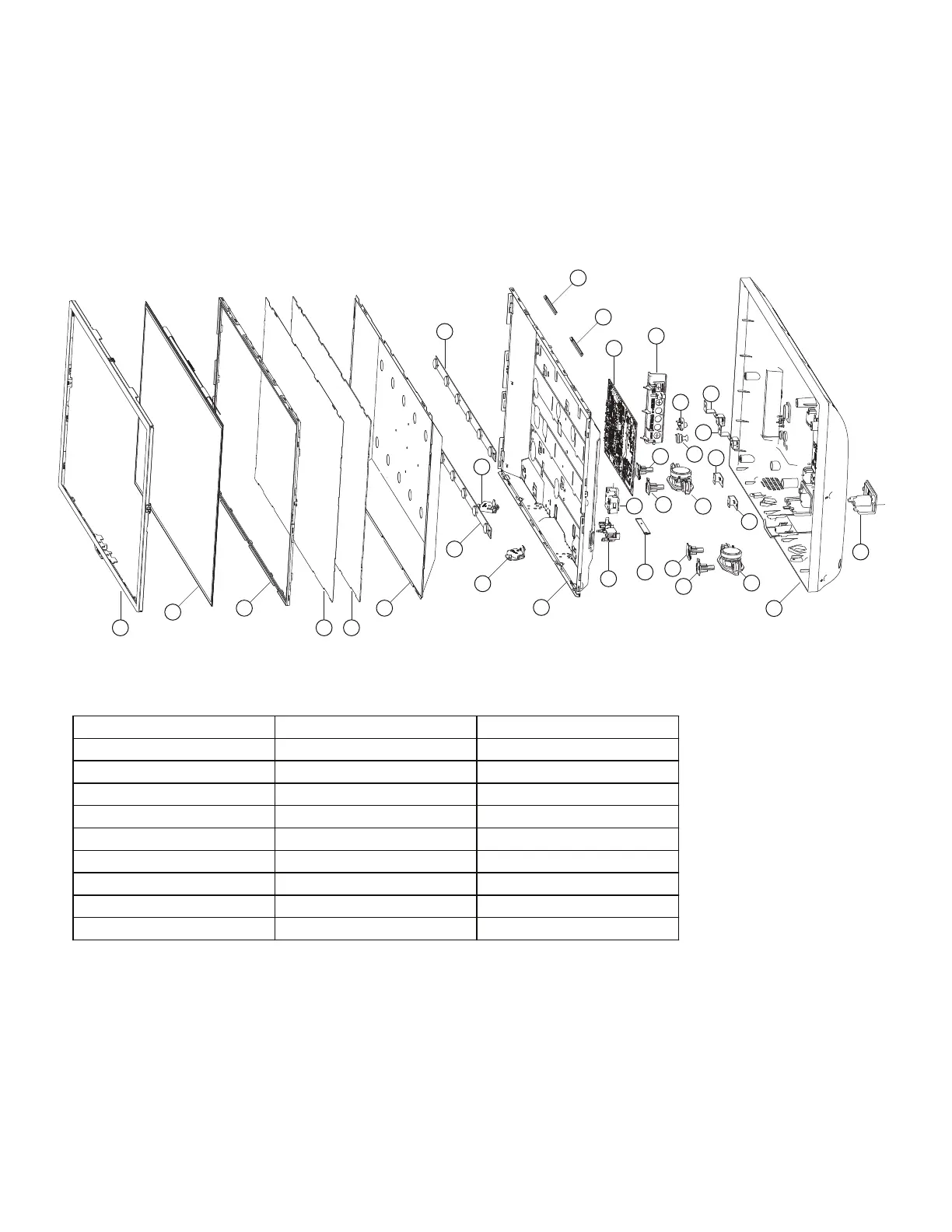

[1] EXPLODE VIEW
LC-24LE170I
18

Sharp LC-24LE170I Specifications

General

Brand	Sharp
Model	LC-24LE170I
Category	LED TV
Language	English
