5
– 2
Service Manual
4
3
1
1
2
5
5
5
1
1.

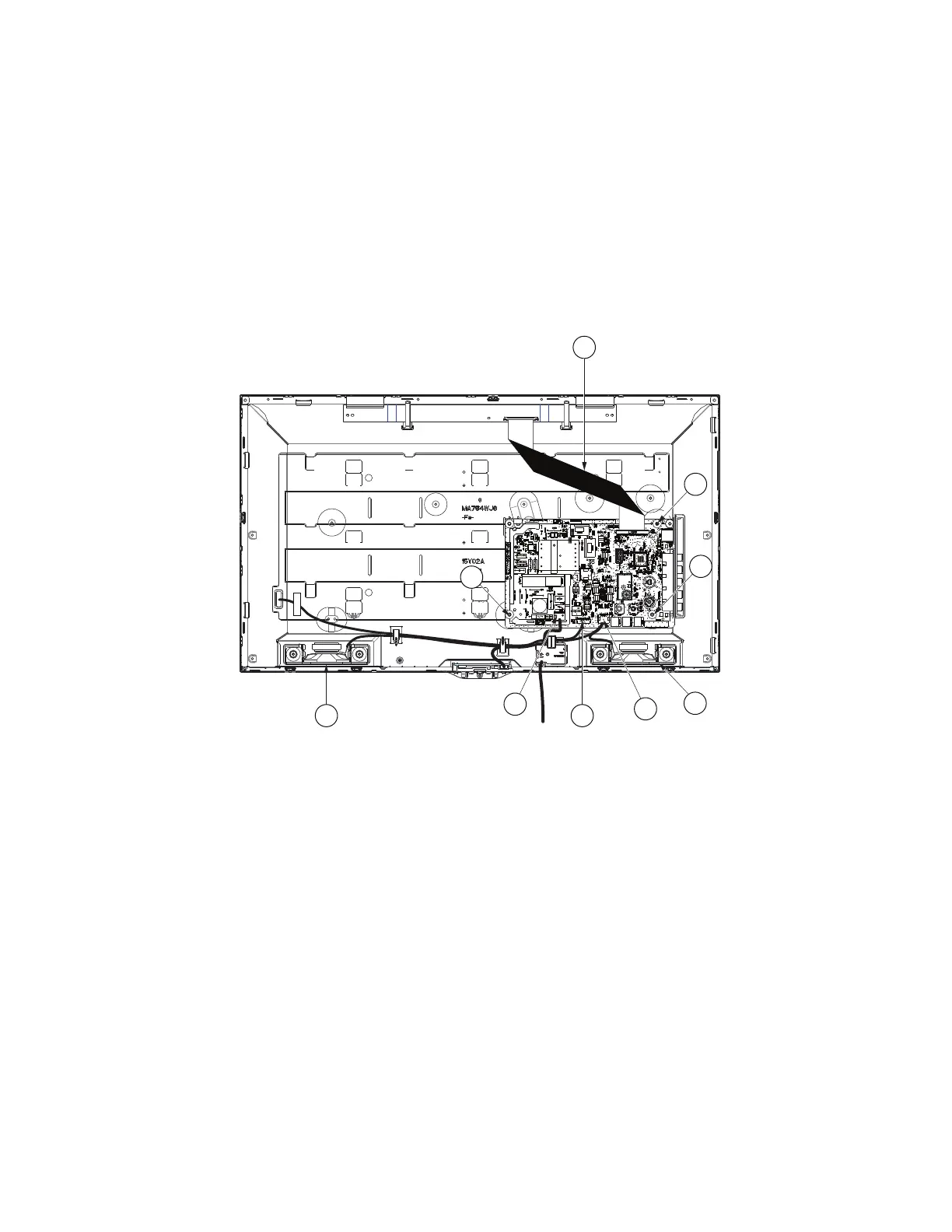

Removing Speaker L/R and PWB Chassis
.
1.
Disconnect SP Wire and remove speaker (1).
2.
Disconnect BL/IR Wire (2).
3.
Disconnect AC Cord (3).
4. Disconnect LVDS FFC Wire (4), remove 3 screws (5), and remove PWB Chassis.
LC-24LE170I
10
12
Table of Contents
Default Chapter
1
Table of Contents
1
Before Returning the Receiver
2
Safety Notice
2
Safety Precaution Important Service Safety Pre- Caution
2
Employing Lead-Free Solder
3
Precautions for Using Lead-Free Solder
3
Soldering
3
Using Lead-Free Wire Solder
3
Chapter 1. Outline Outline
4
Major Service Parts
4
OTHER Unit
4
PWB Unit
4
Chapter 2. Specifications
5
Chapter 3. Operation Manual Operation Manual
6
Part Names
6
TV (Front)
6
TV (Rear)
6
Remote Control Unit
7
Attaching the Stand
8
Chapter 4. Dimensions Dimensions
9
Dimensional Drawings
9
Chapter 5. Removing Major Parts
10
Removing of Major Parts
10
Removing of Stand Unit and Rear Cabinet Ass’
10
Removing Speaker L/R and PWB Chassis
11
Removing of the LCD Panel Module
12
Chapter 6. Adjustment
13
Entering and Cancel the Adjustment Process Mode
13
Software Upgrading
13
Adjustment Mode
14
Component 33K 60Hz Signal Adjustment
14
Picture Adjustment
14
Signal Adjustment
14
White Balance Adjustment
15
Factory Setting
17
Chapter 7. Troubleshooting Table
18
Troubleshooting Table
18
No Video Onscreen
20
No Audio Heard
21
Overall Wiring / Block Diagram
24
System Block Diagram
24
Chapter 9. Printed Wiring Board
25
Main & Power Pwb Side A-Chip
25
MAIN & POWER Unit
25
Printed Wiring Board Assemblies
25
Main Pwb Side a
26
Main Pwb Side B-Chip
27
Chapter 10. Schematic Diagram
31
Description of Schematic Diagram
31
Indication of Resistor & Capacitor
31
Schematic Diagram
31
Voltage Measurement Condition
31
MAIN Unit
32
Led Rc Unit
34
Power Unit
35
Parts Guide
36
Supplied Accessories
50
Packing Parts
51
Explode View
53
