Important: Only use the screws provided to mount the set onto a wall bracket. When using a wall bracket,
please ensure the screws in the back of the TV set are not over tightened. Failure to use the correct screws
may lead to damage.
Fitting Wall Bracket Spacers
SECURING THE TV TO A WALL
When wall mounting the TV, ensure that the mains power cable and any other cables connected to
the TV from your external devices do not interfere with your wall bracket. On some models, you will
fi nd ‘spacers’ in the accessories pack that should be fi tted in between the rear of the TV and the wall
bracket in order to prevent trapping any cables. See Fig 1 below.
4 x Screw including D18 washer
4 x Spacer

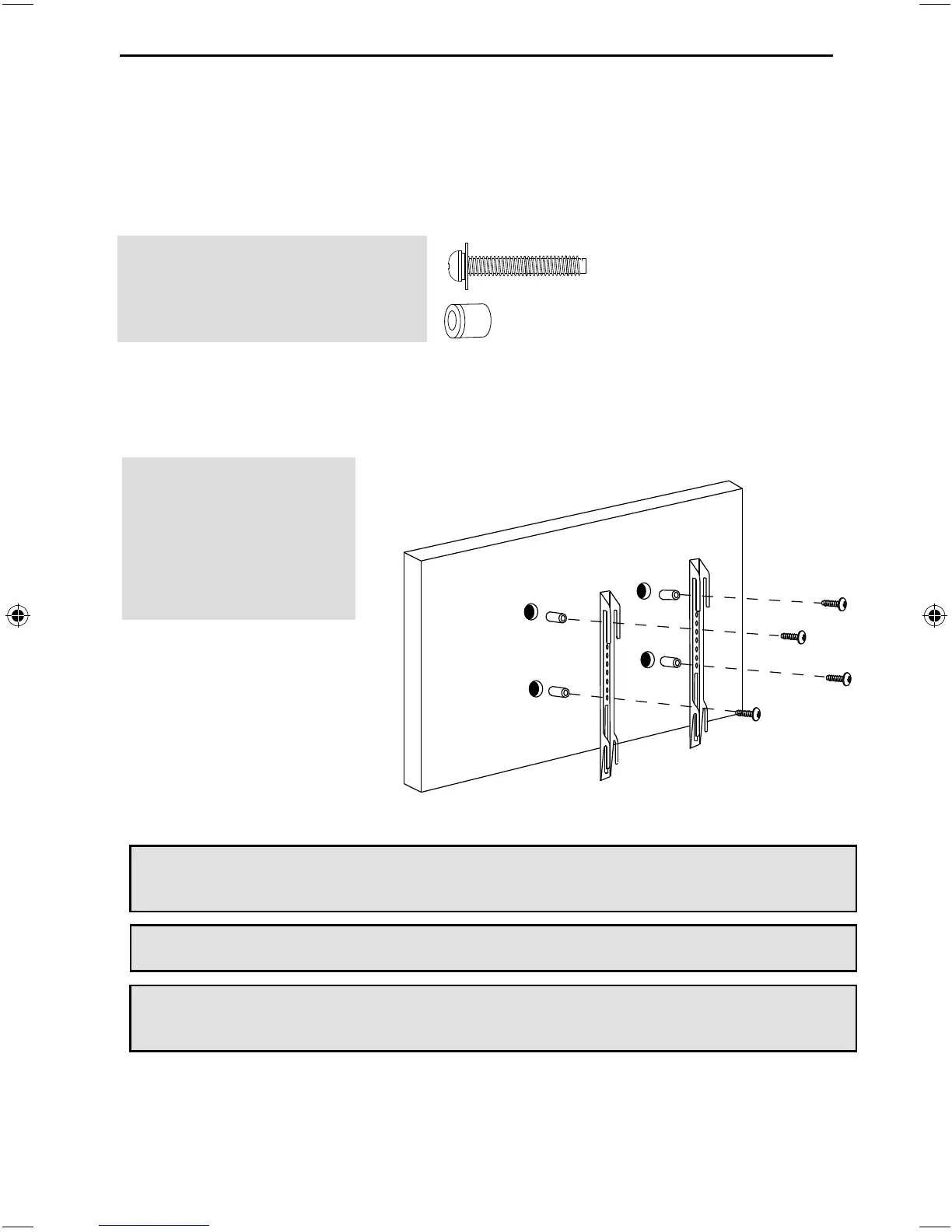

These should be used as indicated in the picture below. Ensure that the screws are not overtightened as
this may cause damage to the set.
Note: the wall bracket type
shown in the diagram is for
illustration purposes only,
other brackets may be used
and it is recommended that the
spacers and screws are tested
to see if they fi t correctly
before fi nal assembly.
Note: Spacers and screws are not supplied for all models, refer to the Quick Start Guide for more
information.
Note: Due to the use of rear facing HDMI connectors, right angled HDMI adapters can be utilized to
reduce the space required behind the set to allow the cable to bend safely. There are different types of
HDMI angled connectors, ensure that the one being used is suitable for the cable/socket types.
Fig 1.
