SCANNER FUNCTIONS
65
Outline of Button Manager
Button Manager is a software utility that allows you to use the scanner function at the
machine. Button Manager allows you to configure six sets of scanning settings as a
scan menu on the machine.
To view Help for a setting, click the button in the upper right-hand corner of the
window and then click the setting.
To begin scanning using the machine's operation panel, settings must be
established in the Control Panel after Button Manager is installed. For information on
installing Button Manager and establishing the Control Panel settings, see
"SETTING UP BUTTON MANAGER" (p.42). For information on scanning using the
machine's operation panel, see "SCANNING USING THE KEYS ON THE
MACHINE" (p.62).
You can use Button Manager to select and change the functions of the six scan
menus. Refer to "Button Manager settings" (p.64).

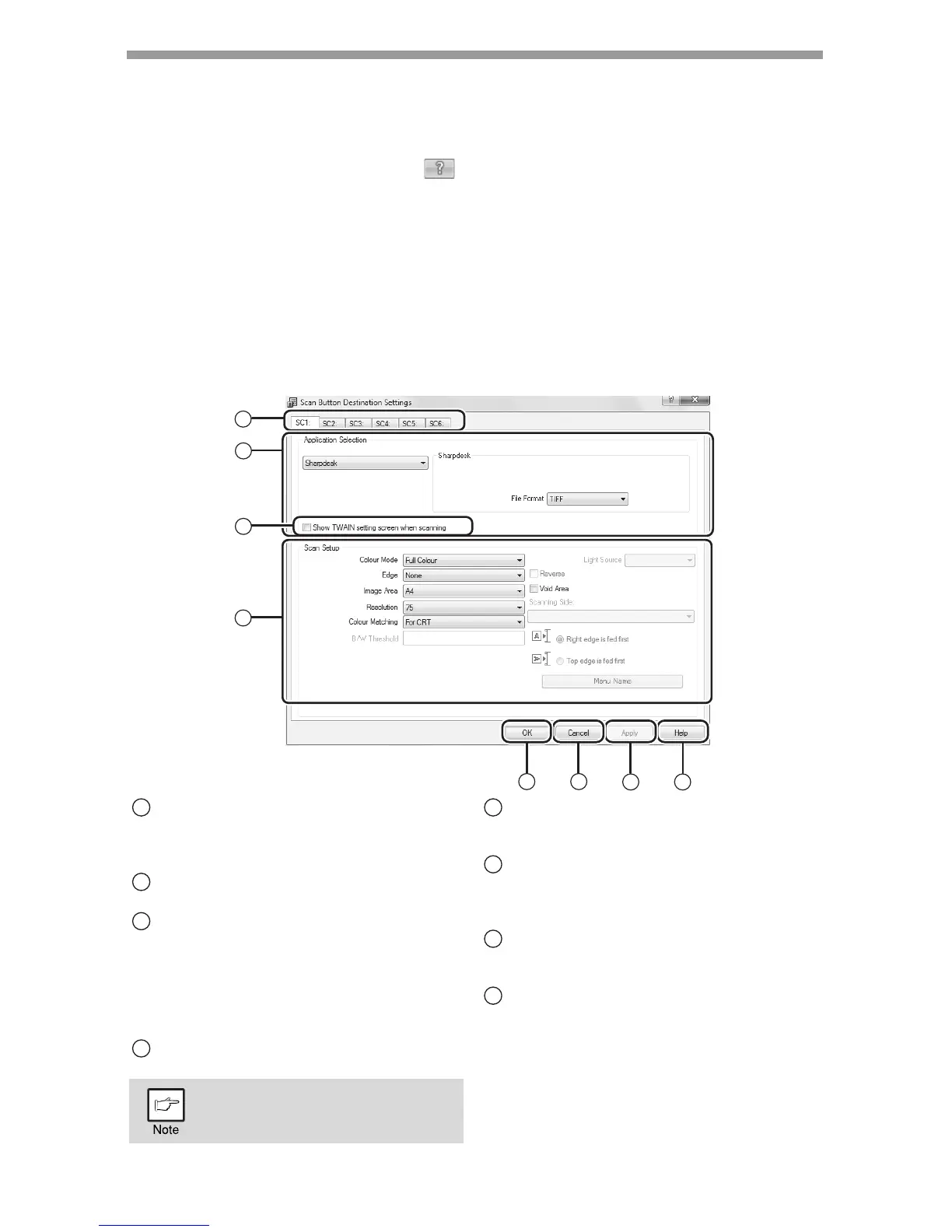

Tab
Click to set scan menu options. Each
tab contains scan settings for the scan
menu.
"Application Selection" area
Select the start-up application here.
"Show TWAIN setting screen when
scanning" Checkbox
You can select whether or not the
TWAIN screen is shown. When the
checkbox is selected, the TWAIN screen
appears when scanning is executed to
let you adjust the scanning conditions.
"Scan Setup" area
Set the scan conditions.
"OK" button
Click to save your settings and exit the
dialog box.
"Cancel" button
Click this button to exit the dialog box
without making any changes to the
settings.
"Apply" button
Click to save your settings without
closing the dialog box.
"Help" button
Click this button to display the help file
for Button Manager.
2
3
4
5 6
7
8
1
Some applications may limit
your choice of settings.
1
2
3
4
5
6
7
8

Sharp MX-B201D Specifications

General

Duplex printing	Yes
Print technology	Laser
Print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Time to first copy (black, normal)	8 s
Copy speed (black, normal, US Letter)	20 cpm
Scan to	Image
Scan drivers	TWAIN
Scanner type	Flatbed scanner
Grayscale levels	256
Maximum scan area	216 x 356 mm
Scan speed (black)	20 inch/min
Image formats supported	BMP, JPG, TIF
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	100
Digital sender	-
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	PCL 5e, PCL 6
Paper input type	Cassette, Paper tray
Total input capacity	250 sheets
Total output capacity	200 sheets
Maximum input capacity	550 sheets
Paper tray media types	Card stock, Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
Paper tray media weight (imperial)	15 - 21 lbs
Display	LCD
Product color	Gray
Market positioning	Business
Ethernet LAN	No
Mobile printing technologies	Not supported
Supported network protocols (IPv4)	TCP/IP, IPV4
Standard interfaces	USB 2.0
Optional connectivity	Ethernet
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	12.5 W
Power consumption (average operating)	1000 W
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64
Bundled software	Sharpdesk\\r Button Manager\\r Composer
Sustainability certificates	RoHS, ENERGY STAR

Weight and Dimensions

Width	- mm
