Asterisk - OpenStage Family, Administration Manual
4-17
Examples and HowTos
An LLDP-Med Example
4.4 An LLDP-Med Example
The following example illustrates the mode of operation of LLDP-MED. In order to evoke a re-
action from LLDP-MED, the LAN switch has been set to auto-negotiation, whereas the phone’s
LAN port (see Section 3.2.1, “LAN Port Settings”) is set to 100Mbit/s, hence a fixed value. This
configuration error is discovered by LLDP-MED. The following sceenshots from the phone’s lo-
cal menu will show the error messages.

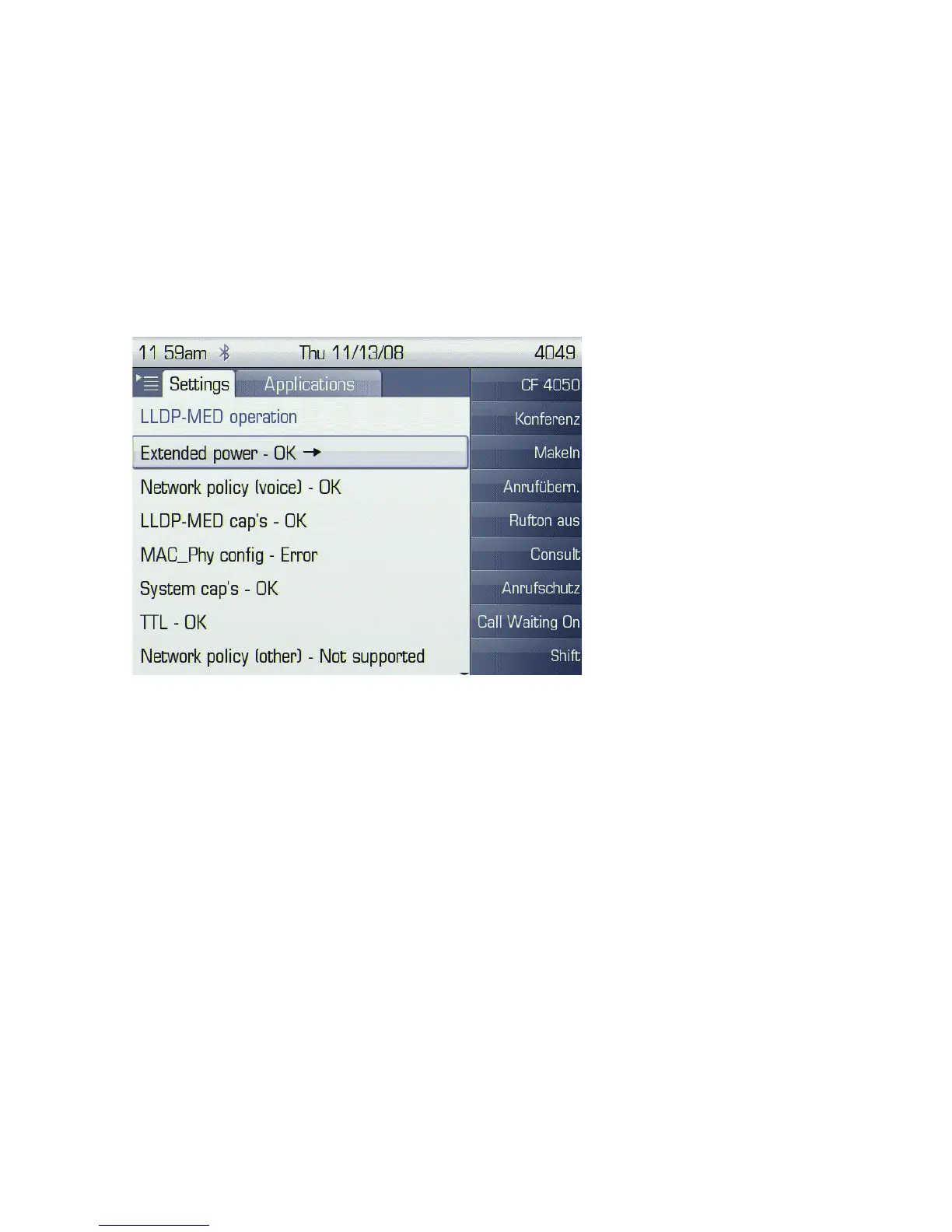

This screenshot shows the LLDP-MED operation submenu (see Section 3.2.3, “LLDP-MED
Operation”). Please note the status of MAC_Phy config.
When MAC_Phy config is selected, the details are displayed.
