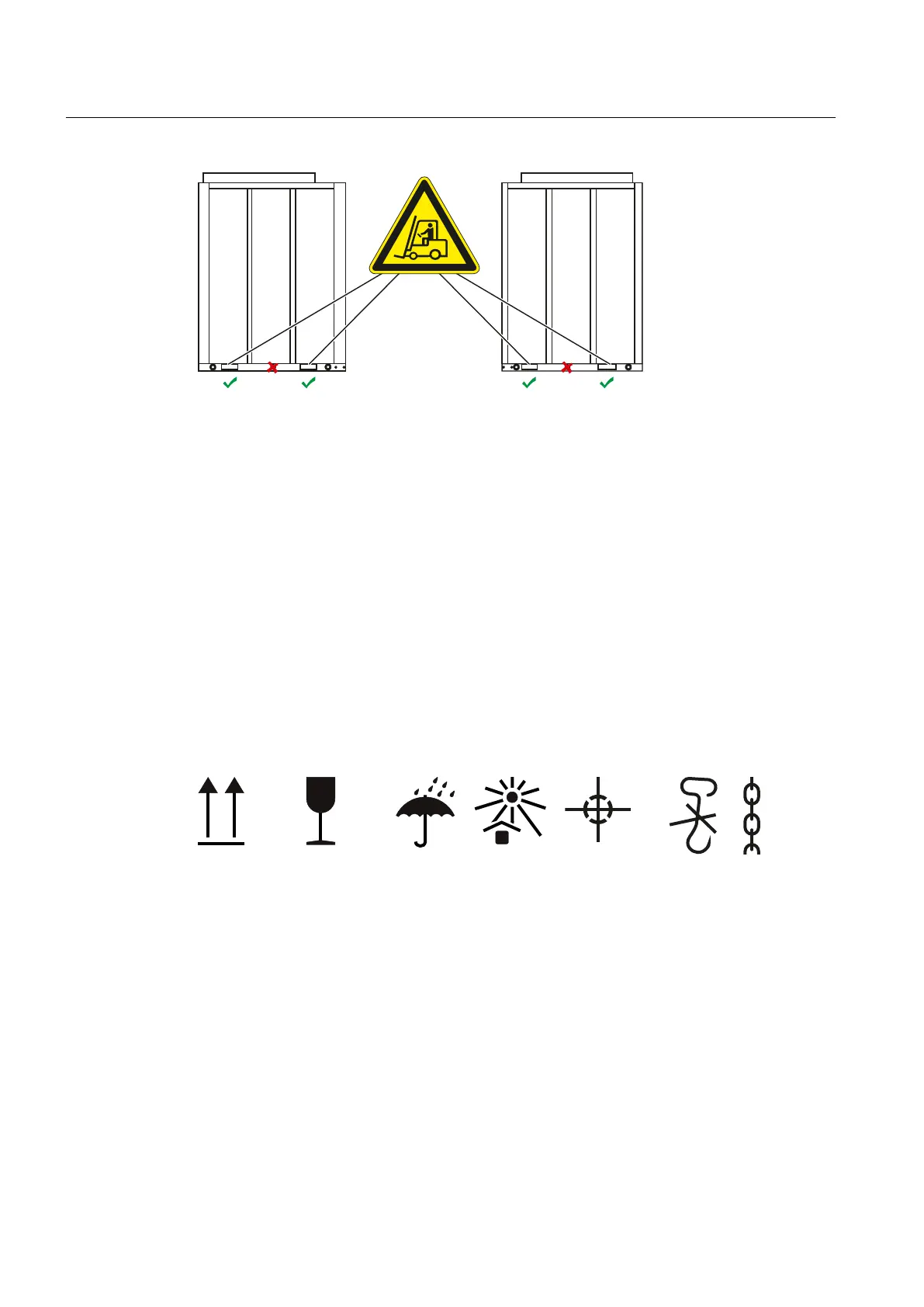

Figure 4-3 Proper Fork Lift Handling and Dimensions
4.5.5 Definition of a packed and unpacked device
The terms are defined as follows in the following part of the instructions:
● "Transportation unit" refers to the unit before it has been unpacked
● "Cabinet" refers to the unit after it has been unpacked
4.5.6 Transport markings
The packing differs depending on the transport type and size. If not otherwise contractually
agreed, the packaging corresponds to the packing guidelines for International Standards for
Phytosanitary Measures (ISPM).
Comply with the images shown on the packaging. Their meaning is as follows:
This
way up
Fragile goods Keep dry Keep cool Center of
gravity
Do not use
hand hook
Attach here
4.5.7 Transport requirements
● Persons driving cranes and fork-lift trucks must hold appropriate licenses.
● You must observe the specifications to avoid transport damage to the enclosure and you
must maintain the permissible climatic conditions during operation in accordance with
IEC 60721-3-1/2/3. Please also observe the "Technical specifications" instructions.
