Preparing to use your phone
Gigaset SL100/SL150 colour / IM_en / A31008-M1572-R121-2-7619 / starting.fm / 28.10.05

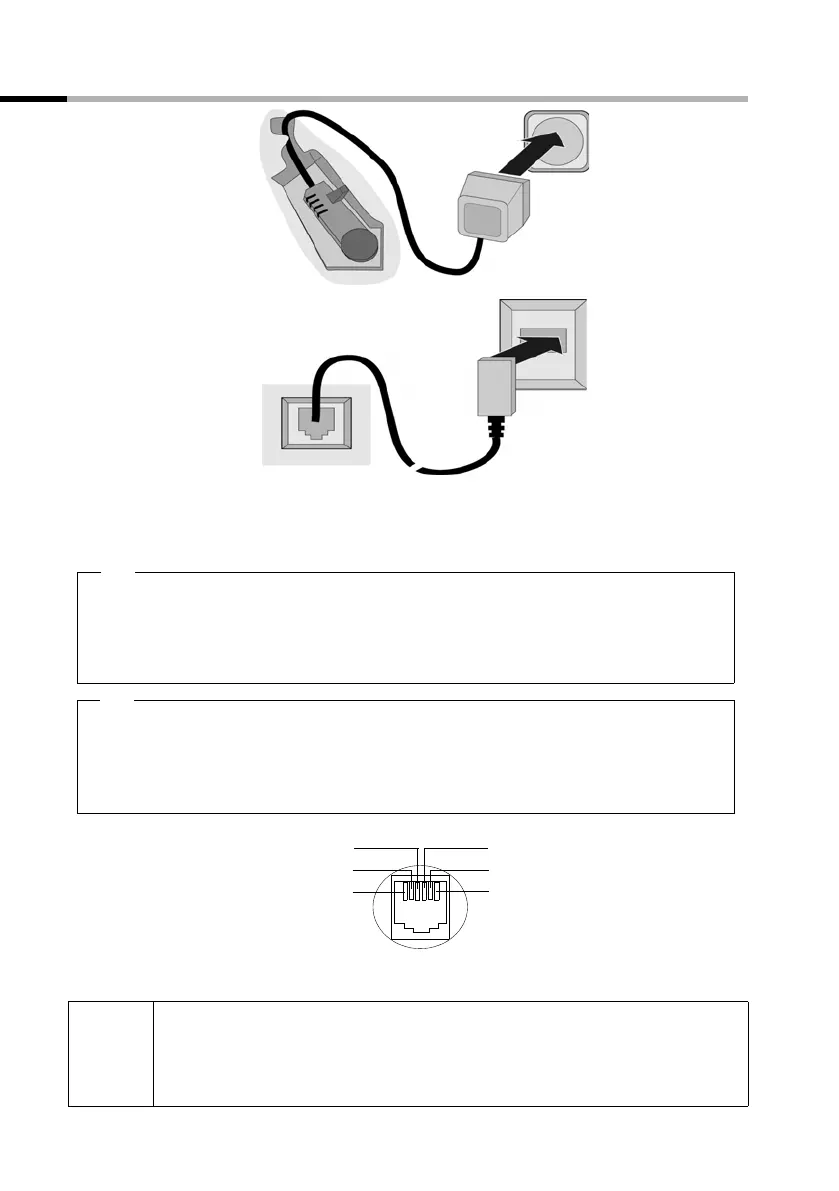

Connecting the base station
1. Underside of base (charging cradle not shown) (detailed view)
2. Power supply unit 230 V
3. Phone jack with phone cord
i
◆ Keep the power supply unit plugged in at all times to ensure your
phone is ready for use whenever you need it.
◆ If you ever purchase a phone cord from a store, ensure that the phone
conductors are correctly connected (3-4 connection).
1
3
2
1
1
1
◆ Fit the small jack on the phone cord into the socket in the base station (it clips into
place),
◆ Place cord in cable recess,
◆ Fit phone jack into phone outlet.
◆ Insert the small jack on the power cord into the socket on the underside of the
base station,
◆ Place cord in cable recess,
◆ Plug the power supply unit into your power outlet.
2.
3
2
1
4
5
6
1
2
3
4
5
6
unassigned
unassigned
a
b
unassigned
unassigned
Internal phone jack connections:
1.
