Example 2
The clock’s output is to be switched on every day from 08:00 hours to
13:00 hours and from 15:00 hours to 18:30 hours. You need 2 cams for
this:
B01:No1
Day= Mo..Su
On =08:00
Off=13:00
B01:No2
Day= Mo..Su
On =15:00
Off=18:30
On=’1’=voltageconnected
Off=’0’=novoltage

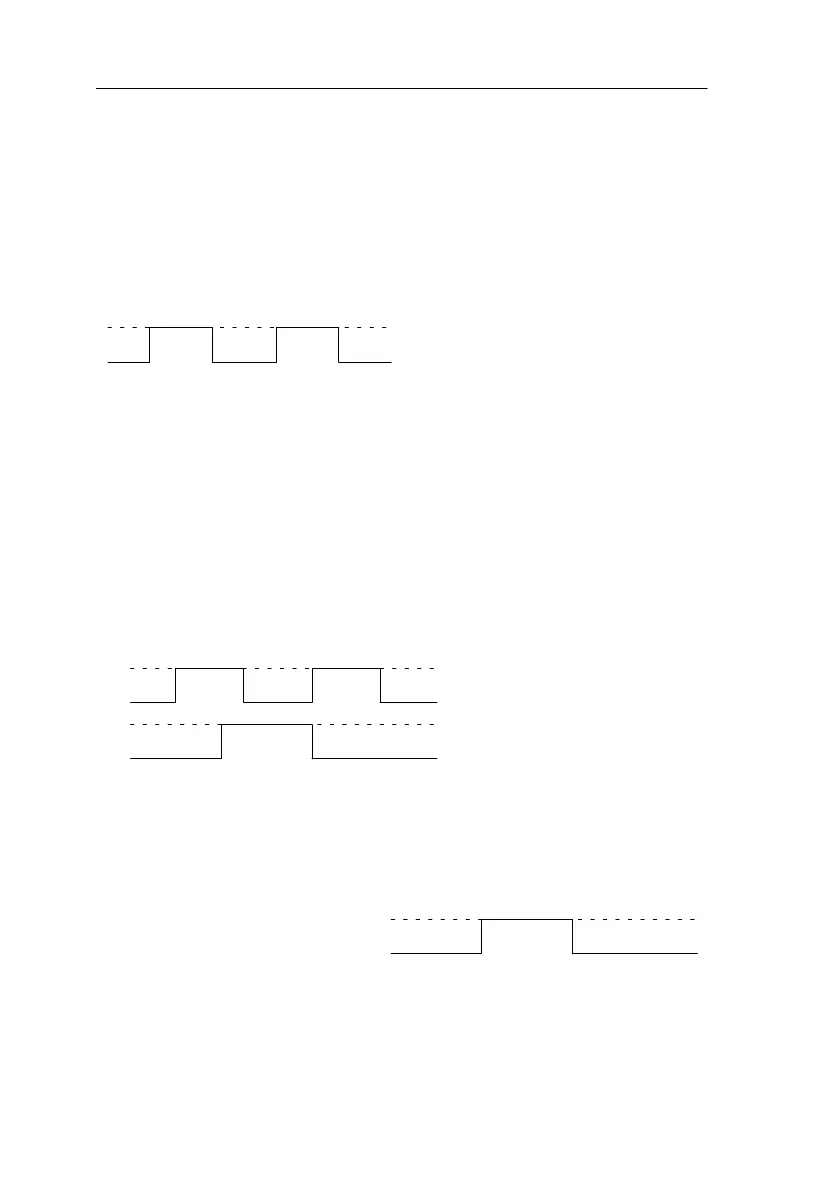

8:00 13:00 15:00 18:30
Example 3
The clock’s output is to be switched on every day from Monday to Satur-
day from 08:00 hours to 13:00 hours and from 15:00 hours to 18:30 hours.
In addition, it is also to be switched on on Sunday between 11:00 hours
and 15:00 hours. You need 3 cams for this:
B01:No1
Day= Mo..Sa
On =08:00
Off=13:00
B01:No2
Day= Mo..Sa
On =15:00
Off=18:30
B01:No3
Day= Su
On =11:00
Off=15:00
Mo ... Sa
8:00 13:00
15:00 18:30
Su
11:00 15:00
Example 4
The clock’s output is to be switched on on Monday at 22:00 hours and off
on Tuesday at 6:00 hours.
B01:No1
Day= Mo
On =22:00
Off=––:––
B01:No2
Day= Tu
On =––:––
Off=06:00
Mo
22:00
Tu
06:00
Programming LOGO!

Siemens LOGO! 230 RC Specifications

General

Inputs	8 digital inputs
Outputs	4 relay outputs
Input voltage type	AC
Width	72 mm
Height	90 mm
Depth	55 mm
Number of analog inputs	0
Number of analog outputs	0
Operating temperature	0 °C to 55 °C
Storage temperature	-40 °C to 70 °C
Protection class	IP20
Digital inputs according to EN 61131-2	Type 1
Weight	approx. 210 g
Program Memory	400 function blocks
Dimensions	72 mm x 90 mm x 55 mm
