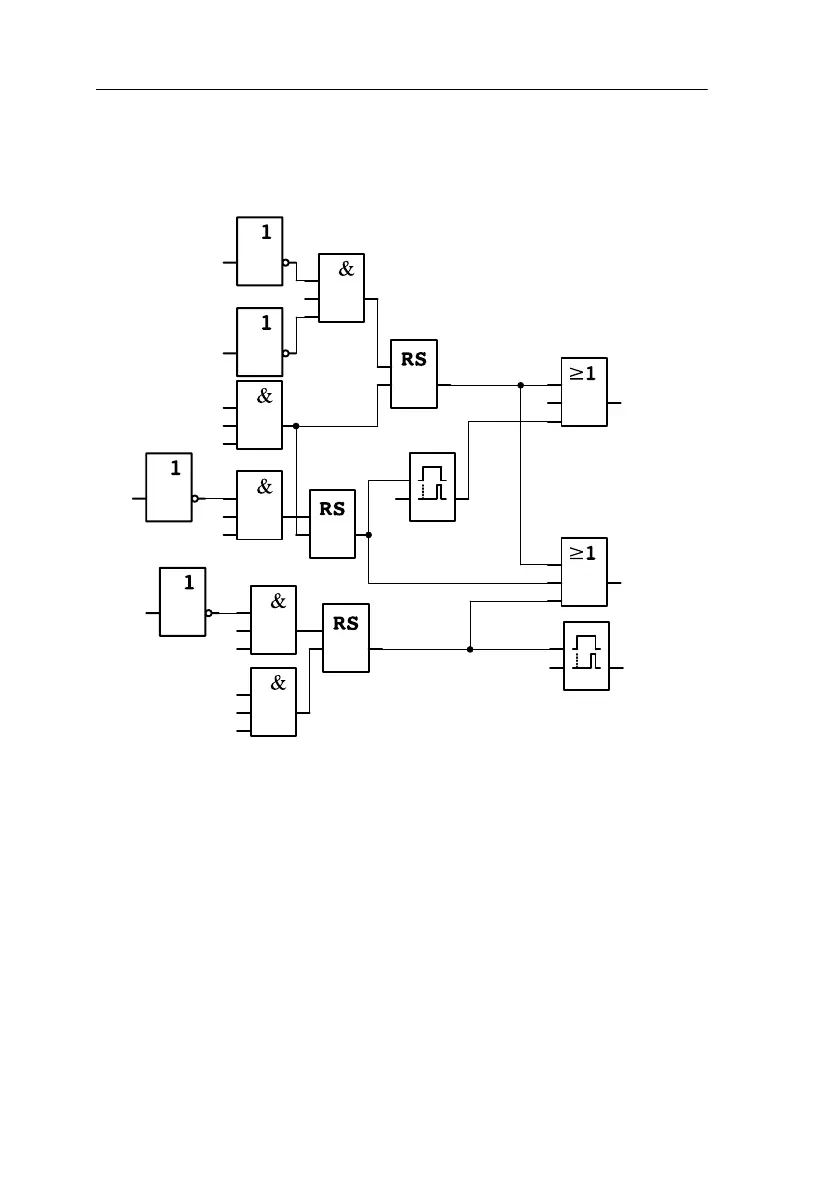

5.4.3 Enhanced LOGO! solution
In our enhanced solution, the gate will automatically open again when the
safety bar operates.
x
x
I6
Safety bar
I5Gate is closed
Q2
I3
I4
Gate is open
Stop switch
x
I1
Q2
Open start switch
T=
5 s
Q1
Open
T=
5 s
x
Q2
Close
I3
I6
I5
I2
Q1
Safety bar
Gate is closed
Stop switch
Close start
switch
Q3
Flashing
light
Applications

Siemens LOGO! 230 RC Specifications

General

Inputs	8 digital inputs
Outputs	4 relay outputs
Input voltage type	AC
Width	72 mm
Height	90 mm
Depth	55 mm
Number of analog inputs	0
Number of analog outputs	0
Operating temperature	0 °C to 55 °C
Storage temperature	-40 °C to 70 °C
Protection class	IP20
Digital inputs according to EN 61131-2	Type 1
Weight	approx. 210 g
Program Memory	400 function blocks
Dimensions	72 mm x 90 mm x 55 mm
