The ventilators are controlled by flow monitors. If no air flow is detected
after a short waiting time has elapsed, the system is switched off and a fault
is reported. You acknowledge this by pressing the stop switch.
In addition to the flow monitors, the ventilation monitoring system requires
an evaluation circuit with a number of switching devices. The evaluation
circuit can be replaced by a single LOGO! module.

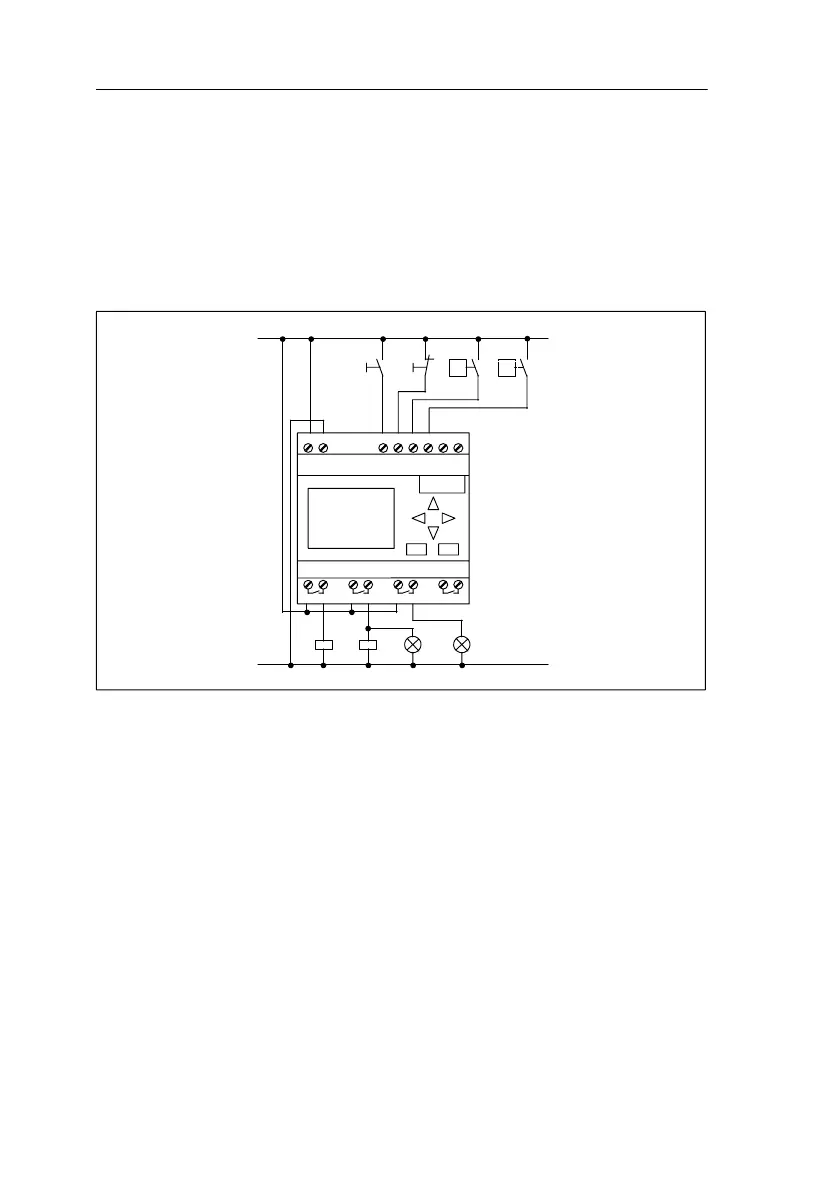

Wiring of the ventilation system with LOGO! 230RC
L1N I1 I2 I3 I4 I5 I6
Q1 Q2 Q3 Q4
SIEMENS
K1 K2
S1
L1
N
S2 S3
v>
v>
H1 H2
S0
LOGO! 230RC
Exhaust ventilator Fresh air ventilator
Components used
S K1 Master contactor
S K2 Master contactor
S S0 Stop switch
S S1 Start switch
S S2 Flow monitor
S S3 Flow monitor
S H1 Warning light
S H2 Warning light
Applications

Siemens LOGO! 230 RC Specifications

General

Inputs	8 digital inputs
Outputs	4 relay outputs
Input voltage type	AC
Width	72 mm
Height	90 mm
Depth	55 mm
Number of analog inputs	0
Number of analog outputs	0
Operating temperature	0 °C to 55 °C
Storage temperature	-40 °C to 70 °C
Protection class	IP20
Digital inputs according to EN 61131-2	Type 1
Weight	approx. 210 g
Program Memory	400 function blocks
Dimensions	72 mm x 90 mm x 55 mm
