4.12.3 LTE-Mode
LTE-Mode was specifically designed to simplify engineering. Unlike with S-Mode,
individual connections (group addresses) need not be created in the tool. The
devices autonomously establish connections.
The following circumstances are predefined:
● Every device or subdevice is located within a zone
● Every data point (input or output) is assigned to a zone
● Every data point (input or output) has a precisely defined "name"

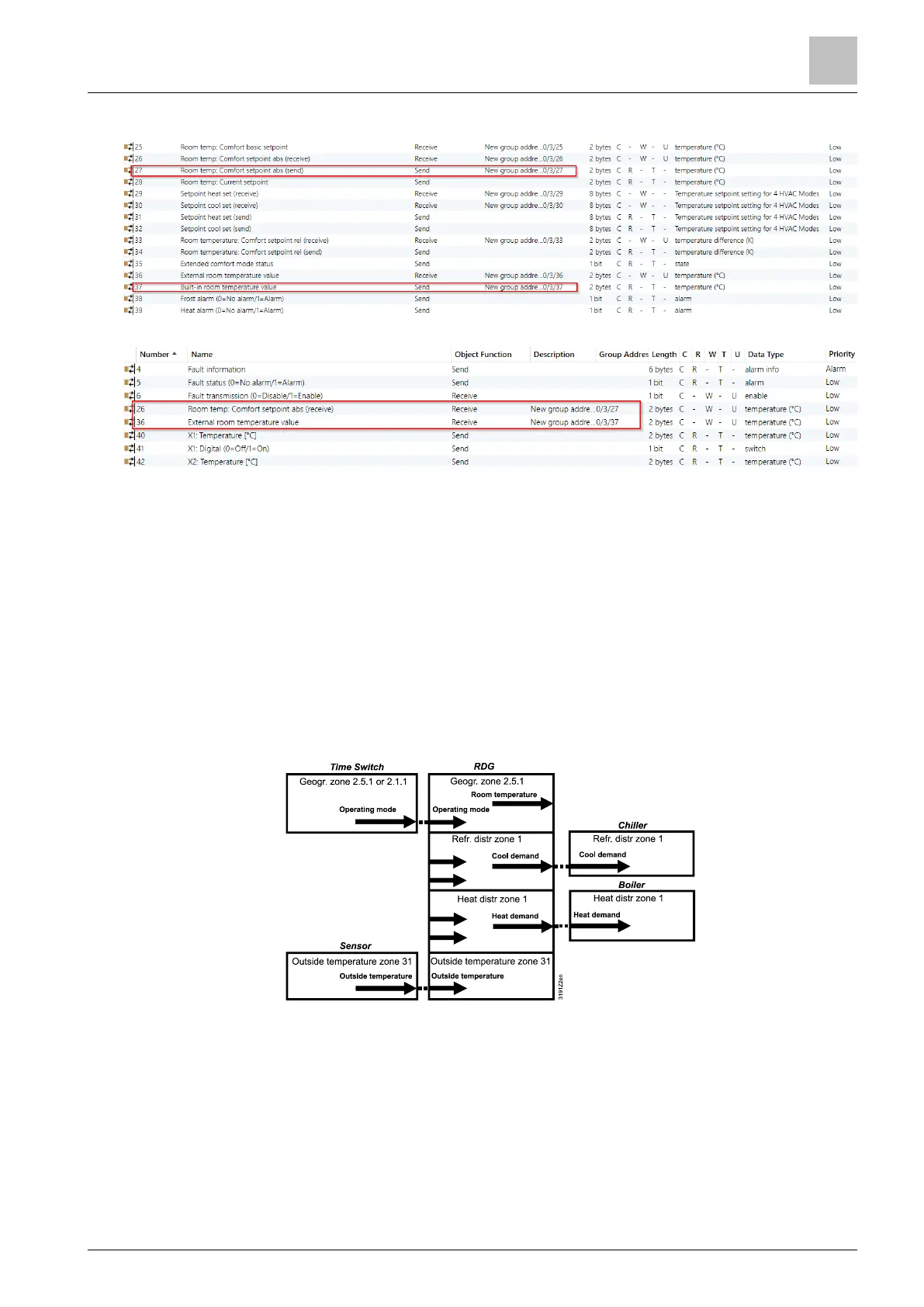

Whenever an output and an input with the same "name" are located in the same
zone, a connection is established automatically, as shown in the following diagram.
● For a detailed description of KNX (topology, bus supply, function and setting of
LTE zones, filter tables, etc.), see "Communication via the KNX bus for Synco
700, 900 and RXB/RXL, Basic Documentation [➙ 6]" [7]
● LTE-Mode data points and settings are described in the Synco Application
Manual [➙ 6] [14]
● To engineer and commission a specific system, use the Synco700 planning
and commissioning protocol [➙ 6] (XLS table in HIT, [8])
