Siemens RDG20 KN Series User Manual

Functions
Application overview
4
46 | 186
A6V11545892_en--_e

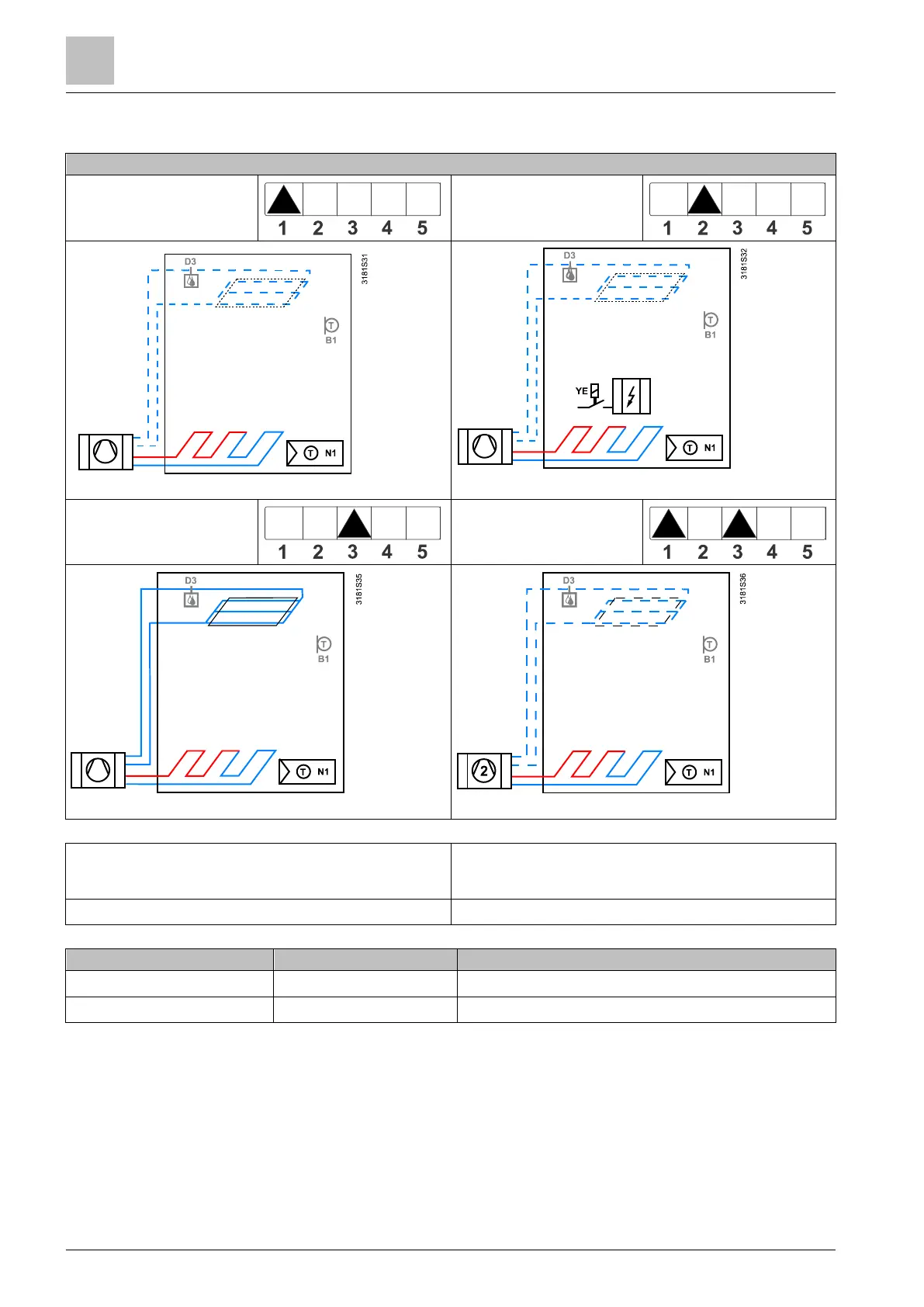

4.4.3 Application for heat pump systems
Applications, DIP setting, control outputs
● Heated or cooled with
compressors
● Heated or cooled with
compressors with electric
heater
Using RDG2..KN, RDG2..T
Using RDG2..KN, RDG2..T
● Heated and cooled with
compressors
● 2-stage heated or cooled
with compressors
Using RDG2..KN, RDG2..T
Using RDG2..KN, RDG2..T
N1 Thermostat
Output Y10/Q1: Heating or heating/cooling
Output Y20/Q2: Cooling only (heating/cooling)
B1 Return air temperature sensor or external room temperature
sensor (optional)
YE Electric heaters
D3 Dewpoint sensor
Product No.
Control output
Fan
RDG20..
On/Off
Disabled, 1-speed, 3-speed, DC 0…10 V
RDG26..
On/Off
Disabled, DC 0…10 V
