Dimension drawings
9.3 SCALANCE XR552-12M
SCALANCE XR-500
Operating Instructions, 05/2017, A5E03275845-11
97
9.3
SCALANCE XR552-12M

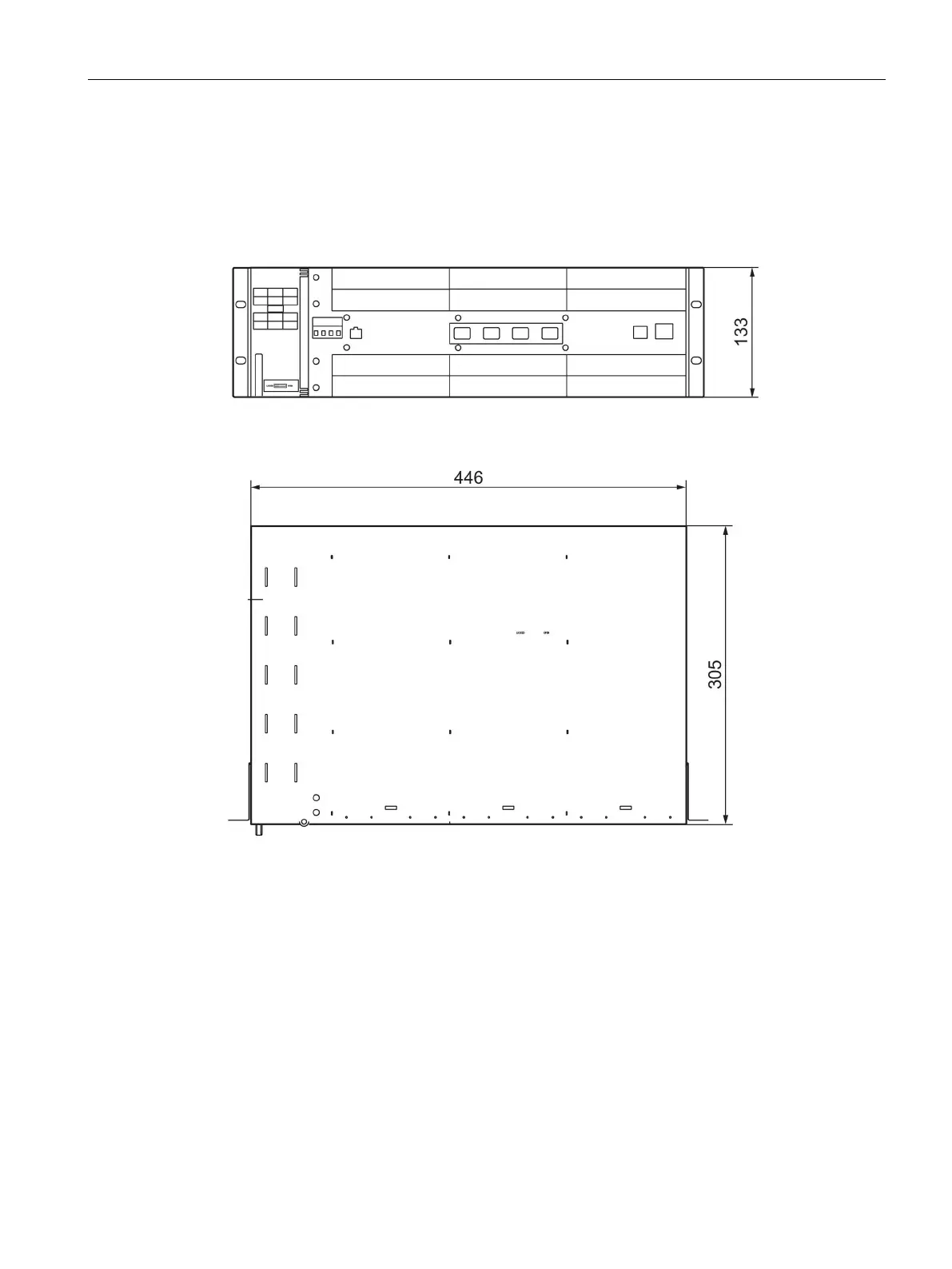

View from front and above
Dimensions are specified in mm.
9.4
Mounting brackets for use on ships
Introduction
To install a SCALANCE XR-500 on a ship horizontally, you require special mounting
brackets.
Below you will find the design drawing for making the mounting brackets.
