Siemens Application Guide «Fire Mode» CM1A5192en_01
Building Technologies Essential Service Mode (in-depth information) 23.10.2007

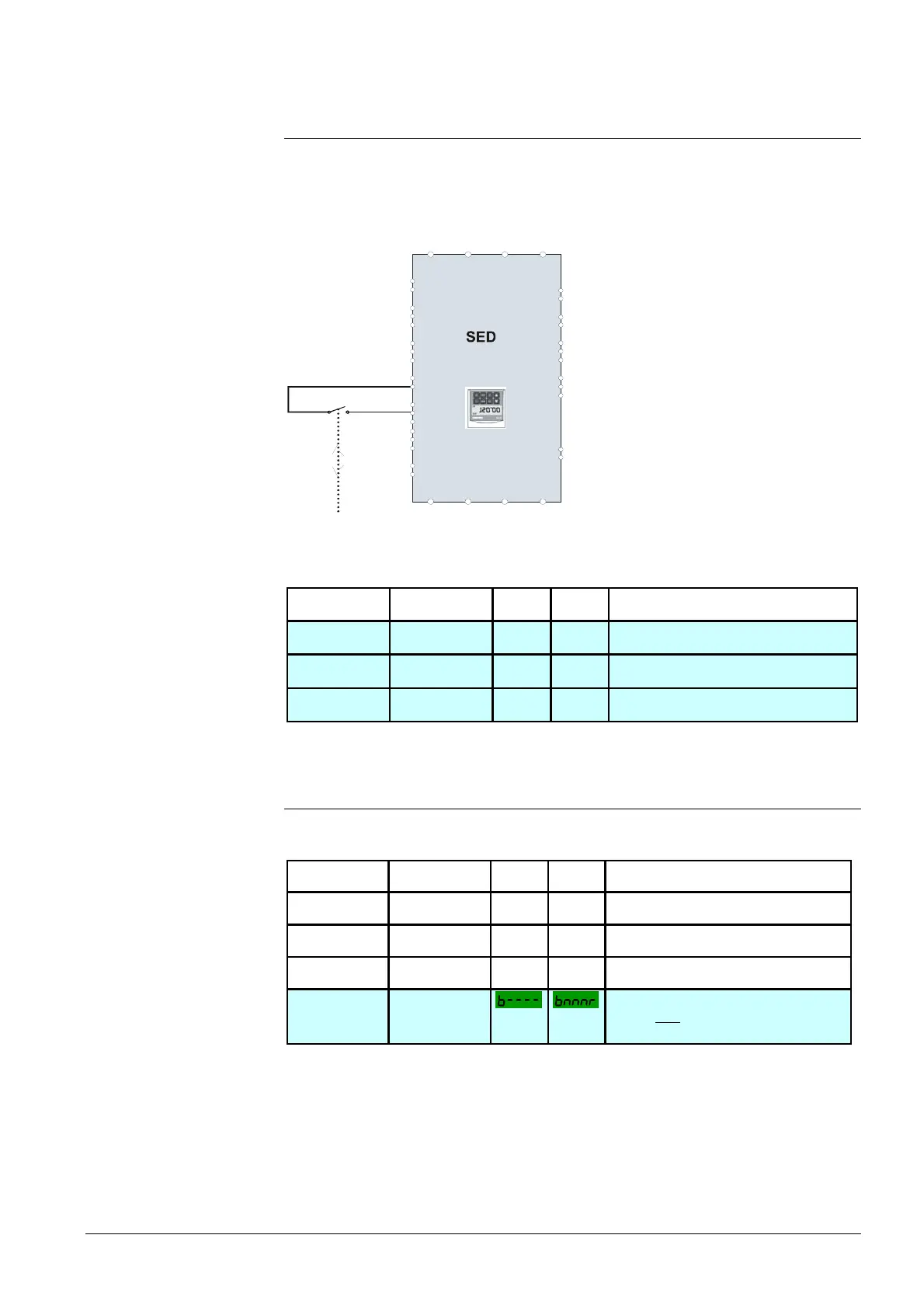

6.1 Assigning the ESM function to a DIN
(Digital Input)
In accordance with the standards, all functions required of ESM can be assigned to
the same DIN and therefore eliminate the need for any additional inputs.
Our recommendation is to use DIN2 for ESM. However, any one of the DIN’s can
be used (DIN1~DIN6)
L1 L2 L3
UVW
PE
PE
DC 10V
DC 0V
AIN 2
11
10
2
28
9
DC 0V
DC 24V
AIN1
4
3
2
5
6
7
8
16
17
14
15
PTC
PTC
DIN 1
DIN 2
DIN 3
DIN 4
DIN 5
DIN 6
1
2
12
13
26
27
AOUT1
AOUT2
DOUT1
20
21
22
DOUT2
23
24
25
29
30
RS-485
2
Fire Control Panel
Ensure DIN2 is OPEN during commissioning.
Parameter Index Default Set to Function and description
P0003 - 1 3
A
ccess Level
- Set access level to Expert
P0702 in 000 12 99 Function of DIN2
in001 0 99
Enable BICO parameterisation
P1270 in000 0.0 722.1 Source command for ESM
in001 0.0 722.1
Defines source as DIN2
6.2 Activating P1271 (ESM Control Word)
This should be carried out using the BOP (Basic Operating Panel)
Parameter Index Default Set to Function and description
P0003 - 1 3
A
ccess Level
- Set access level to Expert
P0702 in 000 12 99 Function of DIN2
in001 0 99 Enable BICO parameterisation
P1270 in000 0.0 722.1 Source command for ESM
in001 0.0 722.1 Defines source as DIN2
P1271 in000
bnnnr
ESM Control word 1
Press? ( once
) and bnnn
r
will appear and
ESM control word is activated
Once P1271 has been activated, the ESM control word will take priority once the
DIN assigned to ESM/Fire Mode is enabled.
