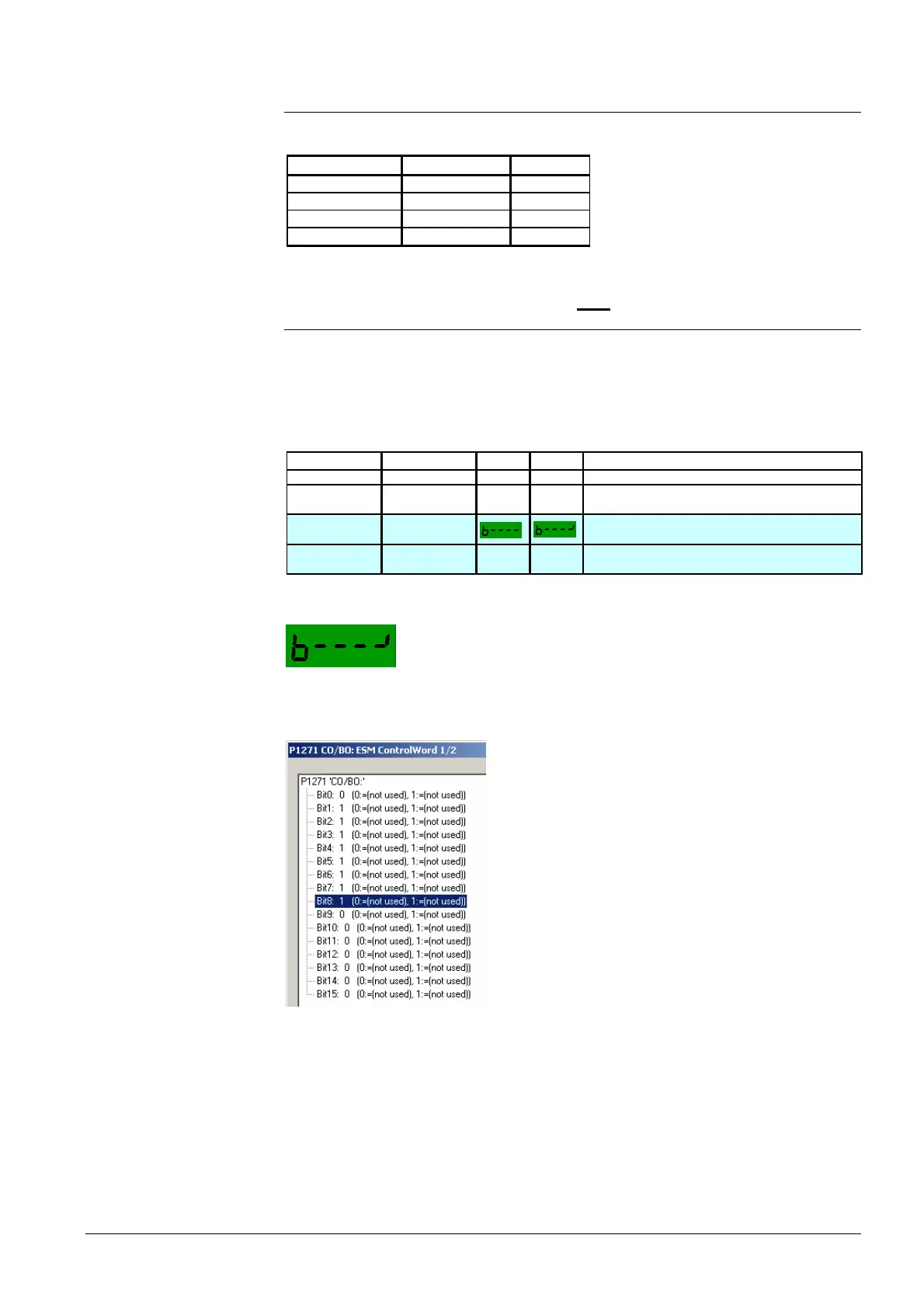

6.5 PID Control in ESM/Fire Mode
It is possible to configure PID Control as follows:
Standard Mode ESM/Fire Mode Chapter
Yes Yes 6.5.1
Yes No 6.5.2
No Yes 6.5.3
No No 6.5.4
6.5.1 PID Control in both ESM and Standard Mode
Normal operation mode PID control should be configured as described in the
Commissioning Guide.
P2200 in000/in001= 1.0 or whatever the source is.
P22xx~P23xx PID parameters set as per application ESM/Fire Mode:
Paramete
r
Index Default Set to Function and description
P0003 - 1 3
A
ccess Level
Set access level to Expert
P1271 in001 ESM Control word1
Activate bit 08 and de-activate bi12 to enable PID in ESM
P2xx
x
Configure PID related parameters
P2201~P23xx accordingly to application
Display of P1271 in001 (ESM Control word 2) on the BOP
Alternatively, use EasyComm to set the correct bit.
