CPU 1515SP PC2 (F/T/TF)
Operating Instructions, 09/2018, A5E42603425-AA
121
Dimension drawings
13
13.1
CPU 1515SP PC2
This section contains a dimension drawing of the module mounted on a mounting rail.
Always observe the specified dimensions for installation in cabinets.
Dimension drawings of the CPU 1515SP PC2

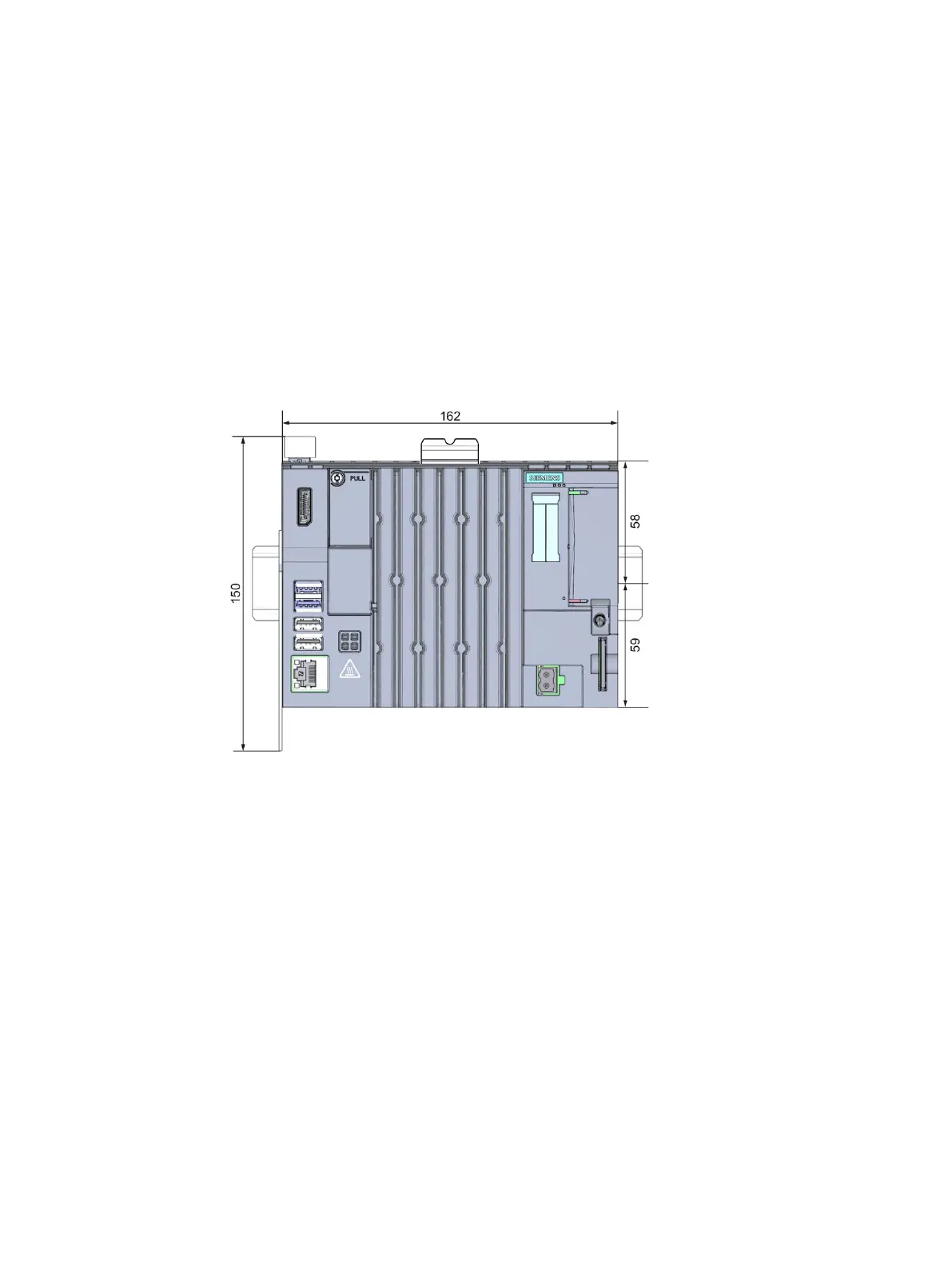

Figure 13-1 Dimension drawing CPU 1515SP PC2, front view
