Overview
1.3 Configuration of the devices
Comfort Panels
20 Operating Instructions, 07/2017, A5E36770603-AB
Side view

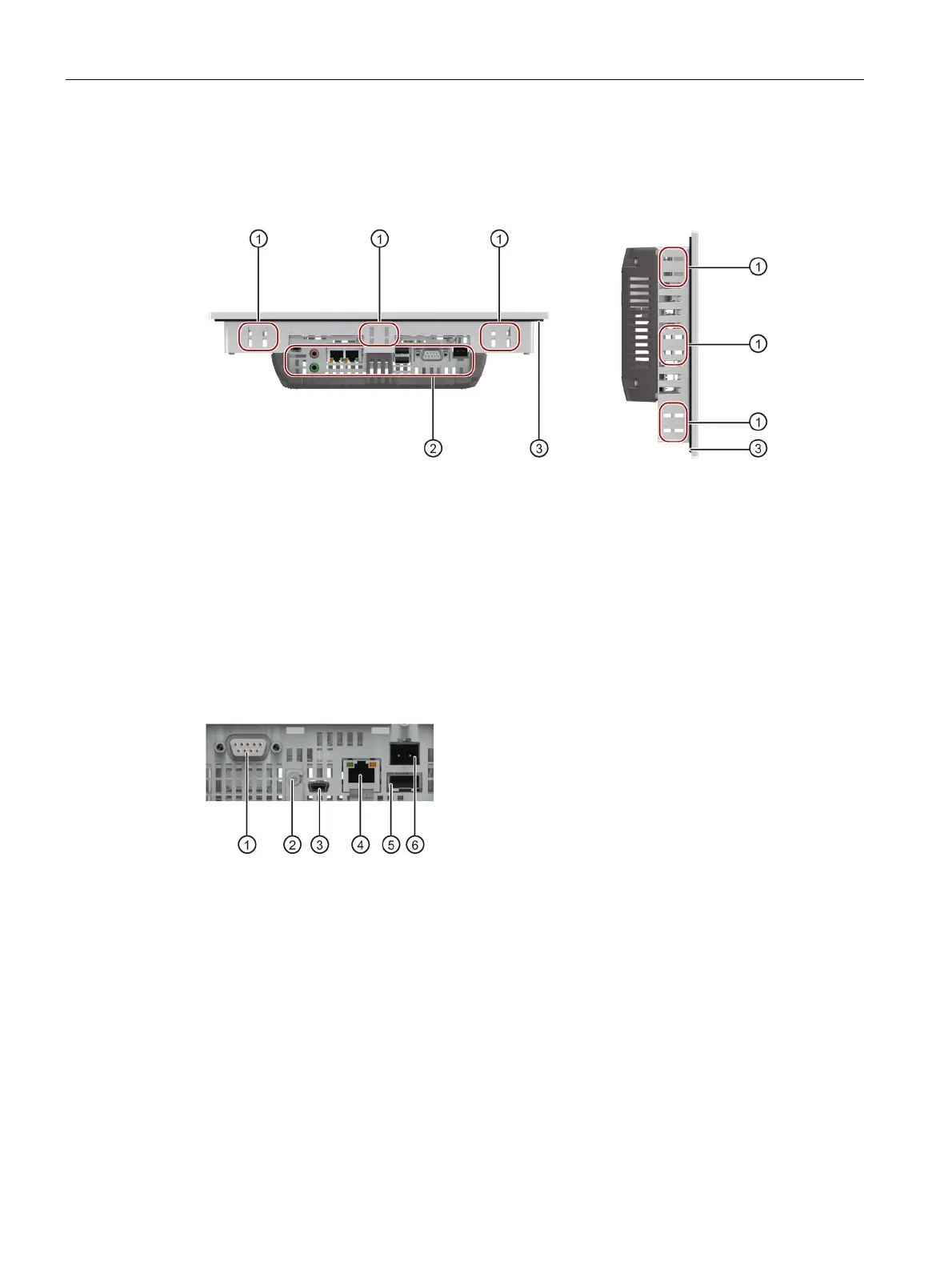

The figure below shows the side views of the HMI devices with the Comfort V1 devices,
KP700 Comfort and TP700 Comfort, as examples.
①
Cutouts for mounting clips
②
Interfaces
③
Mounting seal
1.3.3
Interfaces
Interfaces for the 4" models
The figure below shows the ports of the Comfort V1 devices, KP400 and KTP400 Comfort.
①
X2 PROFIBUS (Sub-D RS422/485)
④
X1 PROFINET (LAN), 10/100 Mb
②
Connection for equipotential bonding (ground)
⑤
X61 USB type A
③
X60 USB type Mini B
⑥
X80 power supply connector

Siemens SIMATIC HMI TP2200 Comfort Specifications

General

Brand	Siemens
Model	SIMATIC HMI TP2200 Comfort
Category	Control Panel
Language	English
