Mounting and connecting the HMI device
3.1 Preparing for installation
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
39

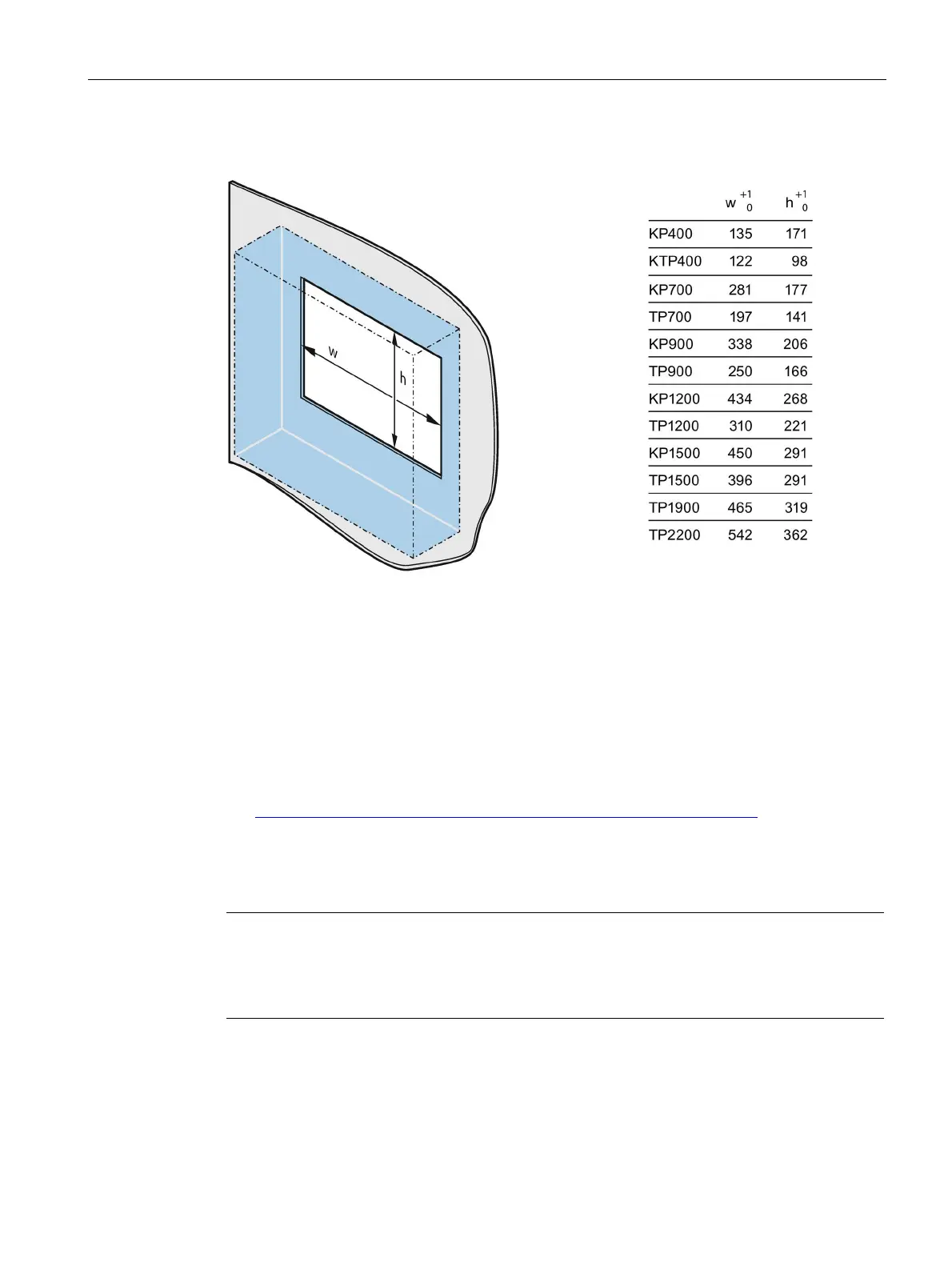

Dimensions of the mounting cutout
Width and height should be reversed accordingly when mounting in vertical format.
Labeling the function keys
Use the labeling strips to label the function keys of the HMI devices based on the project.
You will find labeling strip templates with a scale of 1:1 as a Word file:
● On the Internet at:
Downloads for Comfort Panels
(http://support.automation.siemens.com/WW/view/en/47182890/133100
)
● In the "Support" folder on the WinCC installation DVD
If you would like to make your own labeling strips, you can find the dimensions under
"Dimensions for labeling strips (Page 210)".
Note
Do not write on the keyboard to label the function keys.
Any printable and writable film can be used as labeling strip. The permitted thickness of the
labeling strip is 0.15 mm. Do not use paper labelin
g strips.
