CP 1243-1
Operating Instructions, 12/2016, C79000-G8976-C365-02
107
Dimension drawings
B
Note
All dimensions in the drawings of the CP are in millimeters.

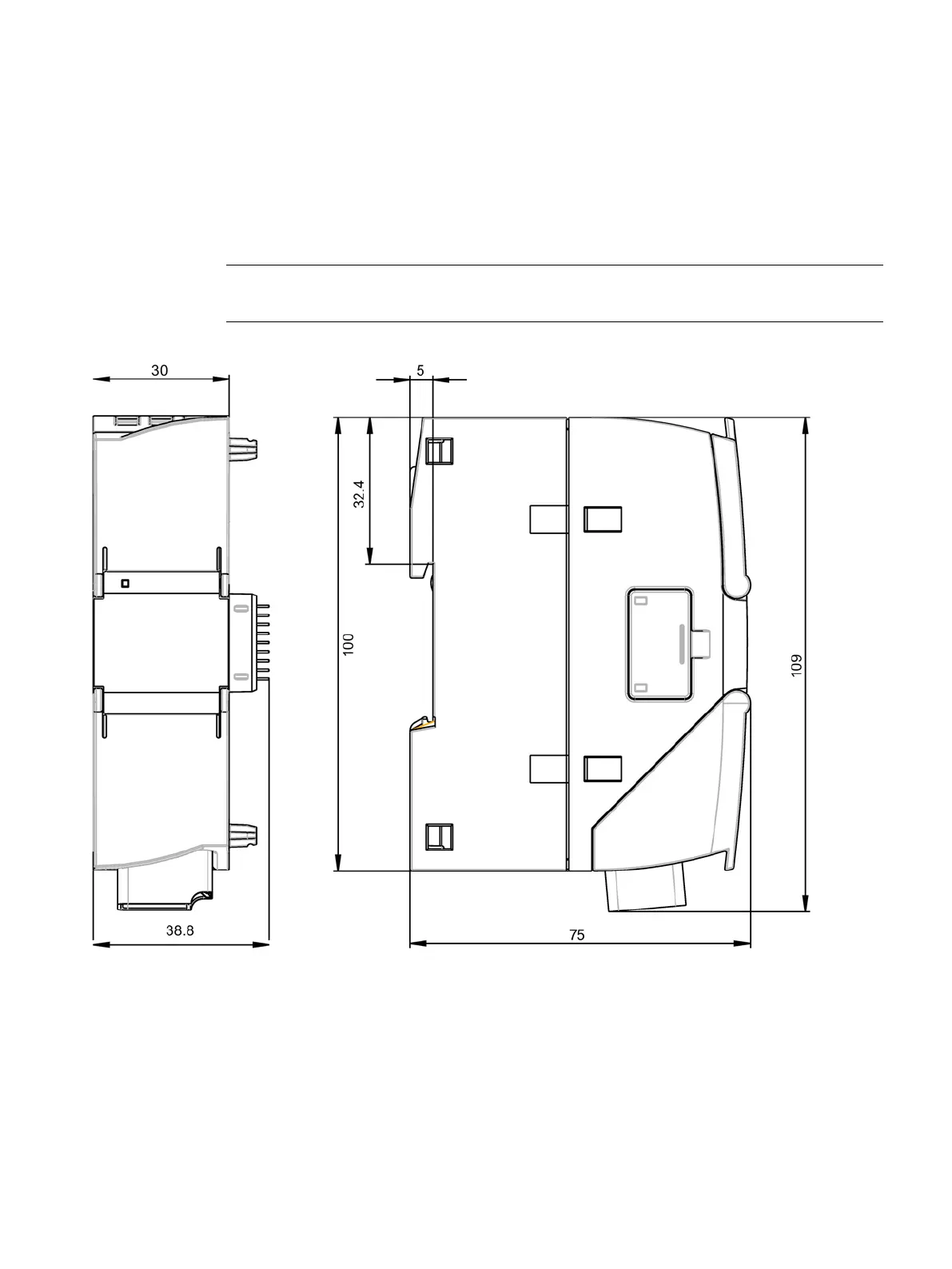

Figure B-1 Front view and side view left
