Fail-Safe Electronic Modules
8.3 F -Switch PROFIsafe Digital Electronic Module
ET 200pro Distributed I/O System - Fail-Safe Modules
108 Operating Instructions, 05/2007, A5E00394073-02
8.3.2 Terminal Assignment of the F-Switch PROFIsafe Electronic Module
Terminal Assignment on CM F-IO 2xM12 Connection Module
The following table contains the terminal assignment of the F-Switch PROFIsafe on the CM
F-IO 2xM12 connection module.
Sockets X1 to X2 are assigned twice. This enables you to implement a 1oo2 evaluation with
one connecting cable, e.g., channels 0 and 2 at connector X1.
The functional ground (FG) is located on the shield.

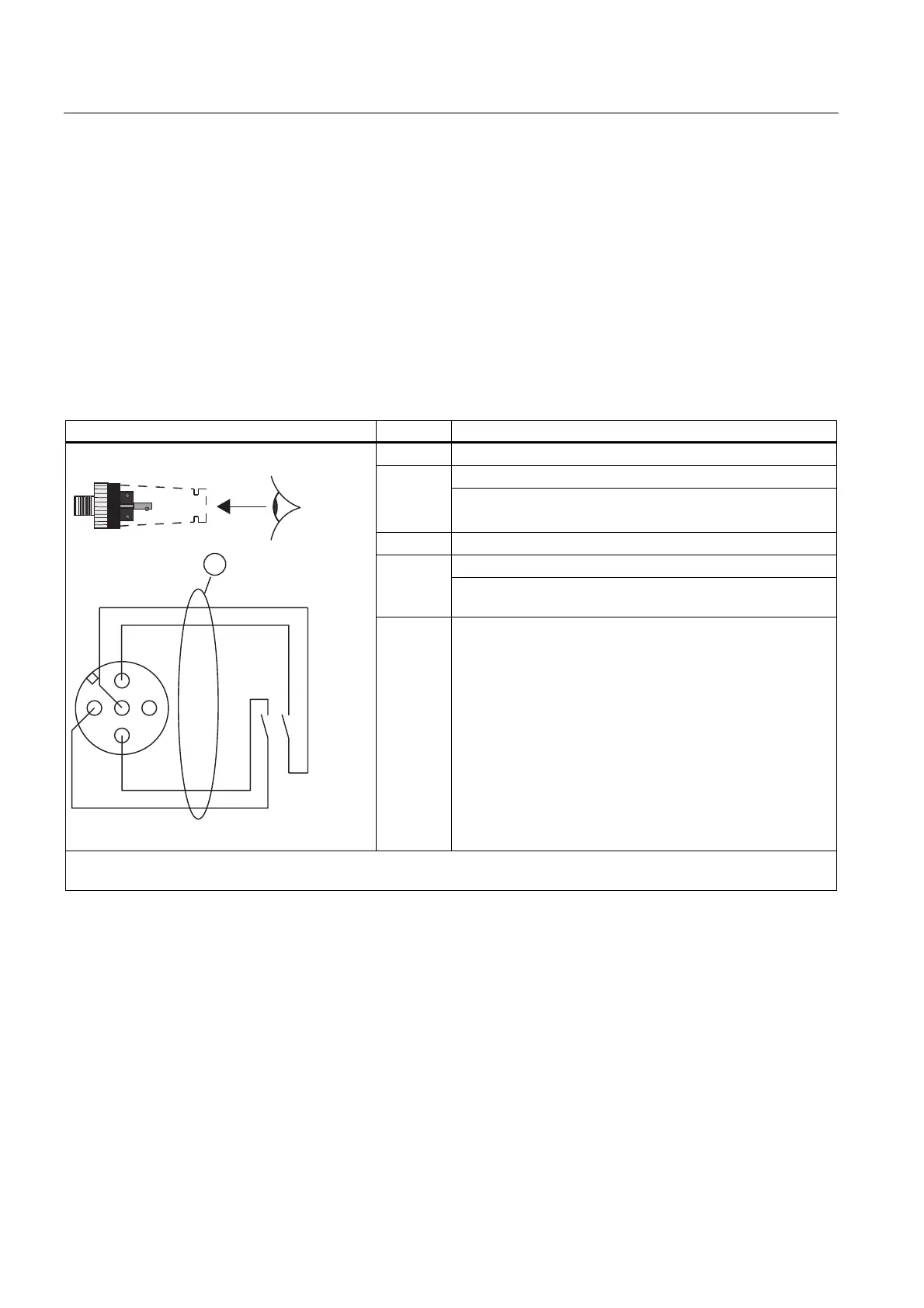

Table 8-20 Terminal Assignment on CM F-IO 2×M12 Connection Module for F-Switch PROFIsafe
Circular connector view Terminal Assignment of X1 to X2
1 Connectors X1 to X2: 24 V sensor supply 1 (Vs1)
2
Input signal: 2
Connector X1: Channel 2
Connector X2: Channel 3
3 Sensor supply ground (1M)
Input signal: 4
Connector X1: Channel 0
Connector X2: Channel 1
5 Connectors X1 to X2: 24 V sensor supply 2 (Vs2)
2
1
3-, 4- or 5-core copper cable
2
Provided by the ET 200pro for the connected sensor
