Fail-Safe Electronic Modules
8.2 4 /8 F-DI/4 F-DO DC24V/2A PROFIsafe Digital Electronic Module
ET 200pro Distributed I/O System - Fail-Safe Modules
Operating Instructions, 05/2007, A5E00394073-02
89
8.2.2 Terminal Assignment of the 4/8 F-DI/4 F-DO DC24V/2A PROFIsafe Electronic
Module
Terminal Assignment on CM IO 12×M12 Connection Module
The following table presents the terminal assignment of the 4/8 F-DI/4 F-DO DC24V/2A
PROFIsafe electronic module on the CM IO 12×M12 connection module.
Sockets X1 to X4 are assigned twice. This enables you to implement a 1oo2 evaluation with
one connecting cable, e.g., channels 0 and 4 at connector X1.

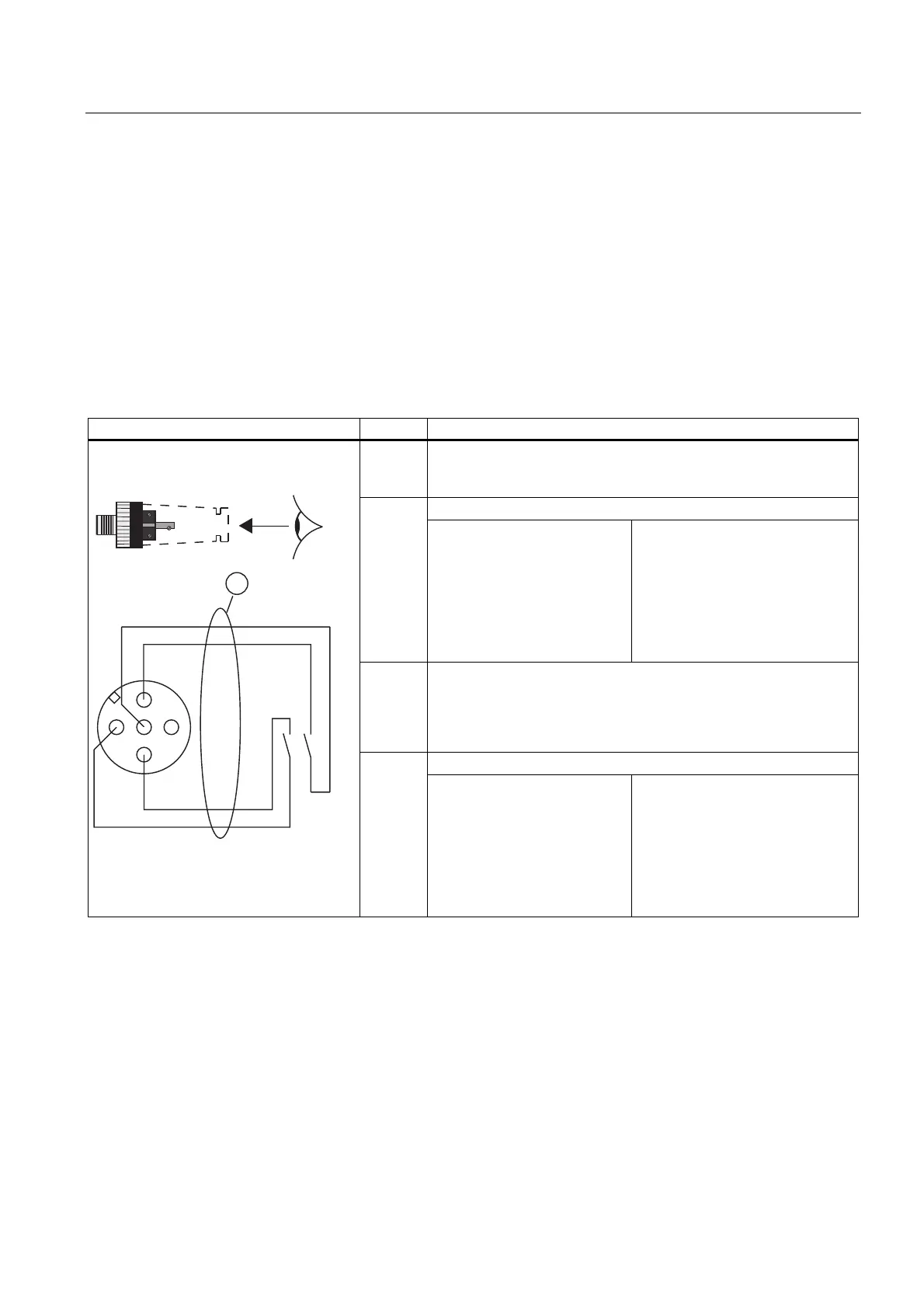

Table 8-16 Terminal Assignment on the CM IO 12xM12 Connection Module for 4/8 F-DI/4 F-DO DC24V/2A PROFIsafe
Circular connector view Terminal Assignment of X1 to X12
1 Connectors X1 to X4: 24 V sensor supply 1 (Vs1)
Connectors X5 to X8: 24 V sensor supply 2 (Vs2)
Connectors X9 to X12: Not assigned
Input signal: 2
Connector X1: Input channel
4
2
Connector X2: Input channel
5
2
Connector X3: Input channel
6
2
Connector X4: Input channel
7
2
Connector X5: Not assigned
Connector X6: Not assigned
Connector X7: Not assigned
Connector X8: Not assigned
Connector X9: Not assigned
Connector X10: Not assigned
Connector X11: Not assigned
Connector X12: Not assigned
3 Connectors X1 to X8: Sensor supply ground (1M)
Connector X9: Output channel M0
Connector X10: Output channel M1
Connector X11: Output channel M2
Connector X12: Output channel M3
Input signal:
Digital inputs
Digital outputs
4
Connector X1: Input channel 0
Connector X2: Input channel 1
Connector X3: Input channel 2
Connector X4: Input channel 3
Connector X5: Input channel 4
Connector X6: Input channel 5
Connector X7: Input channel 6
Connector X8: Input channel 7
Connector X9: Output channel P0
Connector X10: Output channel
P1
Connector X11: Output channel
P2
Connector X12: Output channel
P3
