Fail-Safe Connection Modules
7.3 CM F-IO 2 × M12 Fail-Safe Connection Module for F-Switch PROFIsafe
ET 200pro Distributed I/O System - Fail-Safe Modules
Operating Instructions, 05/2007, A5E00394073-02
53
See also
Properties of the 4/8 F-DI/4 F-DO DC24V/2A PROFIsafe Electronic Module (Page 87)
Block Diagram for the 4/8 F-DI/4 F-DO DC24V/2A PROFIs
afe Electronic Module (Page 91)
7.3 CM F-IO 2 × M12 Fail-Safe Connection Module for F-Switch
PROFIsafe
Order Number
6ES7 194-4DA00-0AA0
Properties
The CM F-IO 2xM12 connection module has the following properties:
● Can be plugged in and screwed to the electronic module
● 2 M12 circular socket connectors
● 2 labels and one module label
Terminal Assignment

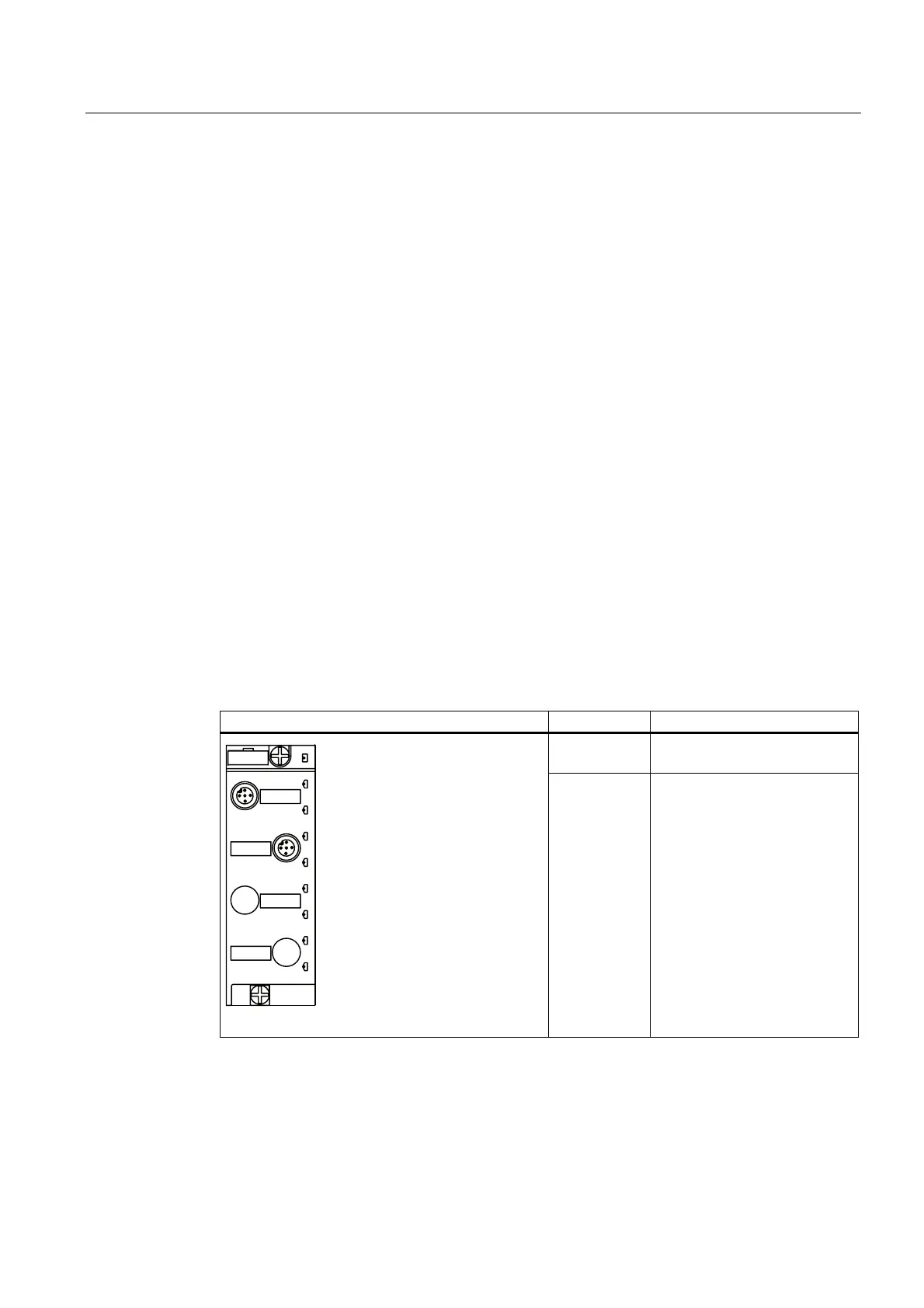

The terminal assignment is shown in the following table.
View Terminal Designation
X1 1. M12 circular socket
connector
6)
9V)
;
;
)
)
/
X2 2. M12 circular socket
connector
