Siemens SIMATIC Operating Instructions

ET 200pro Distributed I/O System - Fail-Safe Modules
Operating Instructions, 05/2007, A5E00394073-02
19
Configuration
2
2.1 Configuration of ET 200pro with Fail-Safe Modules
Introduction
You can configure ET 200pro distributed I/O systems with standard and fail-safe modules.
This chapter presents an example configuration.
Configuration Example for ET 200pro with Fail-Safe Modules
The figure below presents a configuration example with standard and fail-safe modules
within an ET 200pro.
   


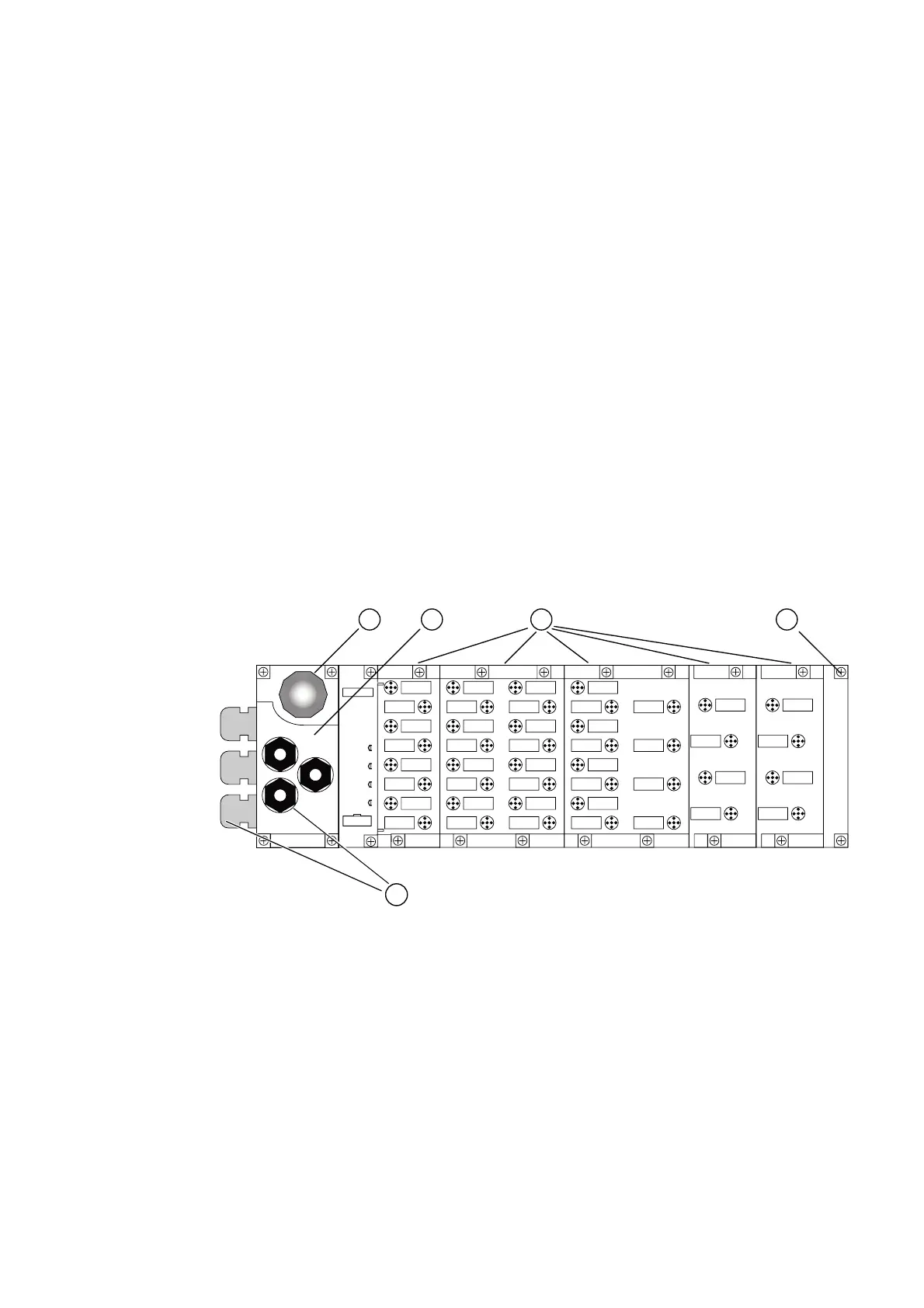

Figure 2-1 Configuration Example for ET 200pro with Fail-Safe Modules
① CM IM DP Direct connection module for the interface module
② IM 154-2 DP HIGH FEATURE (PROFIBUS DP) interface module (6ES7 154-2AA00-0AB0)
IM 154-4 PN HIGH FEATURE (PROFINET IO) interface module (6ES7 154-4AA00-0AB0)
③ Connection modules for the electronic modules
④ Terminating module
⑤ Heavy-gauge threaded joints for cables at the connection module
