Typical circuit diagrams
9.2 DM-F Local, sensor circuits
66
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
DM-F Local, NC and NO contacts, with cross-circuit detection and monitored
start
3UF7320-1A.00-0
● With cross-circuit detection
● NC and NO contacts
● 2-channel
● Sensor input monitored start.

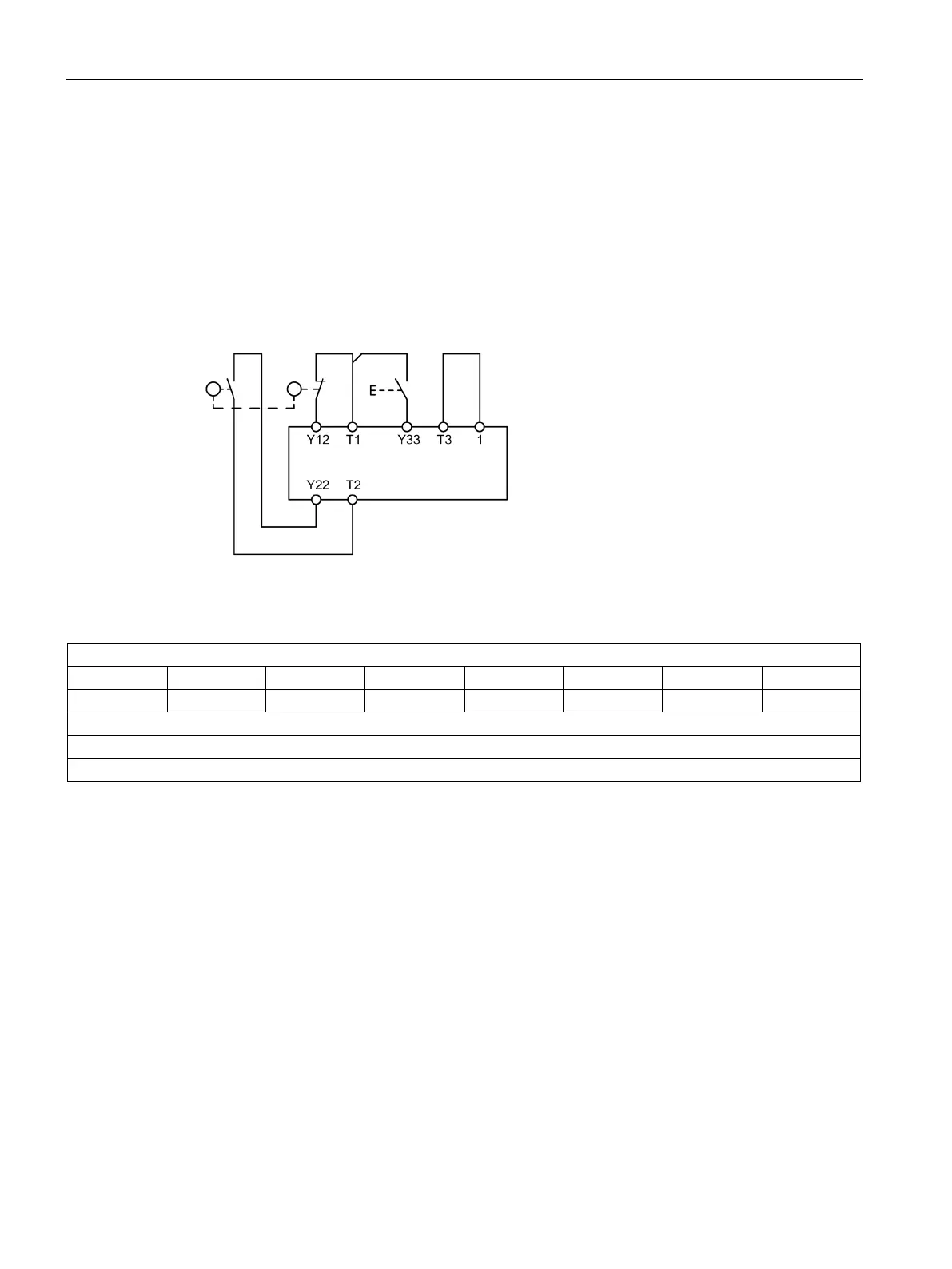

Figure 9-5 Circuit diagram, 3UF7320-1A.00-0 with cross-circuit detection, NC and NO contacts,
2-channel, monitored start
1 2 3 4 5 6 7 8
Safety Integrity Level in accordance with IEC 61508/EN 62061: to SIL 3
Performance Level in accordance with EN ISO 13849-1: PL e
DIP switch settings, 3UF7320-1A.00-0 with cross-circuit detection, NC and NO contacts, 2-channel, monitored start
