SIMODRIVE 611 (PJ)
Power modules
The current specified on the power modules are normalized values, which refer
to all of the control modules. The output currents can be limited by the control
module used. After the control module has been inserted, the retaining screws
of the module front panel must be tightened–up to guarantee a good electrical
connection to the module housing.
Type plate/Order No.
50 mm power module
Control module
(refer to Section 7)
Order No.
M3 / 0.8 Nm
M4 / 1.8 Nm
PE

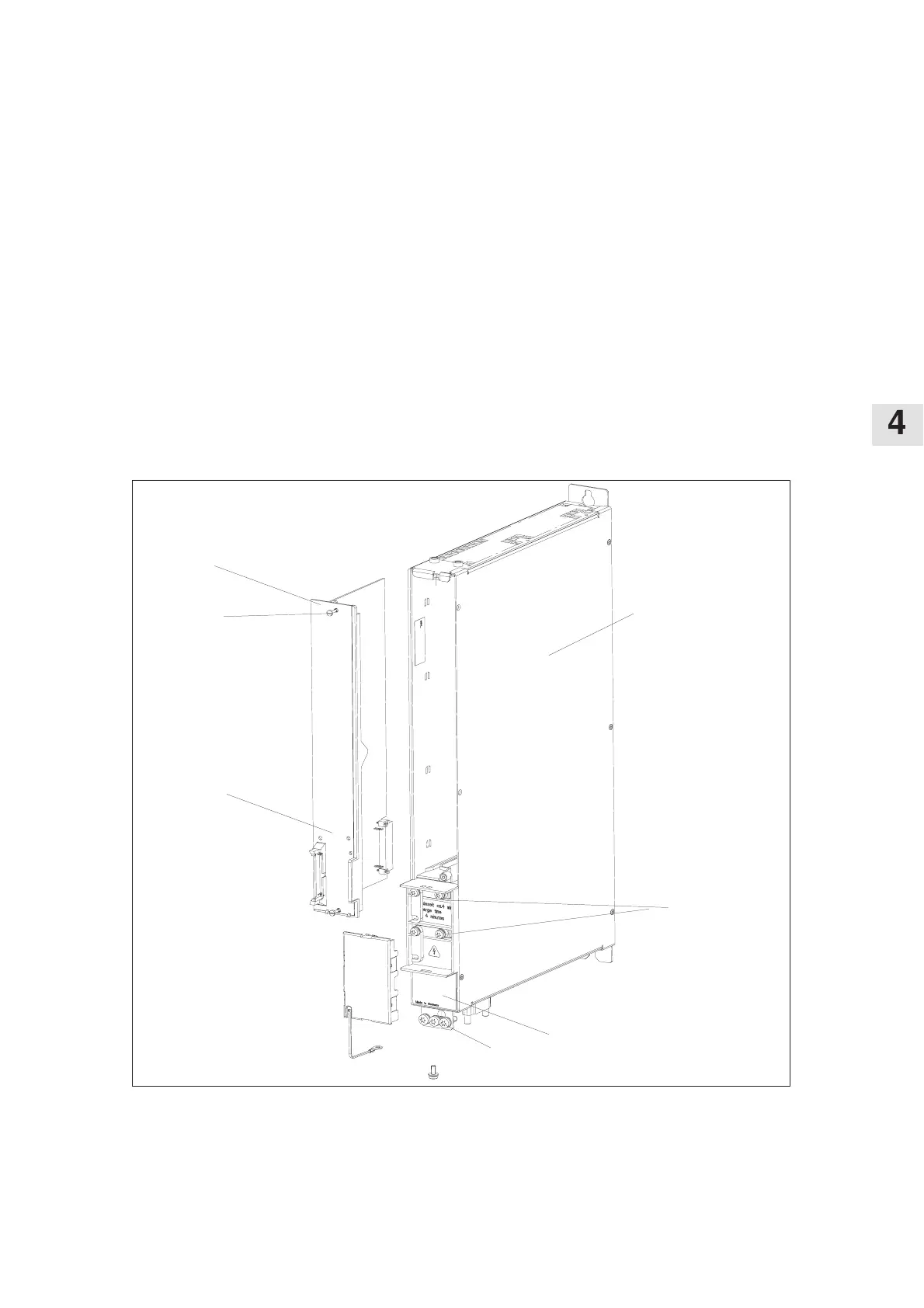

Figure 4-1Power module with control module
Power module, in-
ternal cooling
