6.3 Data sheets and characteristics
1FK2 synchronous motors for SINAMICS S120
76 Configuration Manual, 06/2019, A5E46927724B AB
6.3.1.5
1FK2105-6AF

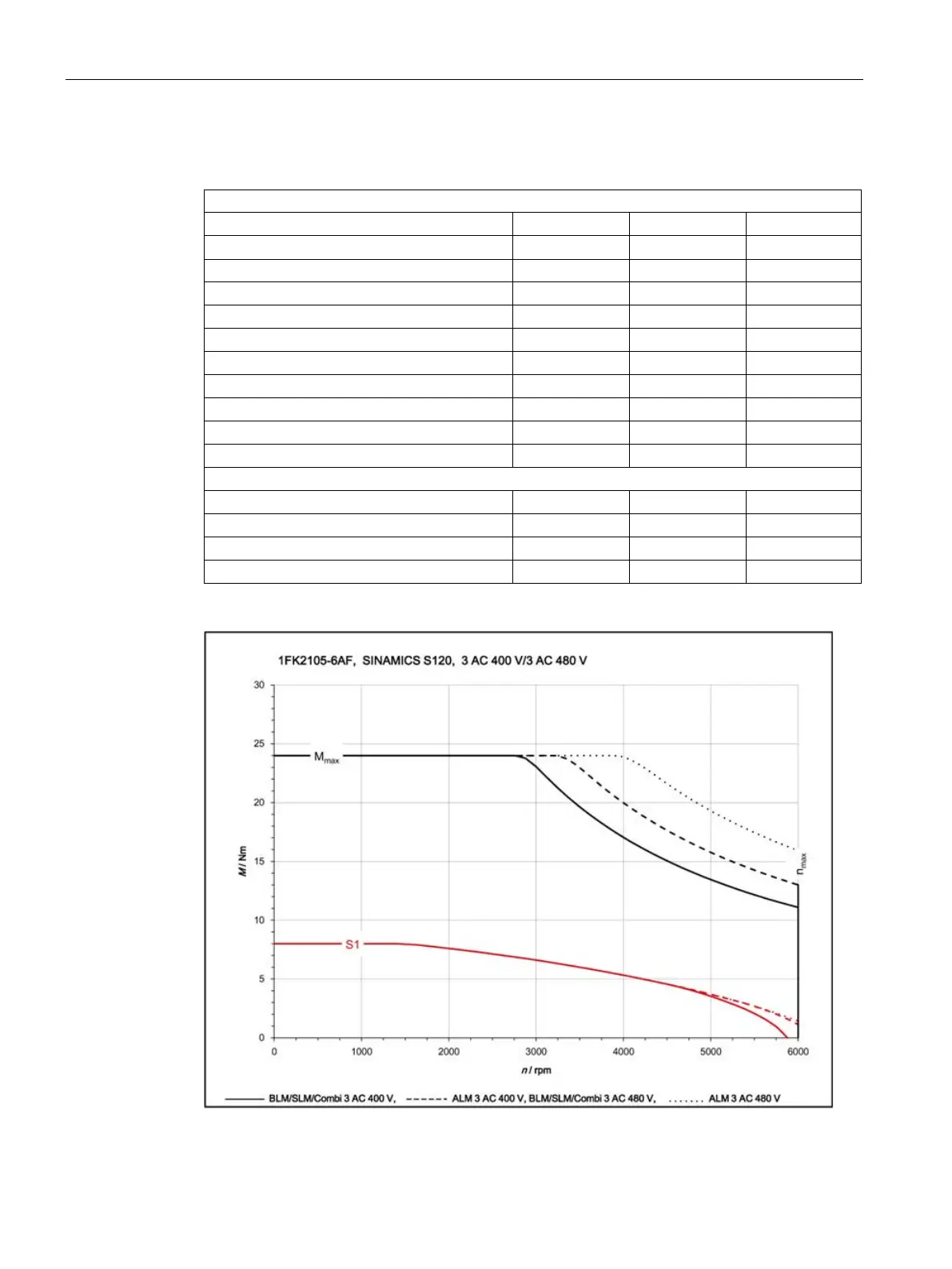

Three-phase servo motor 1FK2105-6AF
Technical specifications in S120 system
Symbol
Unit
Value
Static torque M
0
Nm 8
Stall current
I
0
A
6.7
Maximum permissible speed (at converter)
n
max Inv
rpm
6000
Maximum torque
M
max
Nm
24
Maximum current
I
max
A
24
Thermal time constant
T
th
min
40
Moment of inertia
J
Mot
kg cm
2
2.65
Moment of inertia (with brake)
J
Mot Br
kg cm
2
3.5
Weight
m
Mot
kg
7.7
Weight (with brake)
m
Mot Br
kg
8.7
Rated data with S120, 3 AC 400 V/3 AC 480 V
Rated speed
n
N
rpm
3000
Rated torque
M
N
Nm
6.6
Rated current
I
N
A
5.6
Rated power
P
N
kW
2.1
