Siemens SIMOTION D445-1 User Manual

Supplementary system components
6.4 CBE30-2 Ethernet communication board
SIMOTION D4x5-2
Manual, 02/2012
107
6.4 CBE30-2 Ethernet communication board
6.4.1 Overview
Properties of the CBE30-2
A second PROFINET interface can be implemented for the SIMOTION D4x5-2 DP/PN with
the CBE30-2 Ethernet communication board.
The CBE30-2 cannot be used with the SIMOTION D4x5-2 DP.
The CBE30-2 offers the following functions:
● PROFINET IO controller, I device (also controller and device simultaneously)
● 100 Mbps full duplex / autocrossing
● Supports real-time classes of PROFINET IO:
– RT (real-time)
– IRT (isochronous real-time)
The CBE30-2 has an X1400 interface with an integral 4-port switch based on PROFINET
ASICs ERTEC400.
View
The connections and LED displays are located on the front of the CBE30-2.
)DXOWUHG/('
3RUW
3RUW
3RUW
3RUW
;LQWHUIDFH
$FWLYLW\/('\HOORZIRU
HDFKSRUW
/LQN/('JUHHQIRUHDFKSRUW
6\QFJUHHQ/('

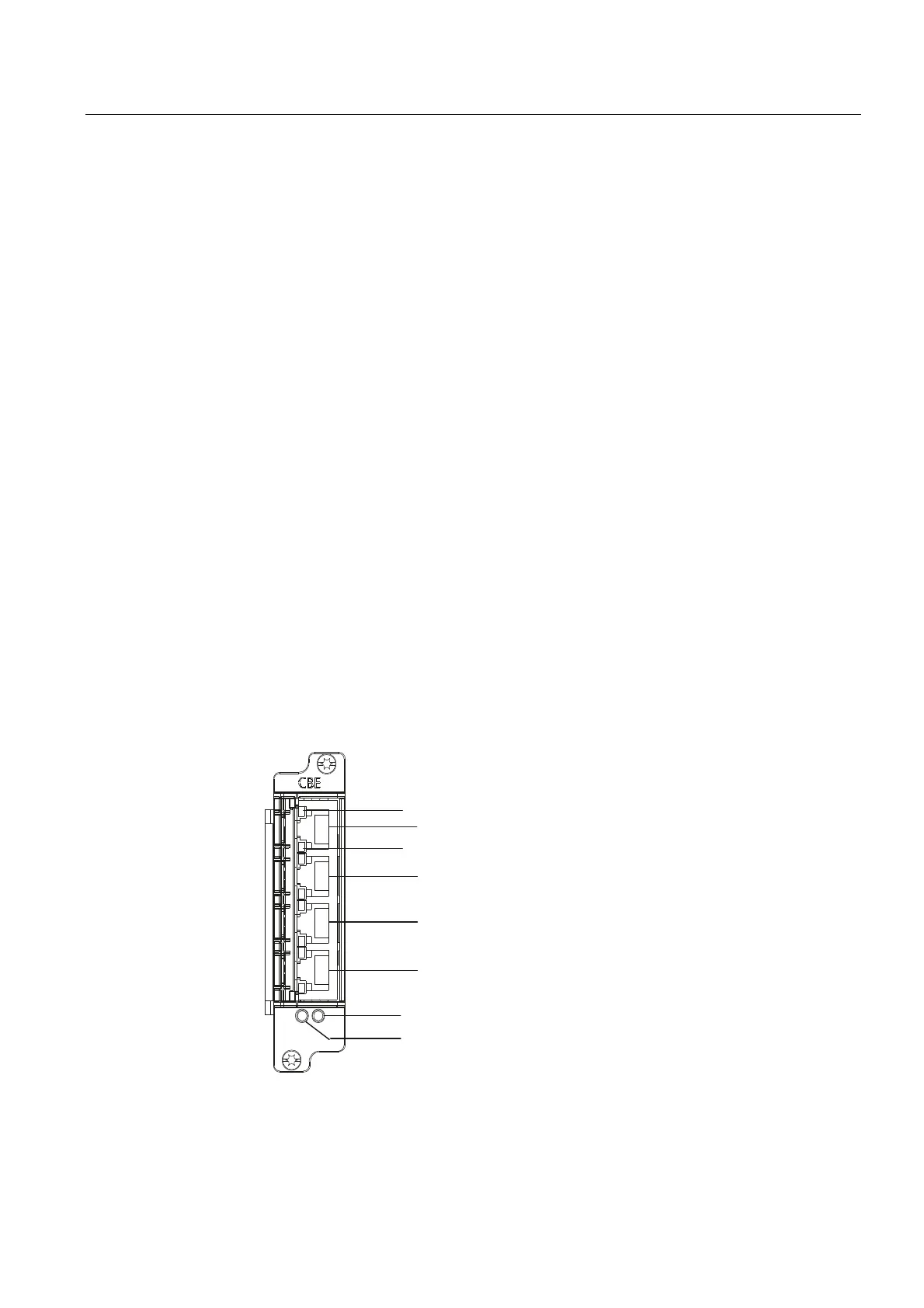

Figure 6-7 CBE30-2 front view
