Technical data of the D4x5-2
4.8 Input and output circuit
SIMOTION D4x5-2
86 Manual, 02/2012
4.8 Input and output circuit
Protective circuit

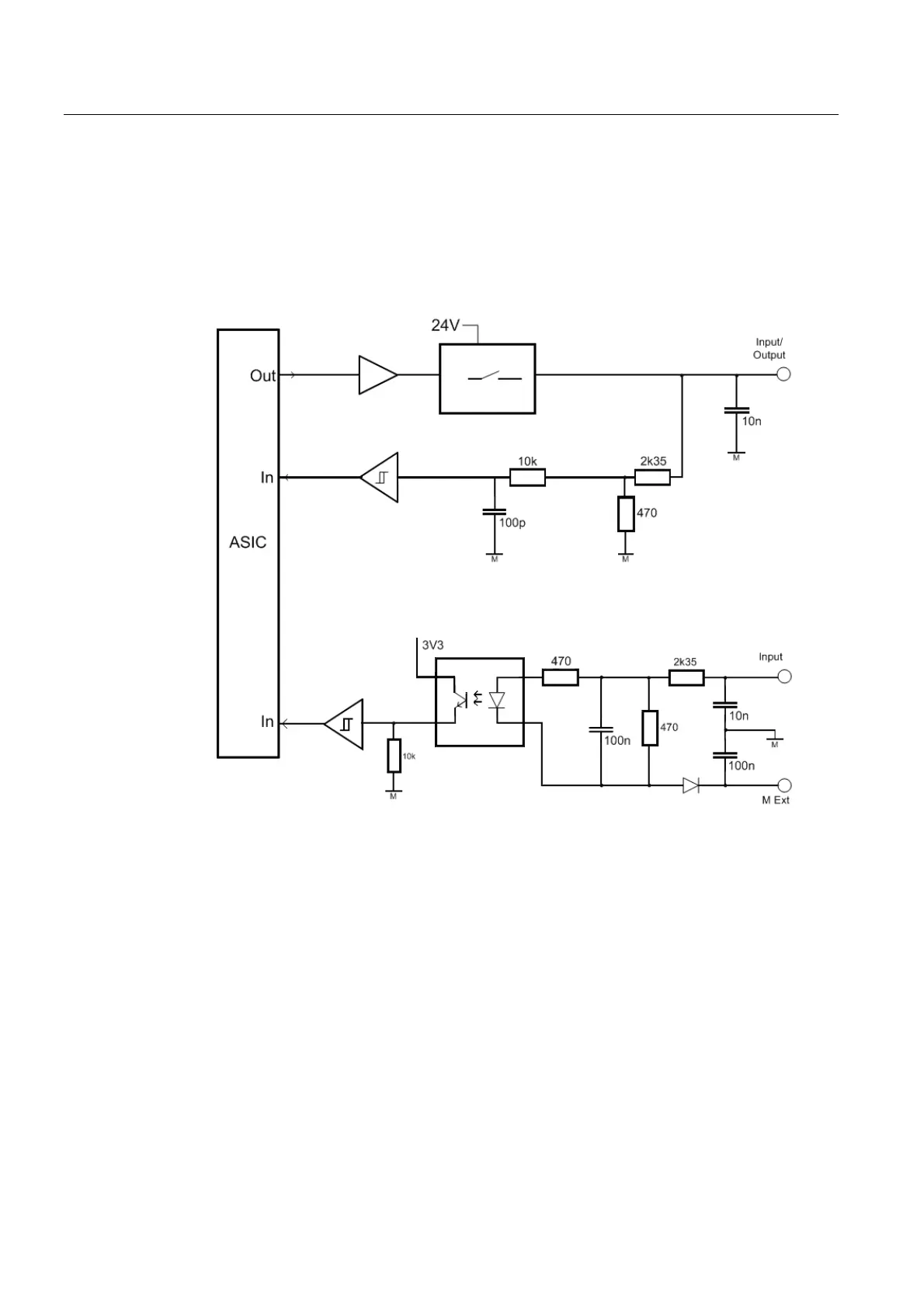

Figure 4-1 SIMOTION D4x5-2/CX32-2 input and output circuits
