Operator control (hardware)
2.2 Operator controls
SIMOTION D4x5-2
Manual, 02/2012
39
2.2 Operator controls
2.2.1 Service and operating mode switch
Properties of the Service switch and mode selector switch
SIMOTION D4x5-2 has two selector switches on the lower front side for selection of the
service functions and operating modes.
The upper selector switch (labelled SVC/NCK) is for the selection of service and diagnostic
functions. In "normal" operation this switch must remain in the 0 position (see figure below).
The lower switch, labelled PLC, is used to set one or more operating modes of the
SIMOTION D4x5-2.
0RGHVHOHFWRUVZLWFK
6HUYLFHVHOHFWRUVZLWFK

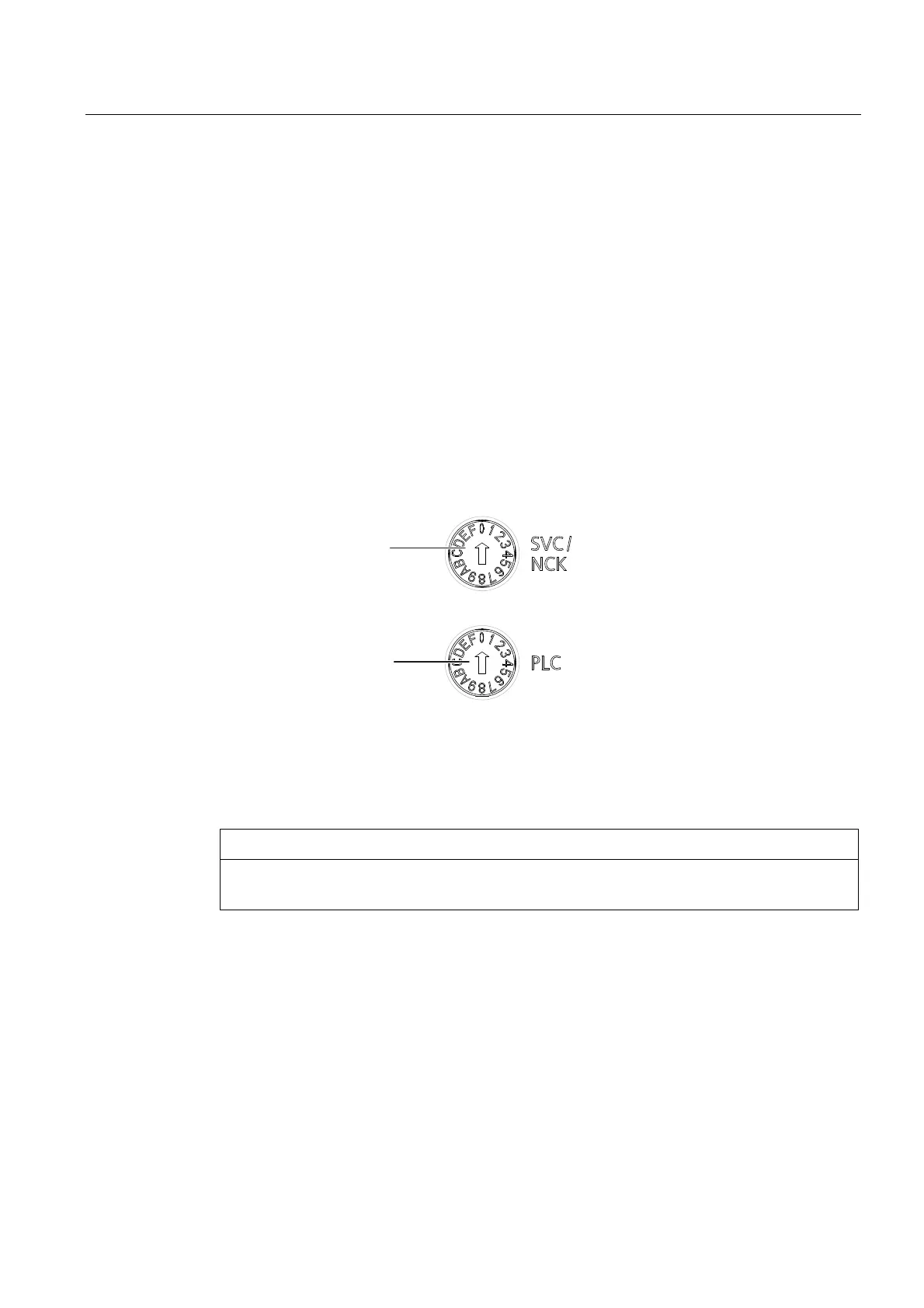

Figure 2-3 Selector switches for service and operating modes of the SIMOTION D4x5-2
CAUTION
Always use an insulated screwdriver to turn the rotary switch. Otherwise, static electricity
can destroy the switch.
