4.10 USB interfaces
The USB interfaces are used for upgrading the SIMOTION D4x5‑2 via a USB stick.
Table 4-20 Interfaces X125 and X135
Characteristics Versions
Connector type Double USB socket – type A
Version USB 2.0
Power supply 5 V (short-circuit proof)
Current carrying capacity 0.5 A per channel
The USB interfaces are located on the front of the SIMOTION D4x5‑2.
86%LQWHUIDFHV
;OHIW
;ULJKW

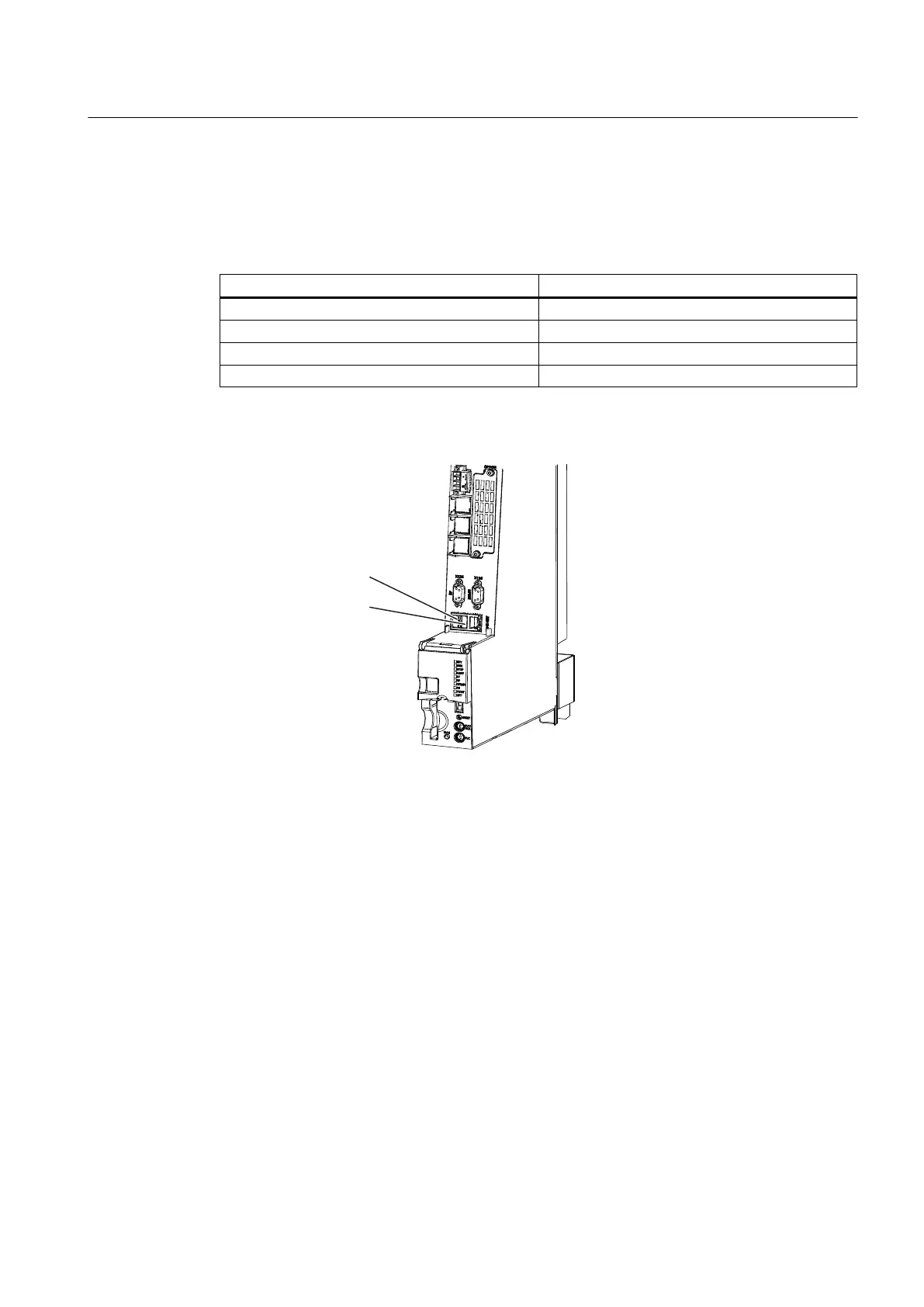

Figure 4-11 The position of the USB X125 and X135 interfaces (example of SIMOTION D4x5-2 DP/
PN)
Interfaces
4.10 USB interfaces
SIMOTION D4x5-2
Manual, 04/2014 75
