Dimension drawings
6
6.1 D425-2 and D435-2 dimension drawing

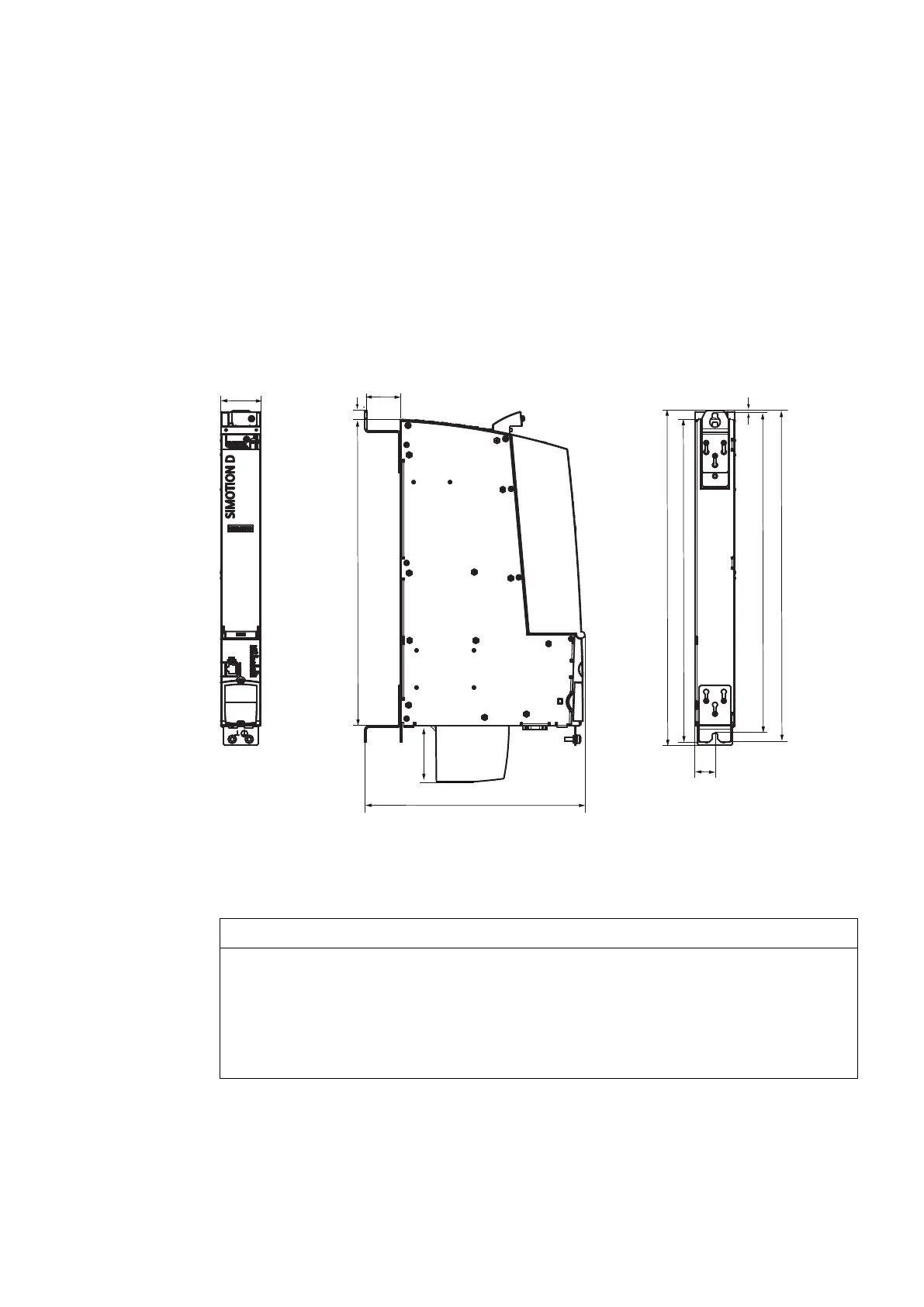

Figure 6-1 D425-2 and D435-2 dimension drawing
SIMOTION D425-2 DP, D425-2 DP/PN, D435-2 DP and D435-2 DP/PN must always be
operated with a double fan/battery module.
NOTICE
Higher operating temperature if ventilation clearances are too small
The 80 mm clearances above and below the components must be observed.
The unit protects itself from overheating by shutting down.
The
ventilation clearance is measured from the lower edge of the module, i.e. the fan/battery
module is not included in the dimension.
SIMOTION D4x5-2
Manual, 04/2014 91
