Siemens SINUMERIK 808D Installation Manual

Connecting
3.3 Connecting the interfaces on the PPU
Electrical Installation Manual
Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0
19
3.3
Connecting the interfaces on the PPU
3.3.1
Digital input interfaces - X100, X101, X102
Type Mini Combicon 10-pin
Cable Max. length: 10 m
Max. cross-section:
One cable per connection: ≥ 0.5 mm2
Inputs Permissible level (including ripple)
High level: 18 V - 30 V
Low level: -3 V - +5 V

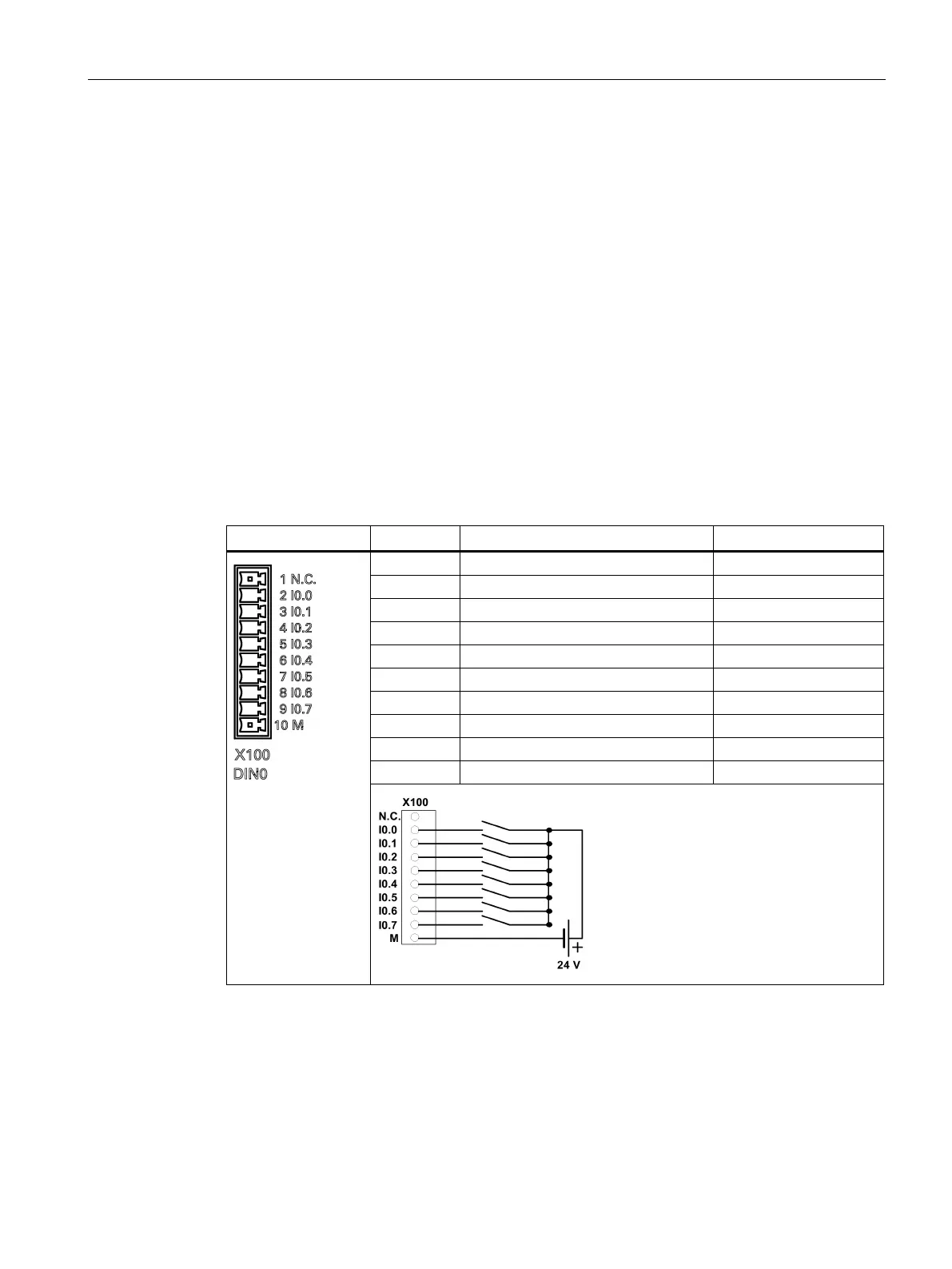

Table 3- 1 Pin assignment of X100 (DIN0)
Illustration
Pin
Signal
Comment
1 N.C. Not assigned
2 I0.0 Digital input
3 I0.1 Digital input
4 I0.2 Digital input
5 I0.3 Digital input
6 I0.4 Digital input
7 I0.5 Digital input
8 I0.6 Digital input
9 I0.7 Digital input
10 M External ground
