Siemens SINUMERIK 808D Installation Manual

Connecting
3.3 Connecting the interfaces on the PPU
Electrical Installation Manual
38 Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0

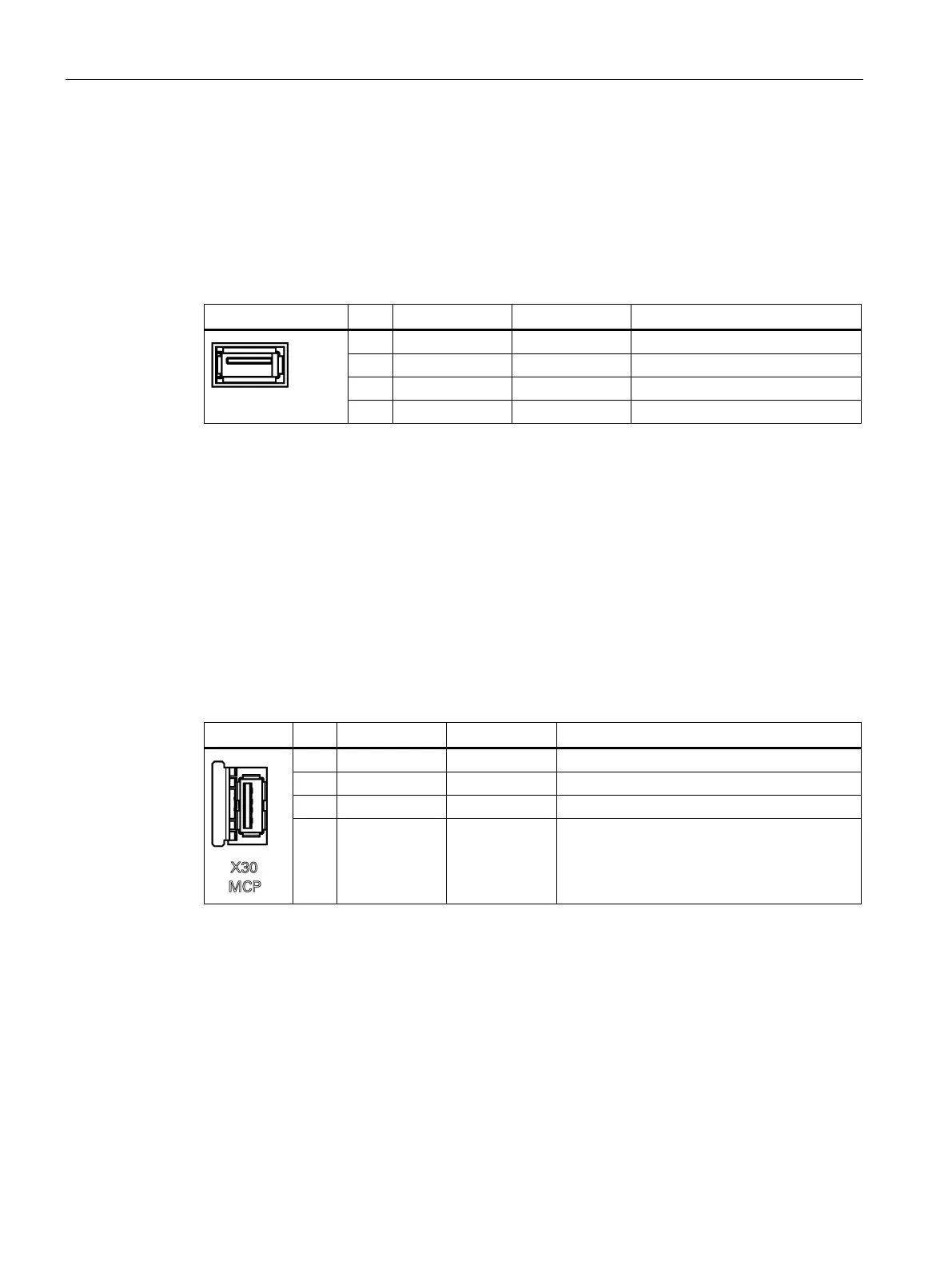

3.3.11
USB interface on the front cover of the PPU
Type USB socket, type A
Cable Type: USB1.1 cable
Max. length: 3m
Illustration
Pin
Signal name
Signal type
Comment
1 P5_USB0 VO 5V power supply
2 DM_USB0 I/O USB data-
3 DP_USB0 I/O USB data+
4 M VO Ground
3.3.12
USB interface - X30
There is a USB interface at the back cover of the PPU. This USB interface is used for
connection with the MCP.
Type USB socket, type A Combicon 7-pin
Cable Type: USB cable
Max. length: 0.5 m
Table 3- 14 Pin assignment of X30 (MCP)
Illustration
Pin
Signal name
Signal type
Comment
1 P5_USB0 VO 5V power supply
2 DM_USB0 I/O USB data-
3 DP_USB0 I/O USB data+
4 M VO Ground
