Connecting
3.3 Connecting the interfaces on the PPU
Electrical Installation Manual
Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0
35
Spindle encoder interface - X60
Type Sub-D, 15-pin, female
Cable Type: encoder cable
Max. length: 10m

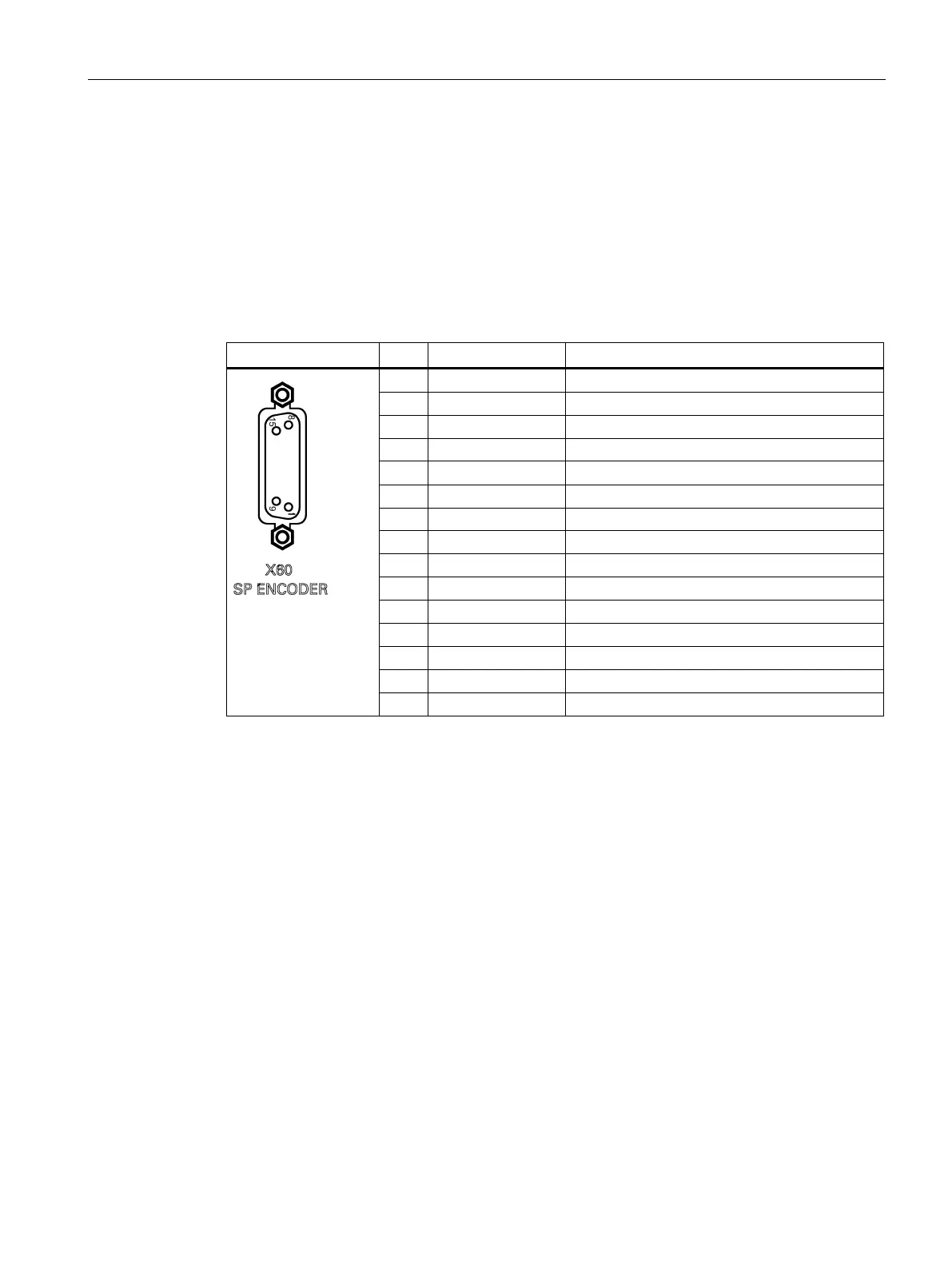

Table 3- 11 Pin assignment of X60 (SP ENCODER)
1 - Not assigned
2 - Not assigned
3 - Not assigned
4 +5V +5 V power supply
5 - Not assigned
6 +5V +5 V power supply
7 M Ground
8 - Not assigned
9 M Ground
10 Z Zero mark
11 Z_N Zero mark, negative
12 B_N Track B, negative
13 B Track B
14 A_N Track A, negative
15 A Track A
